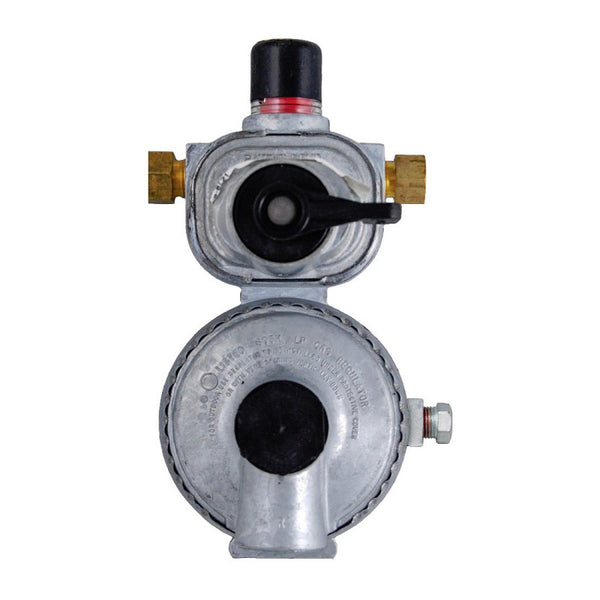

Marshall Excelsior Propane Regulator (MPN: MEGR-253P)

Reliable two-stage propane regulator for efficient gas flow management.

The Marshall Excelsior Propane Regulator is designed for optimal performance in low-pressure applications. This two-stage regulator features a 1/4 inch female inverted flare inlet and a 3/8 inch FNPT outlet, capable of handling up to 225,000 BTU in the first stage and 150,000 BTU in the second stage. Constructed from die-cast zinc and coated with a zinc powder finish, it ensures durability and resistance to corrosion.

This regulator includes an automatic changeover feature that seamlessly redirects LP gas vapor flow from an empty service cylinder to a reserve cylinder, ensuring uninterrupted service. It meets UL, RVIA, and NFPA requirements, making it a reliable choice for various applications. The easy-to-read green indicator provides a visual cue for gas levels, changing to red when the service cylinder requires refilling.

Designed for vertical installation, this regulator is manufactured in the USA and is RV approved, making it suitable for recreational vehicles and other low-pressure gas systems. The internal relief spring-loaded diaphragm type enhances safety and performance, ensuring efficient gas regulation.

Features

• Automatic Changeover Regulator Automatically Redirects LP Gas Vapor Flow From An Empty Service Cylinder To A Reserve Cylinder, Without Interruption Of Service
• Meet UL, RVIA And NFPA Requirements
• Made In The USA
• Features An Easy To Read Green Indicator Which Changes To Red When The Service Cylinder Needs To Be Refilled

Specifications

• Manufacturer: Marshall Excelsior
• Manufacturer Part Number: MEGR-253P
• Pressure: Low Pressure
• RV Approved: Yes
• Inlet Connection: 1/4 Inch Female Inverted Flare
• Outlet Connection: 3/8 Inch Female Threads
• Installation Type: Vertical
• Outlet Pressure: 11 Inch WC
• Number Of Stages: 2
• BTU Level: 225,000 BTU
• Material: Die-Cast Zinc
• With Shut Off Valve: No
• With Hose: No
