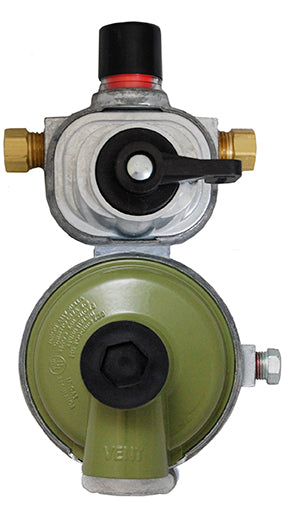

Marshall Excelsior Propane Regulator (MPN: MEGR-253HP)

Reliable two-stage propane regulator for efficient gas flow management.

The Marshall Excelsior Propane Regulator is designed for optimal performance in managing propane gas flow. This two-stage regulator features a 1/4 inch female inverted flare inlet and a 3/8 inch FNPT outlet, capable of handling up to 350,000 BTU in the first stage and 200,000 BTU in the second stage. Constructed from die-cast zinc and coated with a zinc powder finish, it ensures durability and resistance to corrosion.

This regulator includes an automatic changeover feature that seamlessly redirects LP gas vapor flow from an empty service cylinder to a reserve cylinder, ensuring uninterrupted service. It meets UL, RVIA, and NFPA requirements, making it a reliable choice for various applications. The easy-to-read green indicator provides a visual cue for gas levels, changing to red when a refill is necessary.

Designed for vertical installation, this low-pressure regulator is RV approved and does not include a hose or shut-off valve. The internal relief spring-loaded diaphragm type enhances safety and efficiency, making it suitable for both residential and commercial use.

Features

• Automatic Changeover Regulator Automatically Redirects LP Gas Vapor Flow From An Empty Service Cylinder To A Reserve Cylinder, Without Interruption Of Service
• Meet UL, RVIA And NFPA Requirements
• Made In The USA
• Features An Easy To Read Green Indicator Which Changes To Red When The Service Cylinder Needs To Be Refilled

Specifications

• Manufacturer: Marshall Excelsior
• Manufacturer Part Number: MEGR-253HP
• Pressure: Low Pressure
• RV Approved: Yes
• Inlet Connection: 1/4 Inch Female Inverted Flare
• Outlet Connection: 3/8 Inch Female Threads
• Installation Type: Vertical
• Outlet Pressure: 11 Inch WC
• Number Of Stages: 2
• BTU Level: 350,000 BTU
• Material: Die-Cast Zinc
• With Shut Off Valve: No
• With Hose: No
