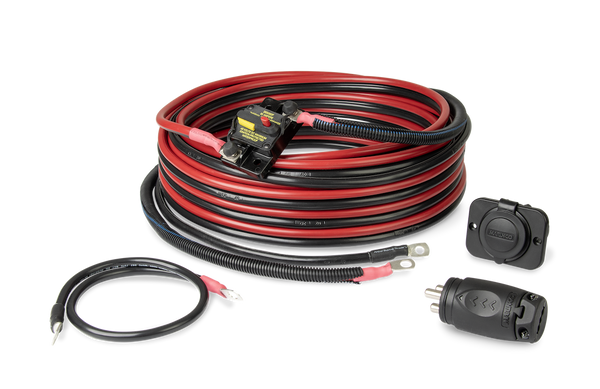

Marinco Trolling Motor Wiring Kit (MPN: 24VWKS3)

Efficiently connect two 12 volt batteries for 24 volt systems.

The Marinco Trolling Motor Wiring Kit is designed to facilitate the connection of two 12 volt batteries in series, enabling the operation of 24 volt trolling motors. This kit includes a 44 foot 6/2 AWG bonded cable, ensuring durability and ease of routing during installation. The pre-terminated connections simplify the setup process, allowing for quick and efficient installation without the need for additional tools or expertise.

Included in the kit are high-quality components such as the Blue Sea 285 Series Circuit Breaker and Marinco trolling motor plug and receptacle, which provide reliable performance and safety. The kit also features jumper cables to assist in connecting the batteries in series, making it a comprehensive solution for marine electrical needs. With clear instructions and color-coded wiring, users can achieve a professional-grade installation with confidence.

This wiring kit is compatible with 24 volt trolling motors and is semi-universal, making it suitable for a variety of applications. The inclusion of Ancor lugs and heat shrink tubing further enhances the reliability of the connections, ensuring a secure and long-lasting setup. Overall, the Marinco Trolling Motor Wiring Kit is an essential tool for any boating enthusiast looking to optimize their trolling motor performance.

Features

• Pre-Terminated Connections For Quick And Easy Installation
• Bonded Cable For Ease Of Routing
• Ancor Lugs And Heat Shrink Tubing
• Features Jumper To Put Batteries In Series

Specifications

• Manufacturer: Marinco
• Manufacturer Part Number: 24VWKS3
• Compatibility: 24 Volt Trolling Motor
• Universality: Semi-Universal
• Includes: With 44 Foot 6/2 AWG Bonded Cable/ 285 Series Circuit Breaker/ Trolling Motor Plug And Receptacle

Technical Documents

• Marinco_Trolling_Motor_Wiring_Kit_Sell_Sheet__low_res_pdf_65102.pdf
• 24VWKS3_bulletin.pdf
