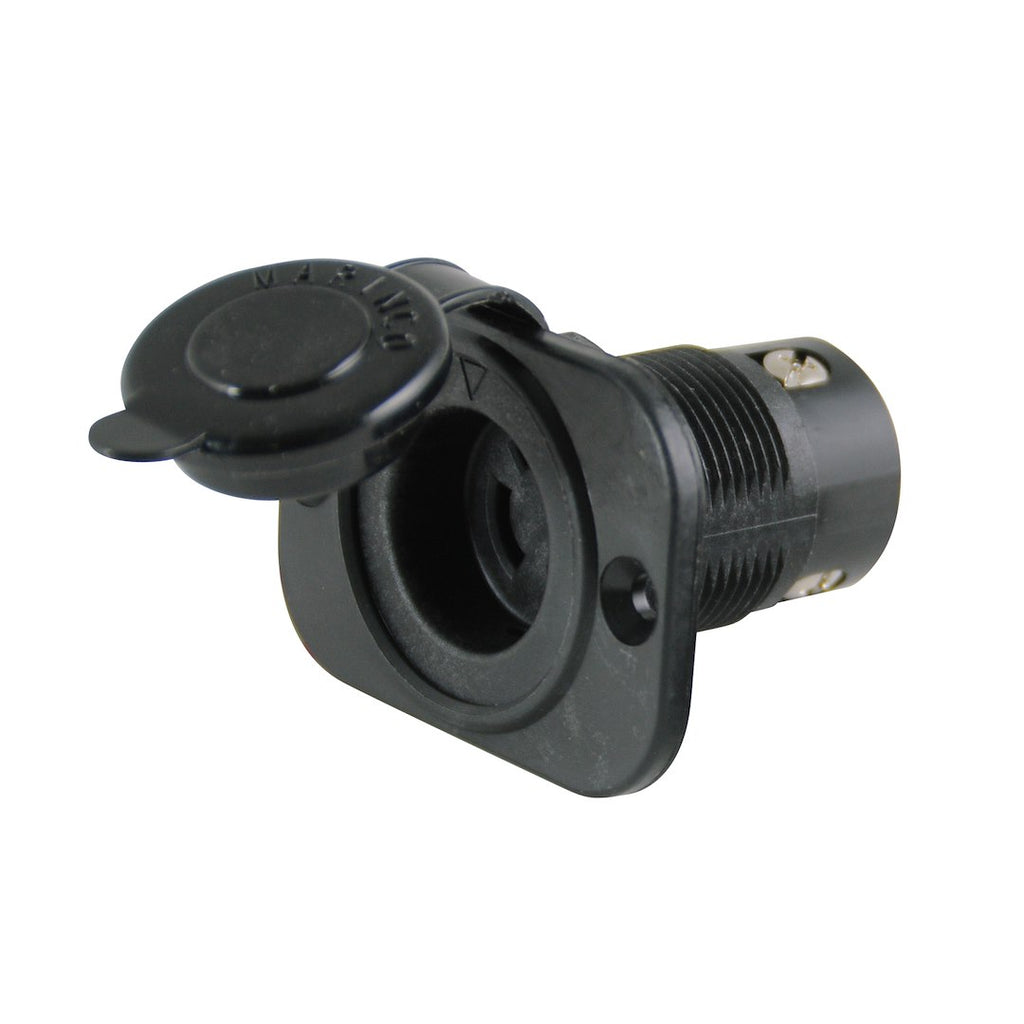

Marinco Trolling Motor Charging Plug (MPN: 12VCP)

Advanced connection system for reliable trolling motor performance.

The Marinco trolling motor charging plug and receptacle system offers a robust solution for DC connections in trolling motors. Designed to support 12 Volt, 24 Volt, and 36 Volt systems, this system features a superior electric current carrying capacity that minimizes power loss and enhances battery life. The locking plug and receptacle utilize a spring clamping connection, ensuring a secure electrical contact that withstands the rigors of marine environments.

Constructed from durable nylon, the Marinco system is corrosion resistant and weatherproof, making it suitable for various outdoor conditions. The design includes a watertight sealing cap and a water resistant plug cover, providing additional protection against moisture. Installation is straightforward, with options for front panel or rear mounting, accommodating a 1-1/8 inch diameter hole in the mounting plate.

With a maximum rating of 40 Amps, this system is engineered for reliability and efficiency. The inclusion of Perma-Lock screw terminals ensures a stable connection, further enhancing the overall performance of your trolling motor setup. The Marinco trolling motor charging plug is an essential component for those seeking dependable and efficient power connections.

Features

• Superior Electric Current Carrying Capacity Of The ConnectPro System Eliminates Problems That Rob Motors Of Power And Reduce Battery Life
• Features A Locking Plug And Receptacle With A Spring Clamping Connection That Provides A Secure Electrical Contact
• Corrosion Resistant
• Easy To Install

Specifications

• Manufacturer: Marinco
• Manufacturer Part Number: 12VCP
• Type: Receptacle
• Voltage Rating: 12 Volt/ 24 Volt/ 36 Volt
• Ampere Rating: 40 Amp
• Color: Black
• Material: Nylon
• Weatherproof: Yes
• With O-Ring: Yes
• With Perma-Lock Screw Terminals: Yes
• With Mounting Plate: Yes

Technical Documents

• 12VCP_TCHDAT_wiring.pdf
