Advanced control module for N2KView software with versatile connectivity options.

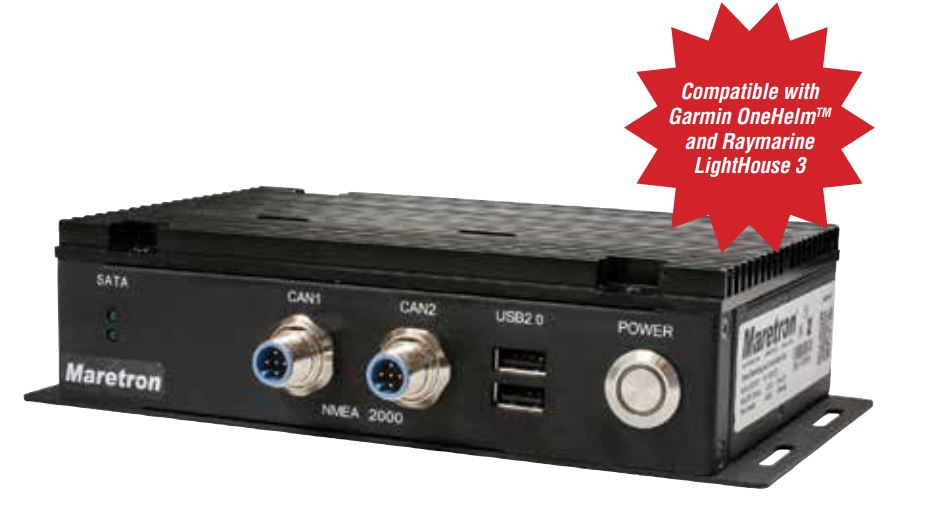

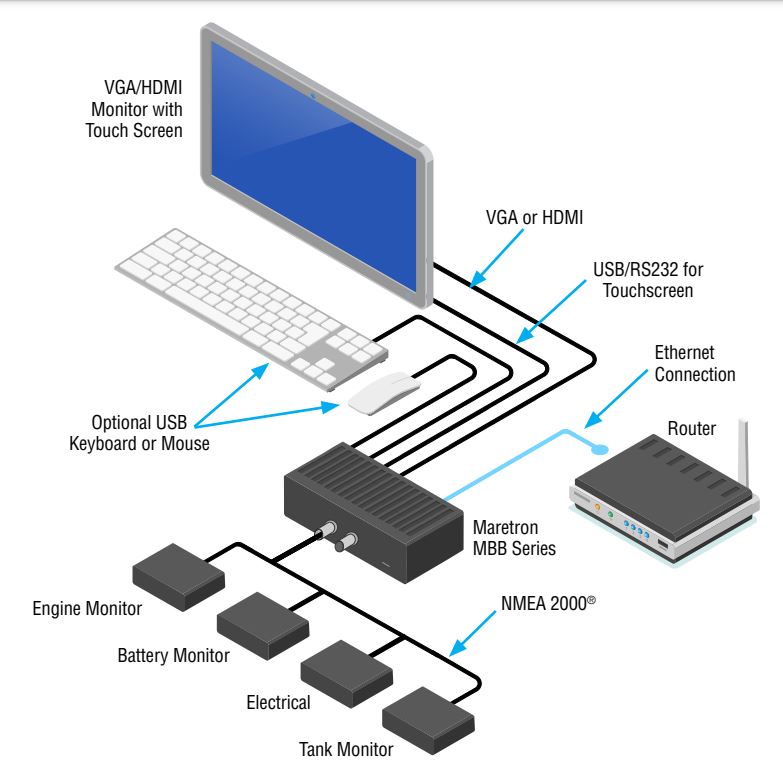

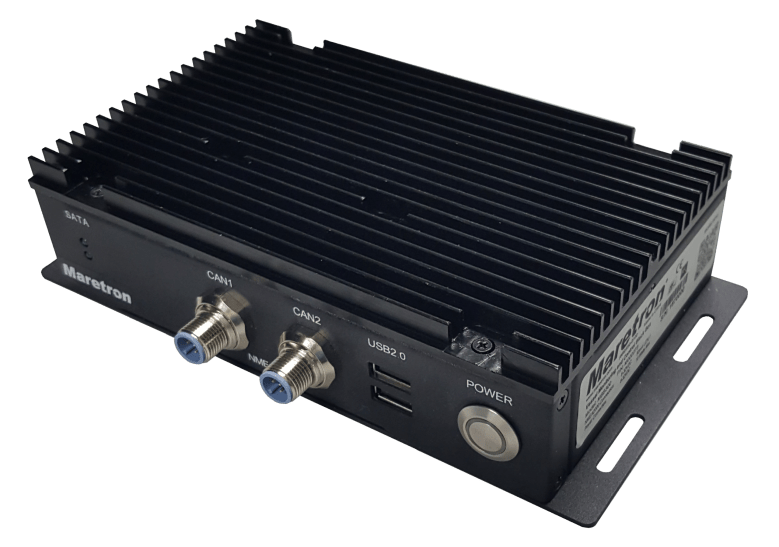

The Maretron Vessel Monitoring System Control Module is engineered for robust performance in marine environments, providing seamless integration with N2KView software. This control module supports a wide operating voltage range of 9 to 36 volts DC and consumes only 10 watts of power, making it efficient for various applications. It features multiple connection options including VGA, HDMI, USB 3.0, USB 2.0, RS232, CAN, and RJ45 Ethernet ports, allowing for flexible connectivity with user-supplied peripherals such as monitors, touchscreens, and input devices.
Designed with dual optically-isolated CAN bus connectors, the module facilitates direct connections to NMEA 2000 networks, ensuring reliable data transmission. The solid-state disk drive enhances performance and durability, while the aluminum front panel provides added protection against harsh marine conditions. With dimensions of 8.02 inches in length, 5.21 inches in width, and 1.91 inches in height, this compact module is easy to install using the VESA mount.
The Maretron Control Module is NMEA 2000 approved and certified by FCC and CE, ensuring compliance with industry standards. It comes preinstalled with the full version of N2KView software, offering users the ability to customize their display screens and receive free software upgrades as new features are released. Proper installation and configuration are essential for optimal performance, and users are encouraged to follow the provided guidelines.
Features
- Full Version Of N2KView Software Preinstalled
- Wired Ethernet Interface
- Dual Optically-Isolated CAN Bus Connectors For Direct NMEA 2000 Connection
- Supports User-Supplied VGA Or HDMI Monitor
- Supports User-Supplied Touchscreen
- Supports User-Supplied Mouse And Keyboard
- Operates On 9 To 36 Volt DC
- 10 Watt Power Consumption
- Solid State Disk Drive
Specifications
- Manufacturer: Maretron
- Manufacturer Part Number: MBB300C-01
- Mounting Type: VESA Mount
- Connection Type: VGA/ HDMI/ USB 3.0/ USB 2.0/ RS232 Serial Connector/ CAN Port/ RJ45 Ethernet Port Connections
- Voltage: 9 To 36 Volt
- Power Consumption: 80 Milliamp
- Color: Black
- Material: Aluminum

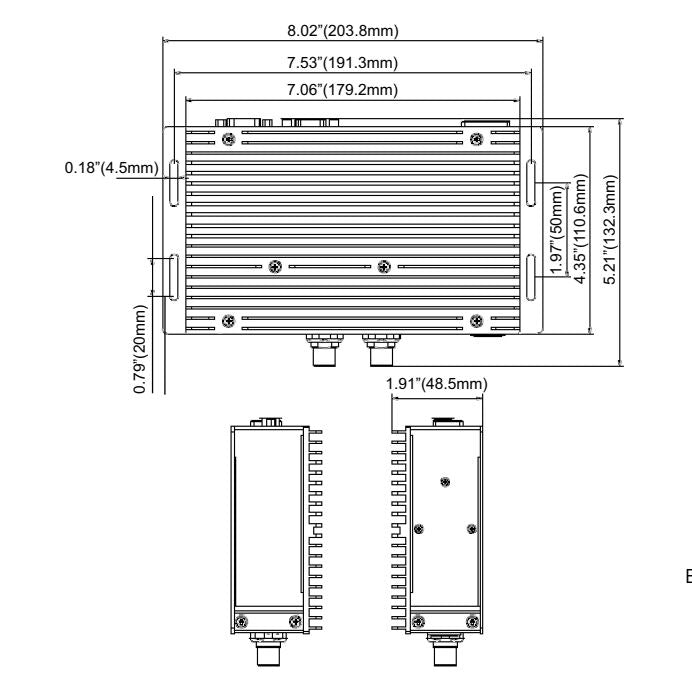

- Dimensions: 8.02 Inch Length x 5.21 Inch Width x 1.91 Inch Height
- Operating Temperature: -25 To 70 Degree Celsius
- Certification: NMEA 2000 Approved/ FCC Certified/ CE Certified
- Includes: With 3-Pin Power Connector And USB Flash Drive
