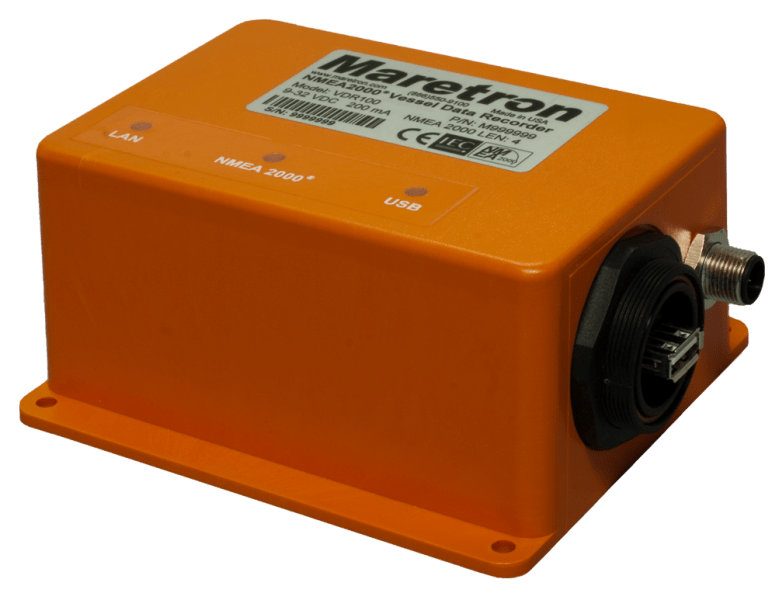

Maretron Vessel Data Recorder (MPN: VDR100-01)

Efficiently capture and analyze NMEA 2000 network data.

The Maretron Vessel Data Recorder is designed to capture and record messages transmitted from every product interconnected on a vessel's NMEA 2000 network. Operating within a voltage range of 9 to 32 volts DC, this device features a low power consumption of up to 200 milliamperes, making it suitable for various marine applications. With an IP67 waterproof rating, it ensures reliable performance in harsh marine environments, while its compact dimensions of 5 inches in length, 4.5 inches in width, and 2.3 inches in height allow for easy installation.

This recorder utilizes a USB flash drive for data storage, enabling users to perform detailed statistical analysis using Maretron's N2KExtractor software. The device supports multiple connection types, including DeviceNet Micro-C, USB 2.0, USB Type A, and RJ-45 Ethernet, facilitating seamless integration into existing systems. The circular buffer feature preserves the latest recorded data, ensuring that critical information is always available for performance analysis, vessel tracking, and preventive maintenance.

With the ability to access recorded data over a 10/100 Mbps Ethernet LAN, users can easily monitor and analyze their vessel's performance remotely. The Maretron Vessel Data Recorder is an essential tool for any marine professional looking to enhance system diagnosis and performance analysis.

Features

• NMEA 2000 Interface
• Records All NMEA 2000 Network Activity For System Diagnosis And Performance Analysis
• Can Be Used Along With Maretron’s N2KExtractor Software To Perform Basic Graphical Analysis And Detailed Statistical Analysis Using Microsoft Excel Or Similar Software
• Data Recorded On Solid State Memory Via Removable USB Flash Drive
• Circular Buffer Preserves Latest Recorded Data While Oldest Data Overwritten When Memory Is Full
• Recorded Data Available For Performance Analysis, Vessel Tracking, Preventive Maintenance, And More
• 10/100 Mbps Ethernet LAN Interface For Accessing Recorded Data From A LAN Connected PC Running N2KExtractor

Specifications

• Manufacturer: Maretron
• Manufacturer Part Number: VDR100-01
• Used To: Record Messages Transmitted From Every Product Interconnected On Vessel NMEA 2000 Network
• Connection Type: DeviceNet Micro-C/ USB 2.0/ USB Type A/ RJ-45 Ethernet
• Voltage: 9 To 32 Volt
• Power Consumption: 200 Milliamp
• Media Storage Capacity: 471.75 Megabyte For 1 Minute/ 29 Megabyte For 1 Hour
• Color: Orange

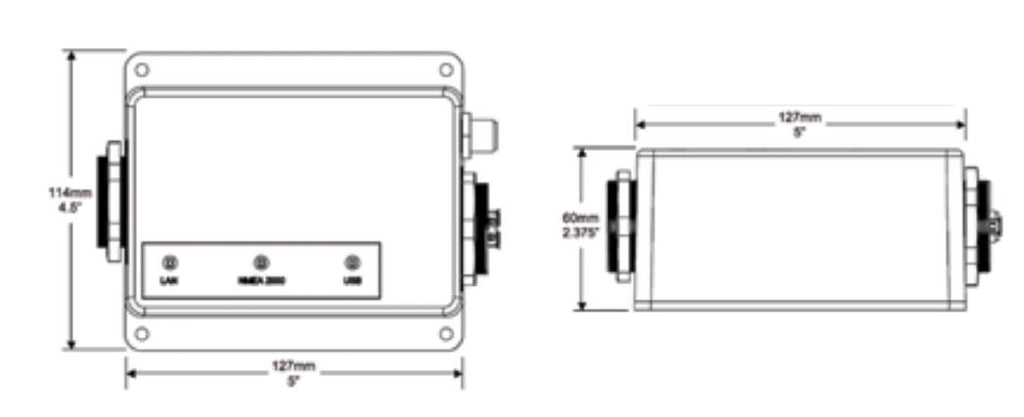

• Dimensions: 5 Inch Length x 4-1/2 Inch Width x 2.3 Inch Height
• Operating Temperature: -25 To 55 Degree Celsius
• Waterproof Rating: IP67 Rated
• Includes: With 16 GB USB Flash Drive/ USB Flash Drive Cover/ 4 Stainless Steel Mounting Screws

Technical Documents

• VDR100UM_1.2.pdf
• VDR100_Datasheet.pdf
