Accurate temperature measurement for diverse applications in marine environments.
The Maretron Temperature Sensor Monitor is engineered to measure temperature across up to six probes, integrating seamlessly with NMEA 2000 networks. It features four channels for thermistor probes and two channels for high-temperature thermocouple probes, allowing for versatile applications such as monitoring cabin air, engine room temperatures, and exhaust gas temperatures. This device operates efficiently within a voltage range of 9 to 32 volts DC and consumes a maximum of 50 milliamperes of power.
Designed for the marine environment, the monitor is housed in a sealed waterproof enclosure with an IP64 rating, ensuring durability and reliability. It is certified by NMEA 2000, IEC 61162-3, IEC 60945, FCC, and CE, confirming its compliance with industry standards. The monitor's compact dimensions of 4.2 inches in length, 3.5 inches in width, and 2.03 inches in height make it suitable for various installation scenarios.
The Maretron Temperature Sensor Monitor is equipped with waterproof connectors and is opto-isolated from the NMEA 2000 network to eliminate potential ground loops. This device supports a wide variety of applications, making it a valuable tool for effective temperature management in marine settings. Proper installation and configuration are essential for optimal performance, and users are encouraged to follow the provided instructions carefully.
Features
- NMEA 2000 Interface
- Waterproof Connectors
- Sealed Waterproof Enclosure
- Opto-Isolated From NMEA 2000 Eliminating Potential Ground Loops
- Six Relays For On And Off Control Over NMEA 2000 Network
- Four Channels For Thermistor Probes And 2 Channels For High Temperature Thermocouple Probes
- Wide Variety Of Applications Supported
Specifications
- Manufacturer: Maretron
- Manufacturer Part Number: TMP100-01
- Measures: Up To 6 Temperature Probes
- Number Of Channels: 4 Thermistor Channels/ 2 Thermocouple Channels
- Measurement Range: 0 To 900 Degree Celsius
- Voltage: 9 To 32 Volt
- Power Consumption: 50 Milliamp

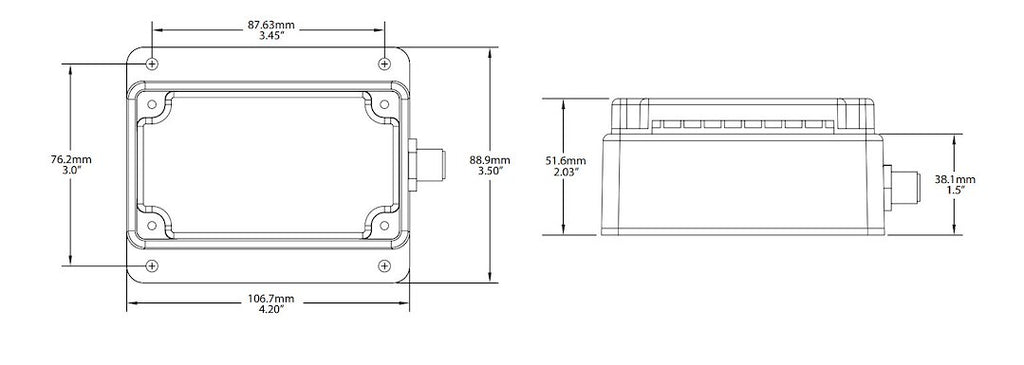

- Dimensions: 4.2 Inch Length x 3-1/2 Inch Width x 2.03 Inch Height
- Operating Temperature: -25 To 55 Degree Celsius
- Waterproof Rating: IP64 Rated
- Certification: NMEA 2000 Approved/ IEC 61162-3/ IEC 60945/ FCC Certified/ CE Certified
- Includes: With 4 Stainless Steel Mounting Screws/ User Manual
