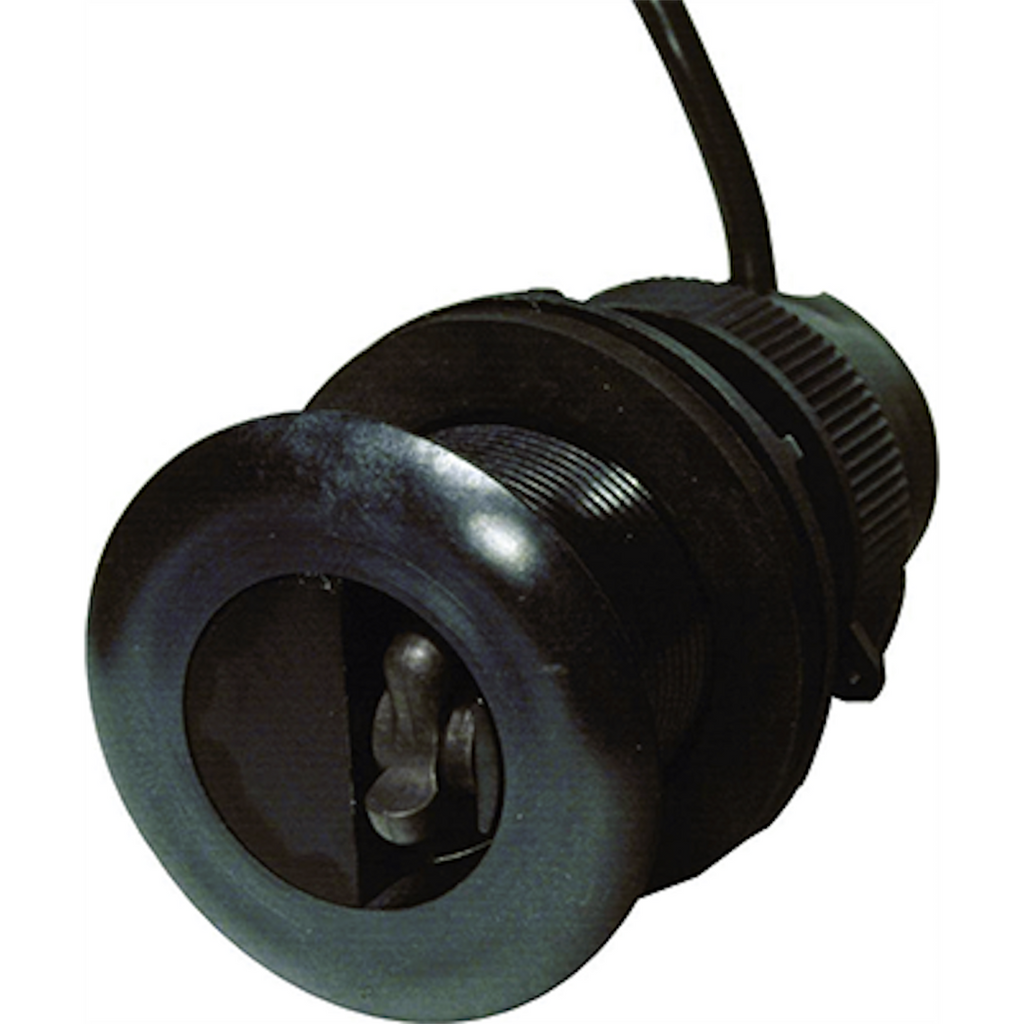

Advanced transducer for precise depth, speed, and temperature measurements.
Maretron's Smart Retractable Transducer is engineered to deliver accurate digital readings for depth, speed, and water temperature, functioning seamlessly at speeds exceeding 40 knots. This transducer operates within a depth range of 0.4 meters to 100 meters and features a wide beam width, accommodating various deadrise angles up to 22 degrees. Its advanced digital signal processing ensures precise speed measurements from 1 to 50 knots, while the temperature sensor provides readings from -10 to 40 degrees Celsius with ±1.0 degree Celsius accuracy.

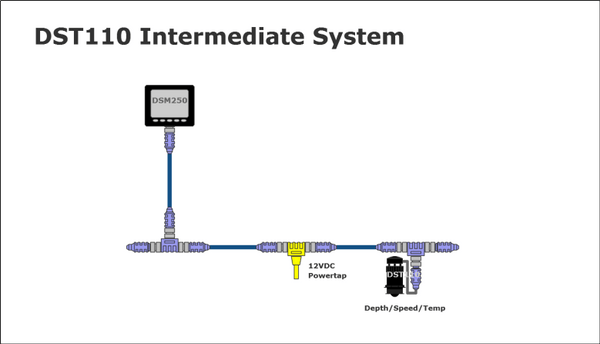

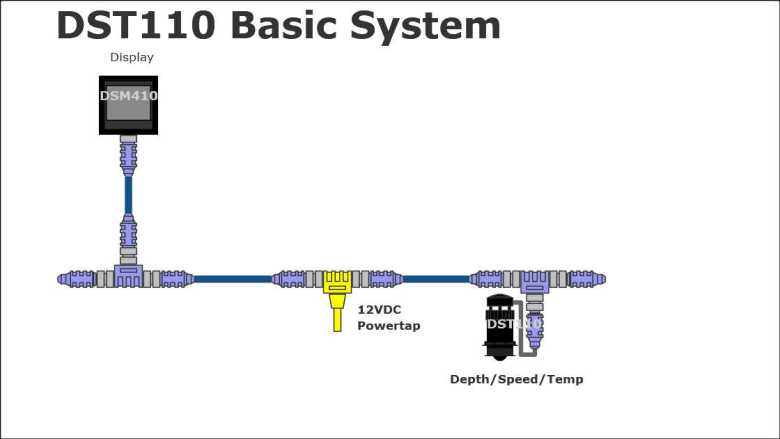

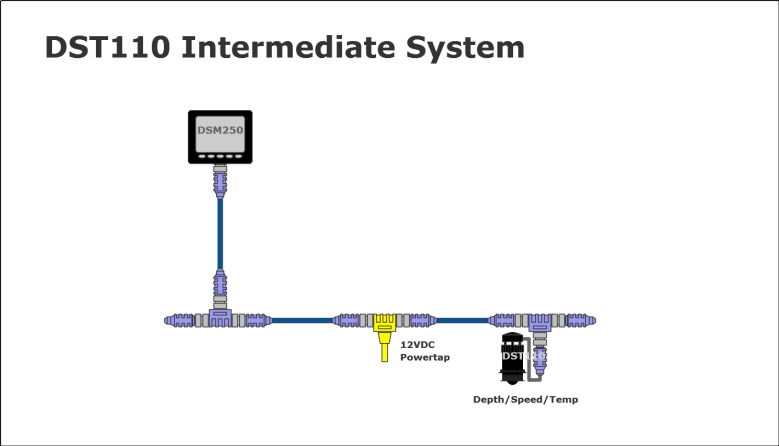

Designed for easy installation and maintenance, the transducer connects effortlessly to NMEA 2000 networks, allowing for integration with other navigation equipment. The retractable and removable sensor enhances usability, and the included blank plug protects the sensor during extended docking or trailering, minimizing fouling growth. Constructed with durable plastic housing and rated IP68 waterproof, this transducer is built to withstand harsh marine environments.
Maretron's transducer is compliant with CE standards and manufactured under stringent quality controls, ensuring reliable performance over time. Its compact design and compatibility with various hull materials make it a versatile choice for both sport and commercial fishing vessels, as well as sailing boats of all sizes.
Features
- NMEA 2000 Interface
- 235 Kilohertz Ceramic Transducer For Detecting Water Depth
- 100 Watt RMS Power Output For Depth Measurements Up To 100 Meter
- Paddlewheel With Hall Effect Sensor For Detecting Speed Through Water
- Advanced Digital Signal Processing For Accurate Speed Indication Down To 1 Knot
- Total Cumulative Distance
- Cumulative Voyage Distance
- Precision Thermistor For Detecting Water Temperature And Waterproof Enclosure And Cable System
- Calibration For Compensating Transducer Offset To Waterline Or Keel
Specifications
- Manufacturer: Maretron
- Manufacturer Part Number: DST110-01
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 5 Pin
- Depth: 1.31 To 328 Feet
- Power Rating: 100 Watt
- Frequency Range: 235 kHz
- Supported Angle: Up to 22 Degree Deadrise
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
