Seamlessly integrate resistive rudder senders with NMEA 2000 network

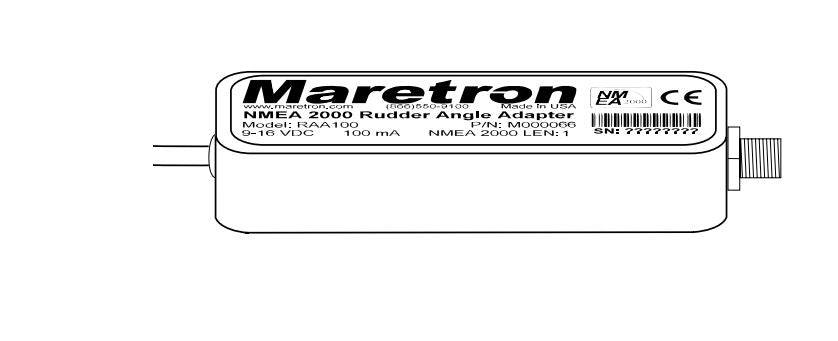

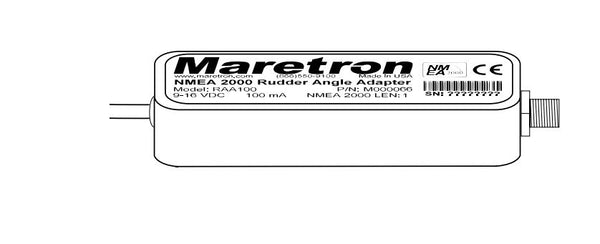

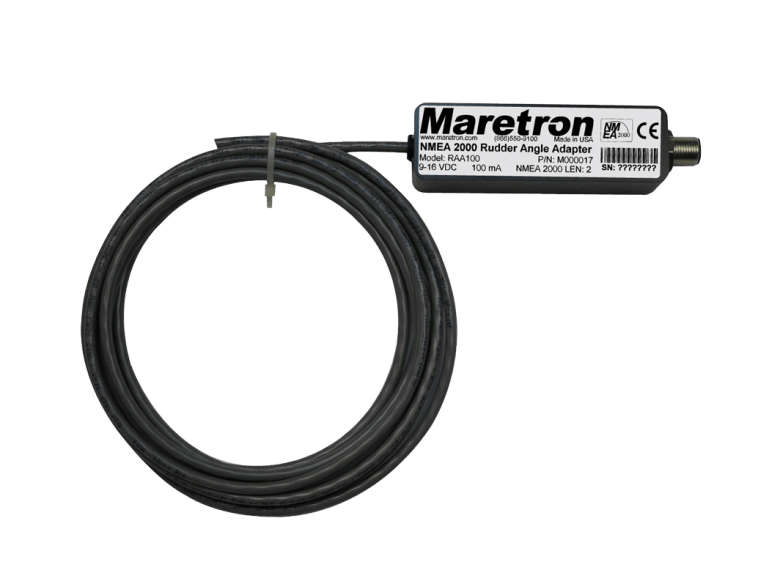

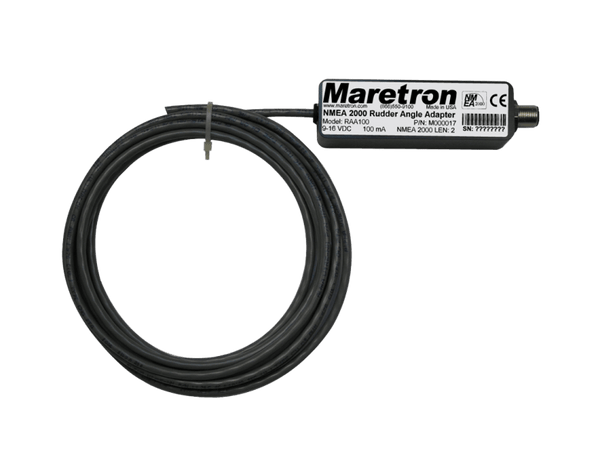

The Maretron Rudder Angle Sensor Adapter is designed to facilitate the integration of resistive rudder senders into the NMEA 2000 network. This device allows users to monitor rudder angles on any NMEA 2000 compatible display, enhancing the functionality of vessel monitoring systems. It supports both American and European standard resistive senders, making it versatile for various applications. The adapter can be calibrated for resistive senders with resistance values ranging from 0 to 300 Ohms, ensuring compatibility with a wide range of equipment.
Constructed to withstand the demanding conditions of marine environments, the adapter features an IP67 waterproof rating and operates effectively within a temperature range of -25 to 55 degrees Celsius. Its compact dimensions of 3.9 inches in length, 1.2 inches in width, and 1 inch in height make it easy to install in various locations on a vessel. The Maretron adapter also eliminates the need for mechanical adjustments through its three-point electronic calibration, simplifying the setup process.
This adapter can function independently without the need for analog gauges, allowing users to retain their existing instrumentation while benefiting from the advantages of a digitally networked system. Proper installation, calibration, and maintenance are essential for optimal performance, and users are encouraged to follow the provided guidelines to ensure reliable operation.
Features
- NMEA 2000 Interface
- Adapts American Standard 240 To 30 Ohm Resistive Senders To NMEA 2000 Network
- Adapts European Standard 10 To 180 Ohm Resistive Senders To NMEA 2000 Network
- Can Be Calibrated For Any Resistive Sender Ranging From 0 To 300 Ohms Or 300 To 0 Ohms
- Three Point Electronic Calibration Eliminates Need For Mechanical Adjustment Or Calibration
- Can Be Used Standalone Without Analog Gauges
Specifications
- Manufacturer: Maretron
- Manufacturer Part Number: RAA100-01
- Used To: Adapt Resistive Rudder Senders To NMEA 2000 Network
- Voltage: 9 To 16 Volt
- Power Consumption: 50 Milliampere

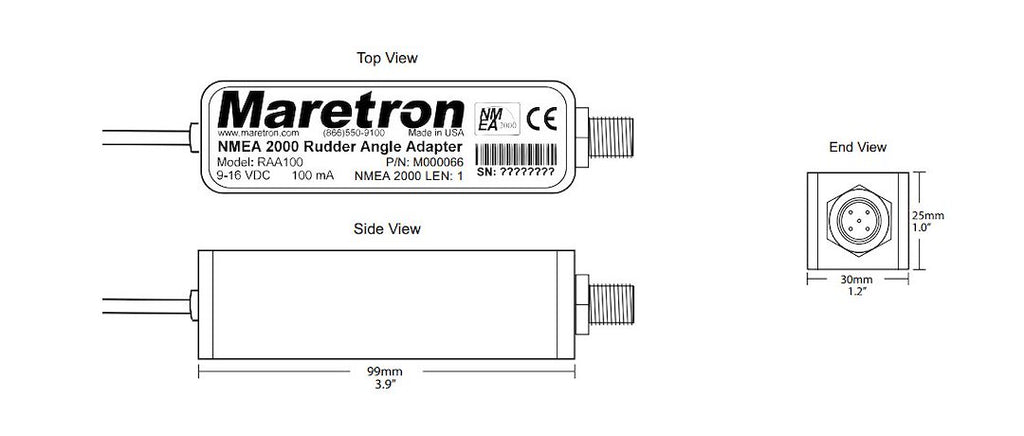

- Dimensions: 3.9 Inch Length x 1.2 Inch Width x 1 Inch Height
- Operating Temperature: -25 To 55 Degree Celsius
- Certification: NMEA 2000 Approved/ IEC 61162-3/ IEC 60945/ FCC Certified/ CE Certified
