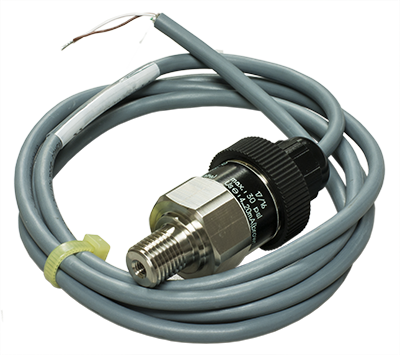

Maretron Pressure Transducer (MPN: PT-0-5PSI-01)

Advanced monitoring for various fluid types with NMEA 2000 compatibility.

The Maretron Pressure Transducer is designed for precise monitoring of multiple fluid types including air, brake fluid, diesel, hydraulic fluid, and more. With an operating range of 0 to 5 pounds per square inch, this transducer provides reliable data for various applications. It features a 4.9 feet long IP67 waterproof PVC cable, ensuring durability and performance in challenging environments.

This device interfaces with the NMEA 2000 network, allowing users to connect up to six pressure transducers for comprehensive monitoring. Each channel can be independently programmed to match the characteristics of the connected transducer, providing flexibility in pressure or vacuum mode as well as tank level monitoring. This capability is particularly beneficial for deep tanks or those with complex internal structures, enabling accurate fluid level assessments.

Constructed from 303 stainless steel, the Maretron Pressure Transducer is built to withstand harsh conditions while maintaining accuracy. It operates within a temperature range of 23 to 140 degrees Fahrenheit and supports a 4 to 20 milliampere output, making it suitable for a wide range of applications in marine and industrial settings.

Features

• NMEA 2000 Interface
• Interfaces Up To Six Pressure Transducers To The NMEA 2000 Network
• Each Channel Independently Programmable To Match Pressure Transducer Characteristics
• Each Channel Independently Programmable In Pressure/Vacuum Mode Or Tank Level Mode

Specifications

• Manufacturer: Maretron
• Manufacturer Part Number: PT-0-5PSI-01
• Compatibility: Monitoring Air/ Brake Fluid/ Diesel/ Diesel Exhaust Fluid/ Hydraulic Fluid/ Hydrogen/ Kerosene
• Pressure Range: 0 To 5 Pounds Per Square Inch
• Includes Short Pigtail Harness: Yes
• Connection Size: 1/4 Male NPT

Technical Documents

• Pressure_Transducers_Installation_Instructions_1.5-10PSI-T_1.4.pdf
