Accurate monitoring of various fluids with advanced NMEA 2000 integration.

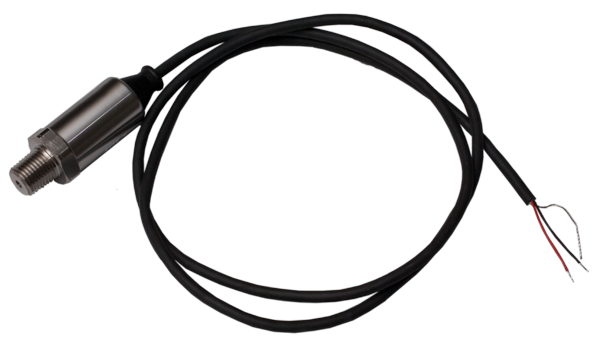

The Maretron Pressure Transducer is designed for precise monitoring of a wide range of fluids including refrigerants, motor oils, diesel, hydraulic fluids, brake fluids, water, waste water, hydrogen, nitrogen, and air. With an operating range of 0 to 5000 pounds per square inch, this transducer is suitable for various applications in marine and industrial environments. It features a robust construction using 304L stainless steel, ensuring durability and reliability under harsh conditions, with an operating temperature range of -40 to 105 degrees Celsius.
This transducer interfaces seamlessly with the NMEA 2000 network, allowing for the connection of up to six pressure transducers. Each channel can be independently programmed to match the characteristics of the connected pressure transducer, providing flexibility in monitoring pressure or vacuum conditions. Additionally, the tank level mode enables accurate fluid level monitoring in tanks, accommodating irregular shapes and deep structures, which enhances the versatility of the system.
The Maretron Pressure Transducer is equipped with a 3 feet length cable and a 1/4 male NPT connection size, making installation straightforward. This device is essential for applications requiring reliable pressure and fluid level monitoring, ensuring that operators can maintain optimal performance and safety in their systems.
Features
- NMEA 2000 Interface
- Interfaces Up To Six Pressure Transducers To The NMEA 2000 Network
- Each Channel Independently Programmable To Match Pressure Transducer Characteristics
- Each Channel Independently Programmable In Pressure/Vacuum Mode Or Tank Level Mode
Specifications
- Manufacturer: Maretron
- Manufacturer Part Number: PT-0-5000PSI-01
- Compatibility: Monitoring Refrigerant/ Motor Oil/ Diesel/ Hydraulic Fluid/ Brake Fluid/ Water/ Waste Water
- Pressure Range: 0 To 5000 Pounds Per Square Inch
- Includes Short Pigtail Harness: Yes
- Connection Size: 1/4 Male NPT
