Seamlessly integrate up to six pressure transducers with NMEA 2000.

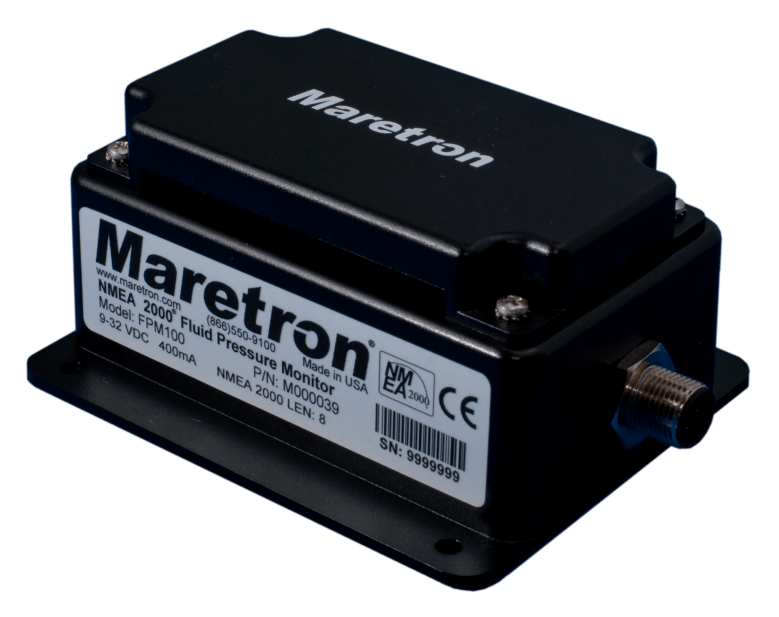

The Maretron Pressure Transducer Monitor is engineered to interface with up to six pressure transducers, enabling integration into the NMEA 2000 network. This device allows for real-time monitoring of fluid pressures and tank levels across various marine applications. It supports both pressure and vacuum measurements, making it suitable for water, oil, hydraulic pressures, and system vacuum detection. Additionally, the monitor features a tank level mode that accurately measures fluid levels in deep or irregularly shaped tanks, providing essential data for effective management.
Designed for the marine environment, the Maretron Pressure Transducer Monitor operates within a voltage range of 9 to 32 volts and consumes 400 milliamperes of power. Its robust construction is rated IP64 for water resistance, ensuring reliable performance in challenging conditions. The monitor is also certified by NMEA 2000, IEC 61162-3, IEC 60945, FCC, and CE, affirming its compliance with industry standards.
Installation and calibration are critical for optimal performance, and the monitor comes with detailed instructions to assist users. Each channel of the monitor can be independently programmed to match the characteristics of the connected pressure transducers, allowing for customized monitoring solutions. With its advanced features and reliable operation, the Maretron Pressure Transducer Monitor is a valuable tool for marine professionals.
Features
- NMEA 2000 Interface
- Adapts Up To Six Pressure Transducers To The NMEA 2000 Network
- Each Channel Independently Programmable To Match Pressure Transducer Characteristics
- Each Channel Independently Programmable To Pressure/Vacuum Mode Or Tank Level Mode
- In Tank Level Mode, Measures Levels Of Extremely Deep Or Irregularly Shaped Tanks
Specifications
- Manufacturer: Maretron
- Manufacturer Part Number: FPM100-01
- Compatibility: Interface Up To Six Pressure Transducers To NMEA 2000 Network
- Voltage: 9 To 32 Volt
- Power Consumption: 400 Milliamp
- Accuracy: +/- 1 Percent

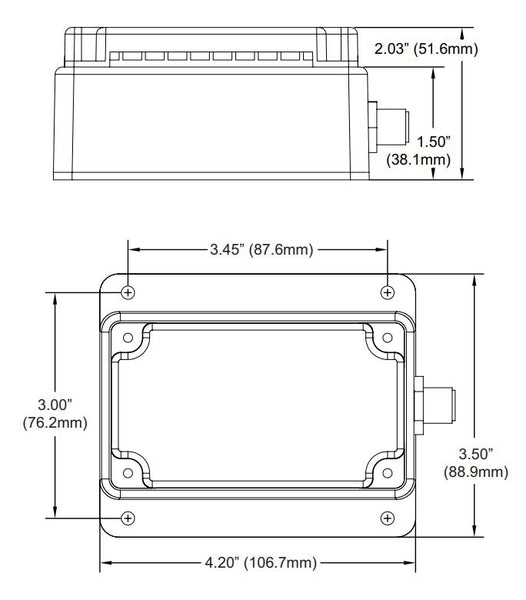

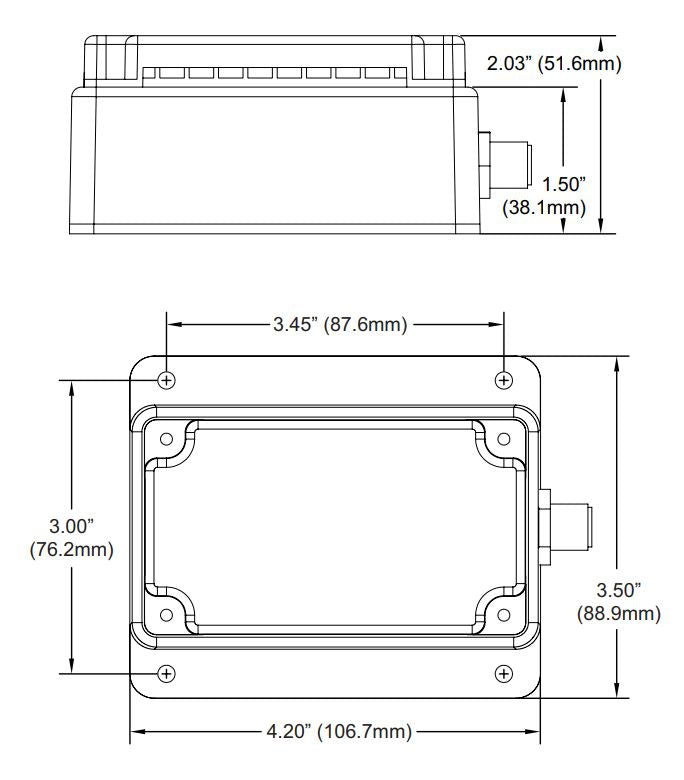

- Dimensions: 4.2 Inch Length x 3-1/2 Inch Width x 2.03 Inch Height
- Operating Temperature: -25 To 55 Degree Celsius
- Waterproof Rating: IP64 Rated
- Certification: NMEA 2000 Approved/ IEC 61162-3/ IEC 60945/ FCC Certified/ CE Certified
- Includes: With 4 Stainless Steel Mounting Screws/ User Manual
