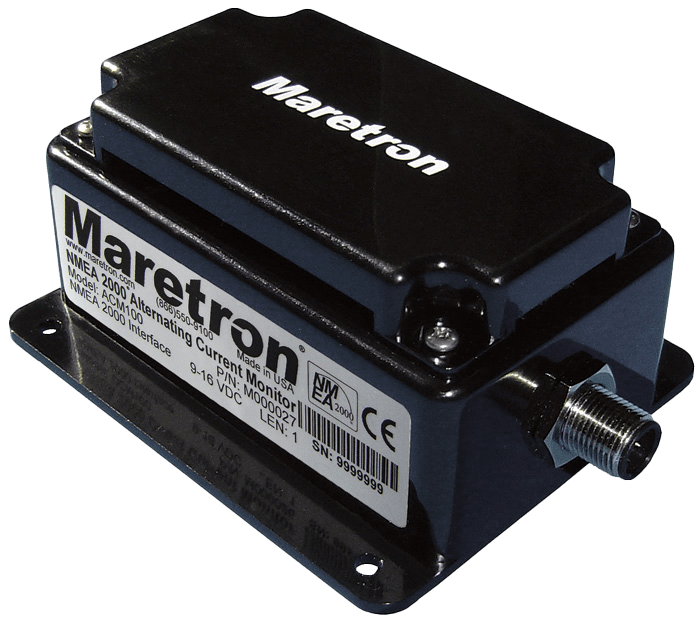

Maretron Power Monitor (MPN: ACM100-01)

Comprehensive monitoring of AC power sources for marine applications.

Maretron's power monitor is designed to effectively monitor AC power sources, providing critical information on voltage, current, frequency, and power metrics. This device integrates seamlessly with the NMEA 2000 marine data network, allowing for real-time data display on compatible devices such as the Maretron DSM570 or DSM410. The power monitor is capable of monitoring power busses, generators, and utility power, ensuring that users have access to essential AC information throughout the vessel.

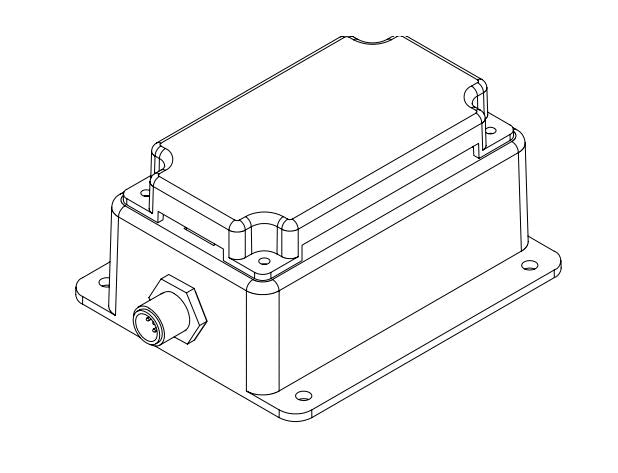

Constructed with a sealed waterproof enclosure and equipped with waterproof connectors, the Maretron power monitor is built to withstand harsh marine environments. It features reverse battery protection and load dump protection, ensuring reliable operation under various conditions. With an operating temperature range of -25 to 55 degrees Celsius and storage capabilities down to -40 degrees Celsius, this device is engineered for durability and performance.

The power monitor is NMEA 2000 certified, making it a vital component of Maretron's N2KView vessel monitoring and control system. Its opto-isolated design eliminates potential ground loops, enhancing the reliability of the monitoring system. This device is an essential tool for any marine application requiring precise monitoring of AC power.

Features

• NMEA 2000 Interface
• Waterproof Connectors
• Sealed Waterproof Enclosure
• Opto-Isolated From NMEA 2000 Eliminating Potential Ground Loops
• Monitoring Of Busses Carrying AC Power And Transmitting

Specifications

• Manufacturer: Maretron
• Manufacturer Part Number: ACM100-01
• Display Type: No Display
• Operating Voltage: 9 To 32 Volt
• Ampere Rating: 0.05 Amp
• Color: Black

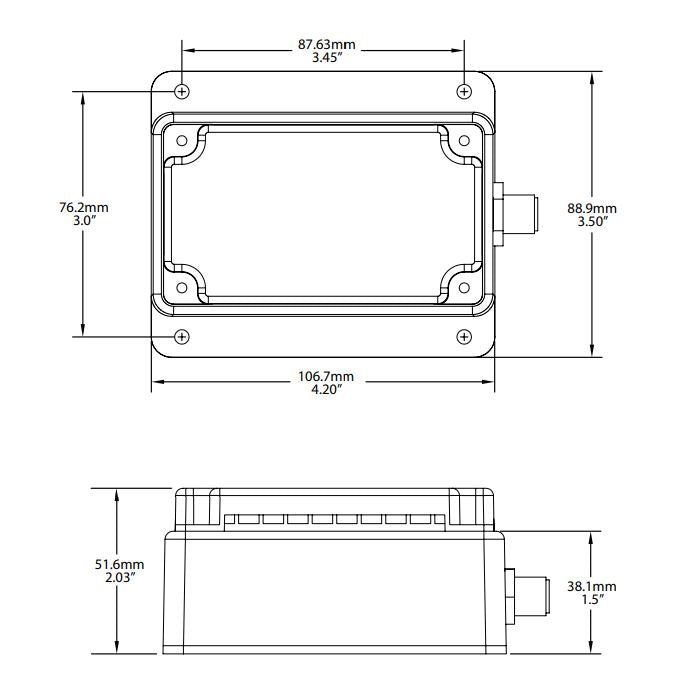

• Dimensions: 4.2 Inch Width x 3-1/2 Inch Depth x 2.03 inch Height
• Certifications: NMEA 2000 Approved/ IEC 60945/ FCC Certified/ CE Certified
• Quantity: Single

Technical Documents

• ACM100UM_1.3.pdf
• ACM100_Datasheet.pdf
