Advanced relay module for efficient DC load management in marine applications.

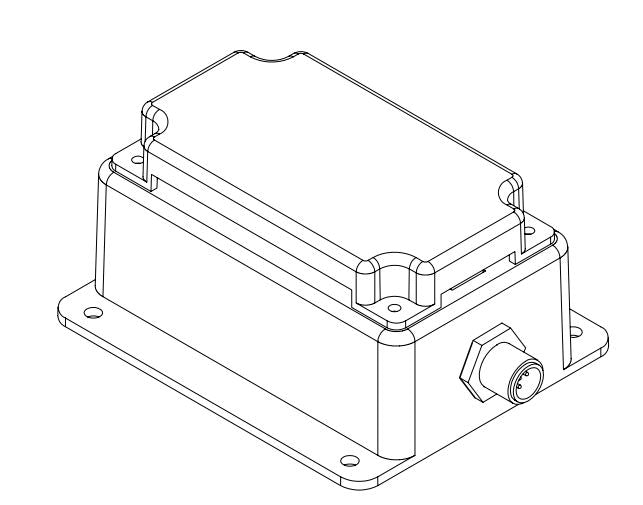

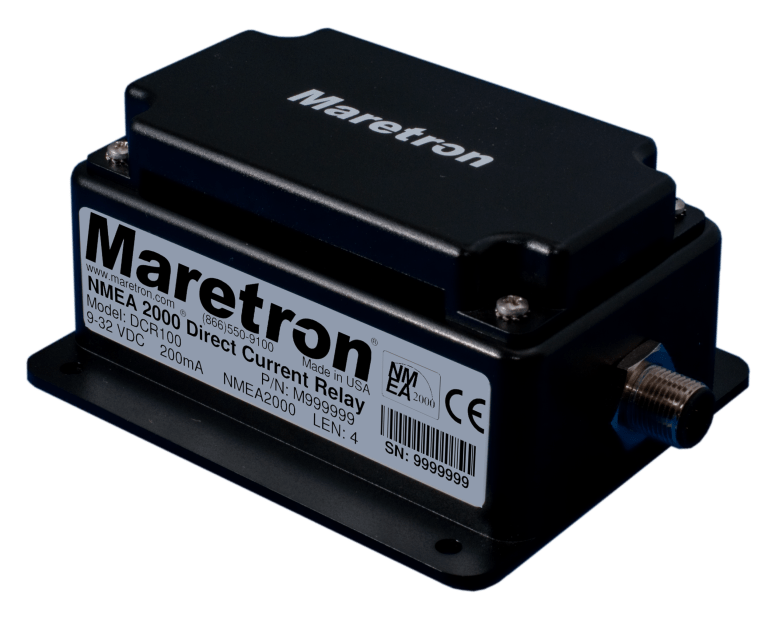

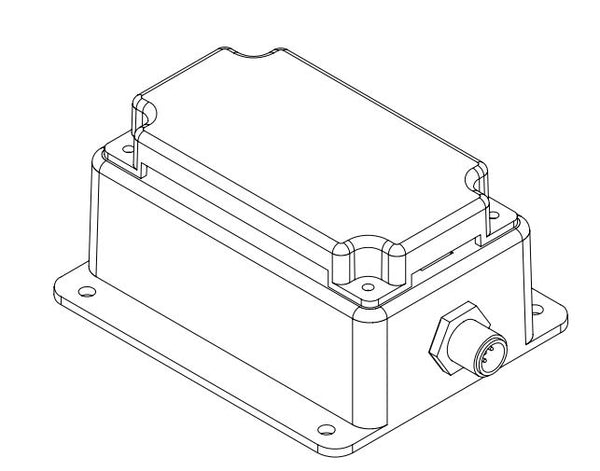

The Maretron Power Management System Relay Module features six Direct Current (DC) relays, each capable of switching up to 10 Ampere. This module connects directly to an NMEA 2000 network, allowing users to control the relays from a Maretron display or any compatible device running Maretron's N2KView software. It is designed to handle both resistive and inductive DC loads, making it suitable for various applications including lights, pumps, and motors. Additionally, the module can be utilized to switch AC circuits with the use of external relays.
One of the key benefits of this relay module is its ability to monitor the electrical current through each channel. This feature enables users to detect issues such as burnt-out bulbs or excessive current draw, enhancing the reliability of connected devices. The Maretron relay module is built to withstand the harsh conditions of the marine environment, ensuring durability and performance.
Installation and configuration are critical for optimal operation, and users are advised to follow the provided instructions carefully. The module includes waterproof connectors and a sealed enclosure, ensuring protection against moisture and environmental factors. With its IP64 rating and compliance with various marine certifications, the Maretron relay module is a robust solution for managing electrical loads in marine settings.
Features
- NMEA 2000 Interface
- Waterproof Connectors
- Sealed Waterproof Enclosure
- Opto-Isolated From NMEA 2000 Eliminating Potential Ground Loops
- Six Relays For On And Off Control Over NMEA 2000 Network
- Each Relay Capable Of Carrying Up To 10 Ampere
- Individual Relay Electrical Current Monitoring
- Relays Can Have Power Up States Defined
- Relays Can Be Locked Against Inadvertent Actuation
Specifications
- Manufacturer: Maretron
- Manufacturer Part Number: DCR100-01
- Switching Current: 10 Amp
- Switching Voltage: 32 Volt
- Operating Voltage: 9 To 32 Volt
- Power Consumption: 150 Milliamp

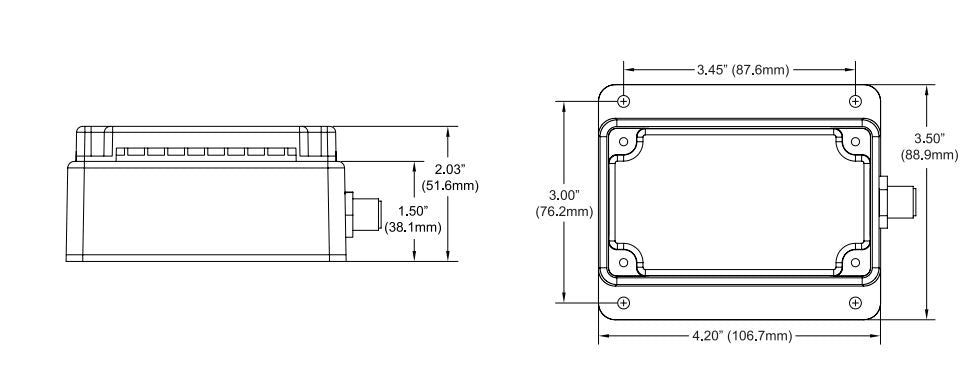

- Dimensions: 4.2 Inch Length x 3-1/2 Inch Width x 2.03 Inch Height
- Operating Temperature: -25 To 55 Degree Celsius
- Waterproof Rating: IP64 Rated
- Certification: NMEA 2000 Approved/ IEC 61162-3/ IEC 60945/ FCC Certified/ CE Certified
- Includes: With 4 Stainless Steel Mounting Screws/ User Manual
