Enhance your NMEA 2000 network with extended capabilities and reliability.

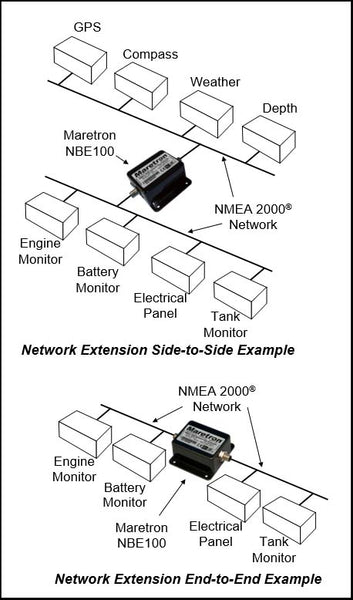

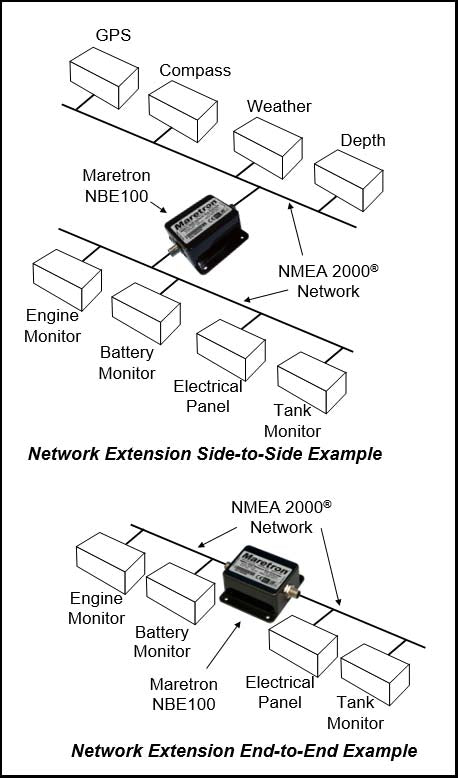

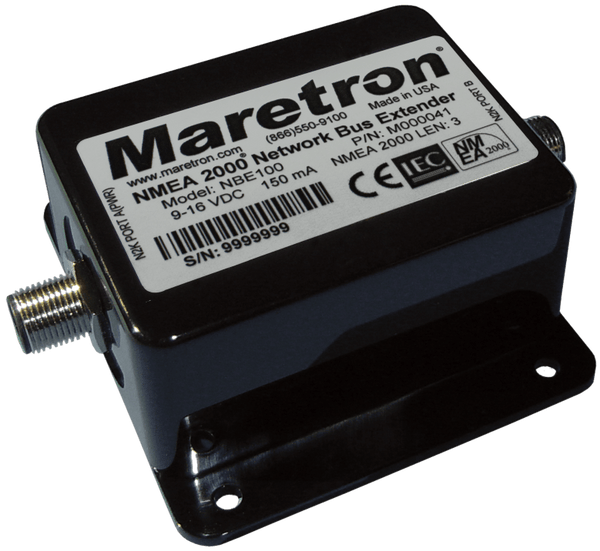

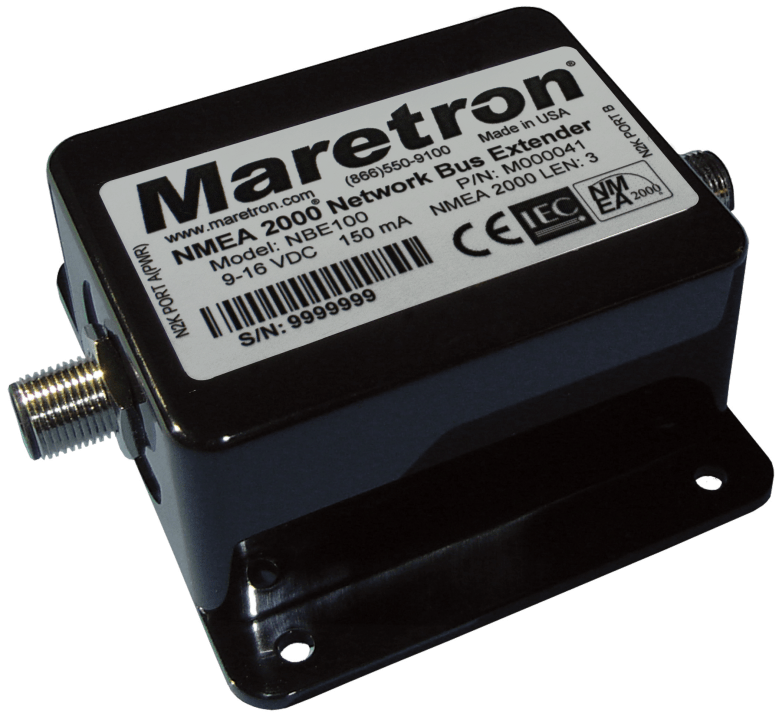

The Maretron Network Bus Extender (NBE100) is designed to enhance the functionality of NMEA 2000 networks by allowing for an increased number of nodes, extended trunk lengths, and cumulative drop lengths. This device effectively addresses bus errors and electrical issues that arise when network specifications are exceeded, facilitating the design of larger networks. By connecting the NBE100, users can split a single network into two electrical segments, each supporting up to 50 nodes, thereby enabling a total of 100 nodes on the logical network.
The NBE100 operates within a voltage range of 9 to 32 volts DC and features a compact design with dimensions of 3.46 inches in length, 3.11 inches in depth, and 1.38 inches in height. It is built to withstand harsh marine environments with an IP67 waterproof rating and operates effectively in temperatures ranging from -25 to 55 degrees Celsius. Additionally, the device includes reverse battery protection and load dump protection, ensuring reliable performance.
With certifications including NMEA 2000 approval, IEC 61162-3, IEC 60945, FCC, and CE, the Maretron NBE100 guarantees compliance with industry standards. The inclusion of four stainless steel mounting screws facilitates easy installation, making it a practical solution for marine applications that require robust network capabilities.
Features
- Segments A Single Large NMEA 2000 Network Into Two Smaller Electrical Segments
- Allows You To Exceed The 50 Node Limitation On A NMEA 2000 Network
- Allows You To Exceed The 200 Meter Trunk Length Limitation On A NMEA 2000 Network
- Allows You To Exceed The 78 Meter Cumulative Drop Length Limitation On A NMEA 2000 Network
- Allows All NMEA 2000 Devices To Operate As If They Were Still On A Single NMEA 2000 Network
- Optically Isolates Network Segments, Increasing Signal Integrity And Network Reliability
Specifications
- Manufacturer: Maretron
- Manufacturer Part Number: NBE100-01
- Voltage: 9 To 32 Volt
- Ampere Rating: 0.15 Amp

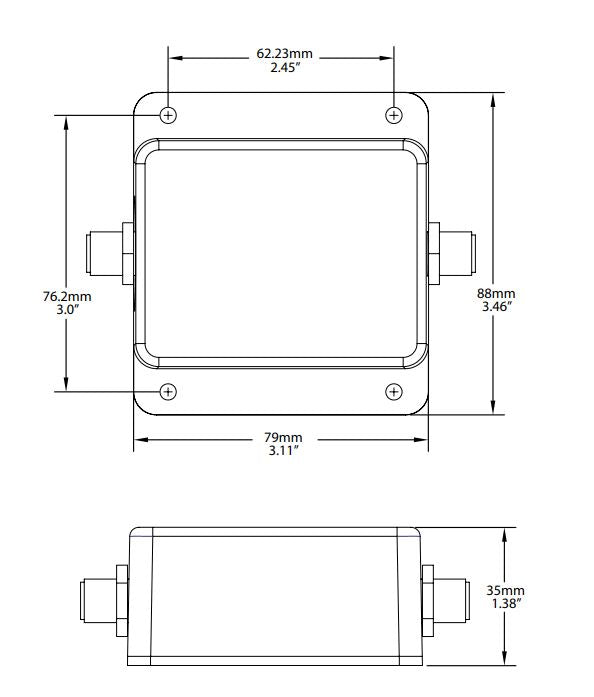

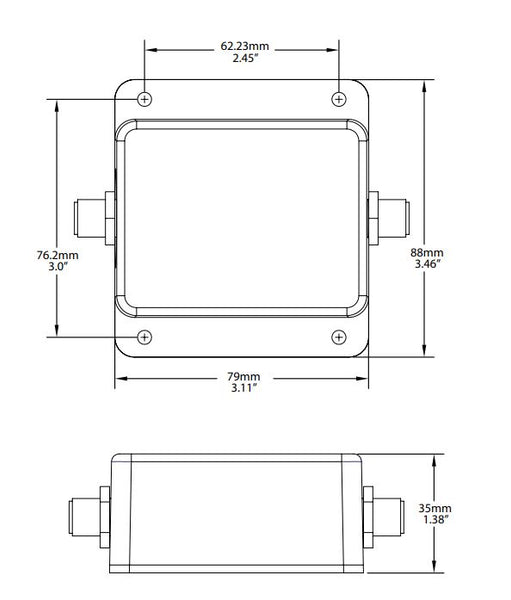

- Dimensions: 3.46 Inch Length x 3.11 Inch Depth x 1.38 Inch Height
- Waterproof: IP67 Waterproof
- Certifications: NMEA 2000 Approved/ IEC 61162-3/ IEC 60945/ FCC Certified/ CE Certified
- Includes: With 4 Stainless Steel Mounting Screw
