Advanced touchscreen display for vessel monitoring and control systems.

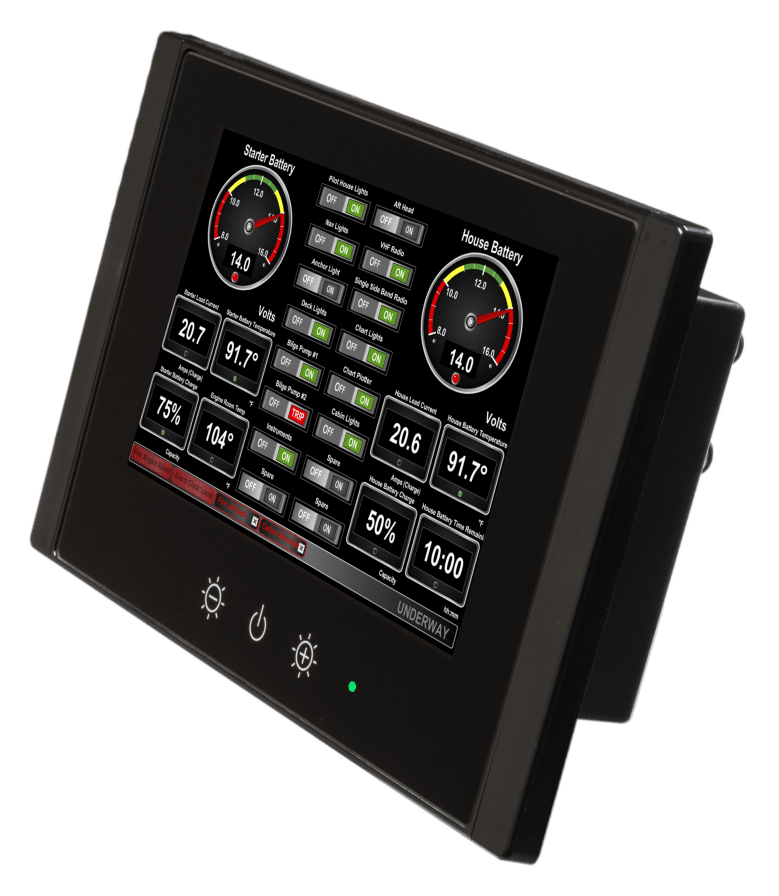

The Maretron Multi Function Display is an 8 Inch TFT LCD touchscreen designed for monitoring and controlling critical vessel systems. Featuring Maretron's N2KView software, users can customize their display with preferred screens, providing essential information at a glance. The display is engineered for marine environments, boasting a rugged anodized aluminum body and a solid state disk drive that ensures durability against harsh conditions and vibrations.
With a resolution of 800 x 480 pixels and a brightness of 1350 nits, this display is optimized for visibility in various lighting conditions. It operates efficiently with a maximum power consumption of only 15 watts, eliminating the need for noisy internal cooling fans. The device supports multiple mounting options, including flush and VESA mounts, making it versatile for different installation scenarios.

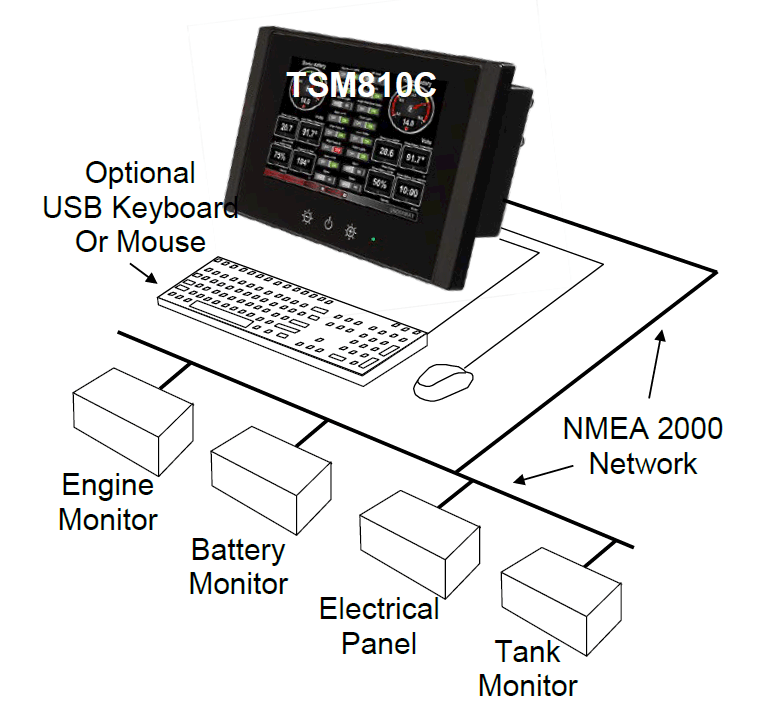

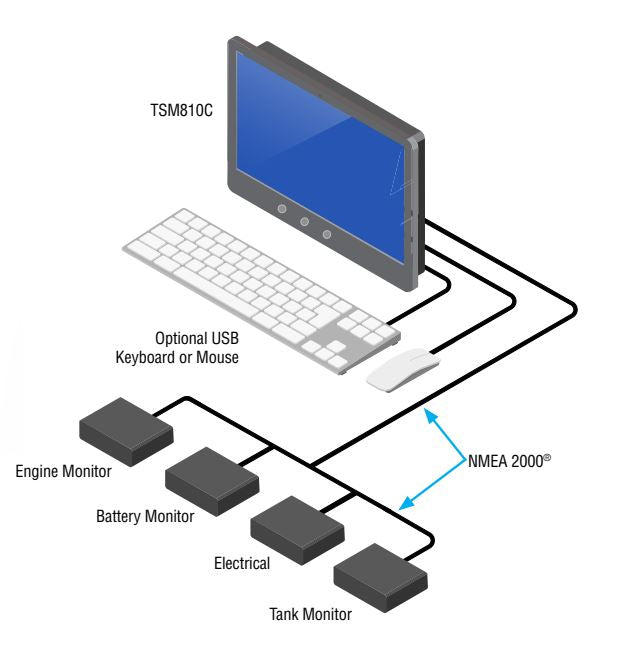

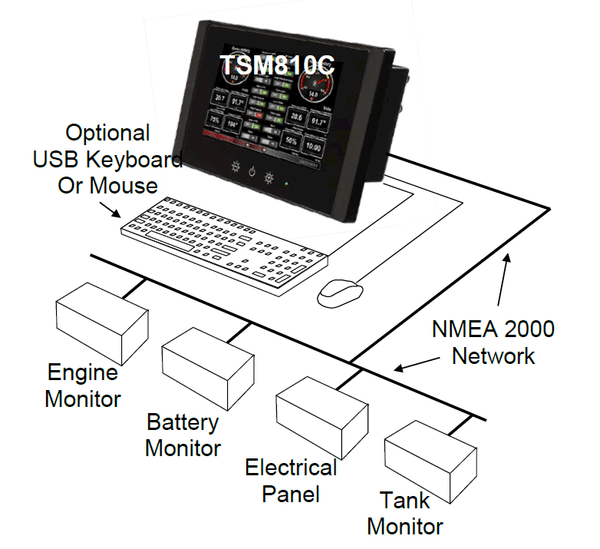

Connectivity options include two USB ports for peripherals and an Ethernet port for IP camera integration, enhancing the functionality of the display. Additionally, it features two isolated CAN bus connectors for seamless integration with NMEA 2000 networks, ensuring reliable communication with other marine devices. The Maretron Multi Function Display is IP66 rated for the front and IP22 for the rear, providing robust protection against water ingress.
Features
- 8 Inch TFT LCD Panel, LED Backlit
- Widescreen Aspect Ratio 5:3
- 800 X 480 Pixels
- 1350 Nits Brightness
- Solid State Disk Drive
- Fanless Cooling System
- Flush Mounting Hardware Provided
- All N2KView Licenses Provided
- 2 Isolated NMEA 2000 Connectors For Direct Connection To Single Or Dual NMEA 2000 Networks
Specifications
- Manufacturer: Maretron
- Manufacturer Part Number: TSM810C-01
- Display: 8 Inch LCD
- Charts/ Maps: Not Applicable
- Sonar Type: Not Applicable
- Mounting Type: Flush Mount/ VESA Mount
- With Transducer: No
- Resolution: 800 X 480 Pixels
- Universality: Semi-Universal
- Interface: Touchscreen

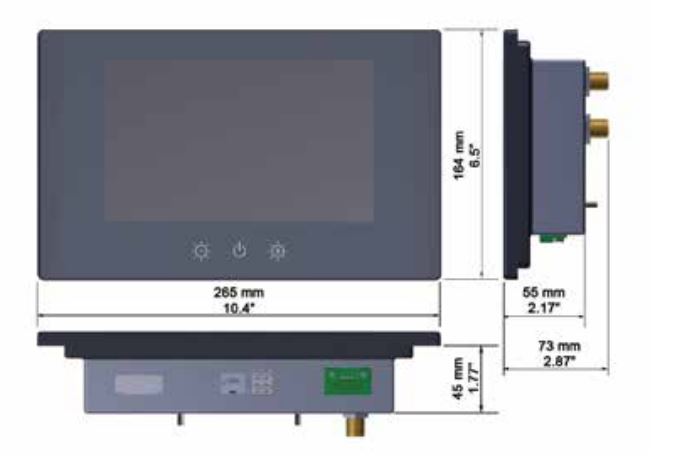

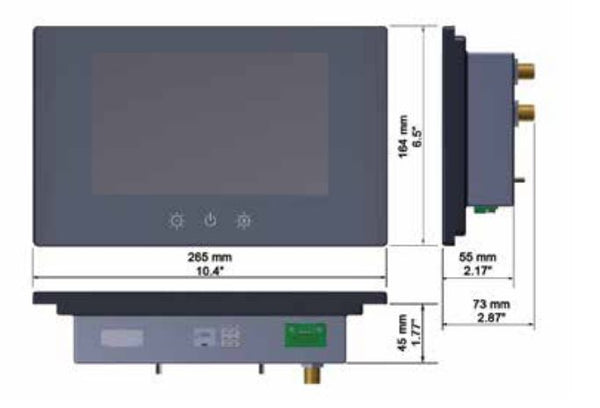

- Dimensions: 10.4 Inch Width X 8.87 Inch Depth X 6-1/2 Inch Height
- Waterproof: IP66/ IP22 Rating Waterproof
- Sensor Compatibility: NMEA 2000 Compatible
- Color: Black
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
