Advanced display for NMEA 2000 navigation and monitoring data.

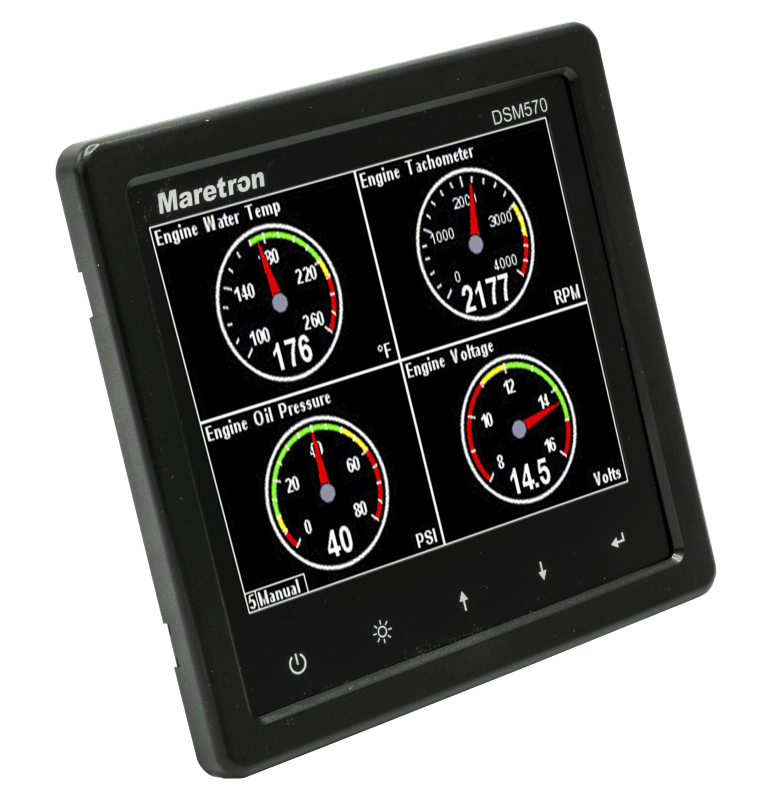

Maretron's multi function display is designed to provide a high-resolution, sunlight viewable interface for interpreting NMEA 2000 instrument and navigation data. With a 5-3/4 inch LCD display featuring a resolution of 640 x 480 pixels, this device allows users to customize their display configurations using an easy-to-use five-key illuminated keypad. The display supports various formats including numeric, gauge, and graph, enabling users to cycle through multiple displays to view a wide range of data efficiently.
This display connects directly to any NMEA 2000 network, allowing it to showcase a multitude of information such as AC power, battery status, depth, engine performance, environmental conditions, fuel management, GPS data, and more. The Maretron multi function display is equipped with programmable audio and visual alarms, enhancing its utility for vessel monitoring. Its waterproof design and IP67 rating ensure durability in marine environments, while the anodized aluminum body provides additional protection against the elements.
The device operates within a temperature range of -20 to 70 degrees Celsius and is powered directly from the NMEA 2000 network, eliminating the need for additional power sources. The flush mounting style and included bezel, mounting screws, and USB flash drive facilitate easy installation and setup. This multi function display is an essential tool for boaters seeking comprehensive monitoring and navigation capabilities.
Features
- NMEA 2000 Interface
- Waterproof NMEA 2000 Connector
- Sealed Waterproof Enclosure
- Powered Directly From NMEA 2000 Network
- Flush Mounting
- Backlit Capacitive Touch Keys
- Visual And Audible Alarms
- 16 User Configurable Favorite Screens
- Capable Of Viewing Virtually All NMEA 2000 Information Including Batteries, Engines, Generators, Shore Power, Tanks, Navigation, Weather And More
Specifications
- Manufacturer: Maretron
- Manufacturer Part Number: DSM570-01
- Mounting Style: Flush Mount
- Display Type: LCD
- With Transducer: No
- Operational Temperature Range: -20 To 70 Degree Celsius
- Voltage Rating: 9 To 30 Volt DC
- Boat Speed: No
- Coarse Information: No
- Multi Language: Yes
- Race Timer: No
- Time: No
- Water Current: No
- Water Depth: No
- Water Temperature: No
- Wind Direction: No
- Wind Speed: No

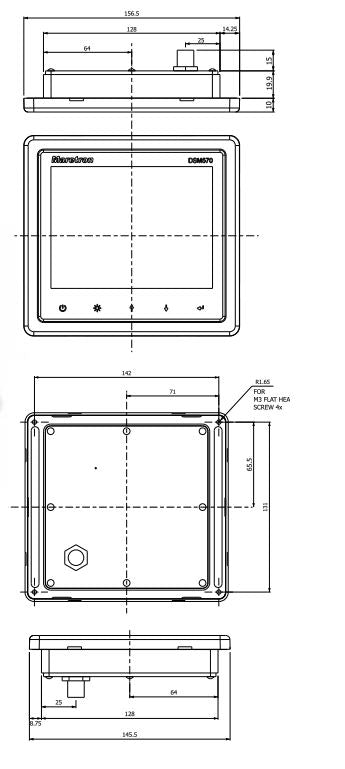

- Wind Instrument Display Size: 6.16 Inch Width X 1.18 Inch Depth X 5.77 Inch Height
- NMEA 2000 Certified: Yes
- Waterproof Rating: Yes
- Includes: With Bezel/ 4 Mounting Screws/ USB Flash Drive/ User Manual
