Advanced NMEA 2000 Display for Comprehensive Vessel Monitoring

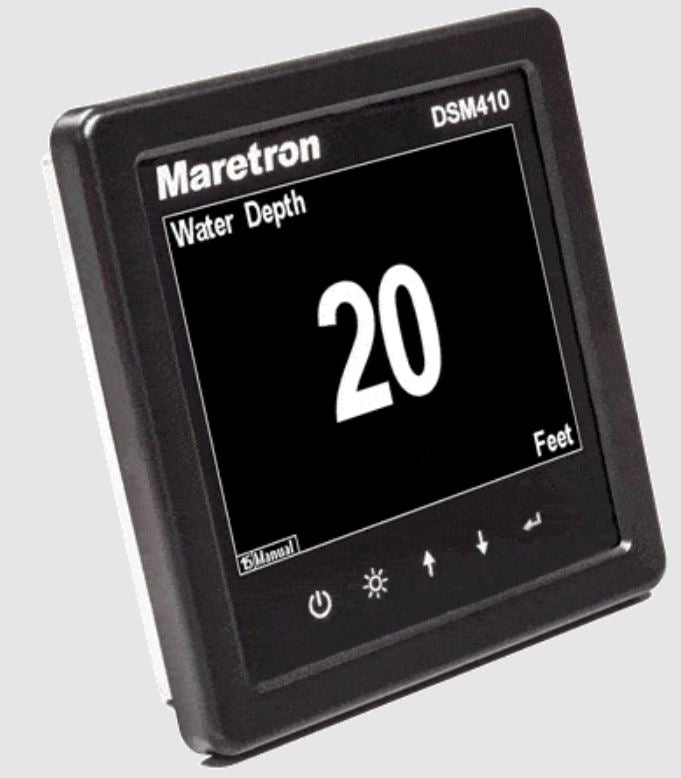

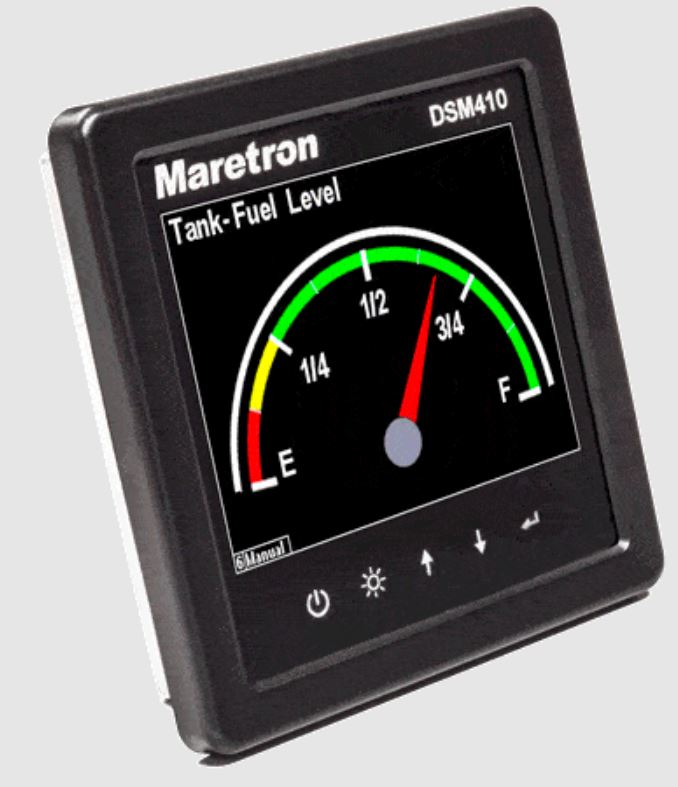

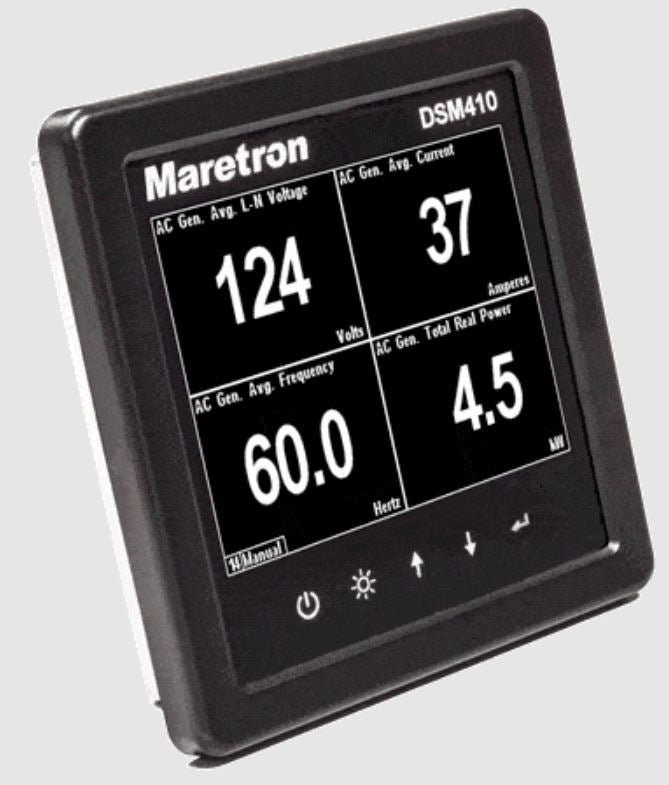

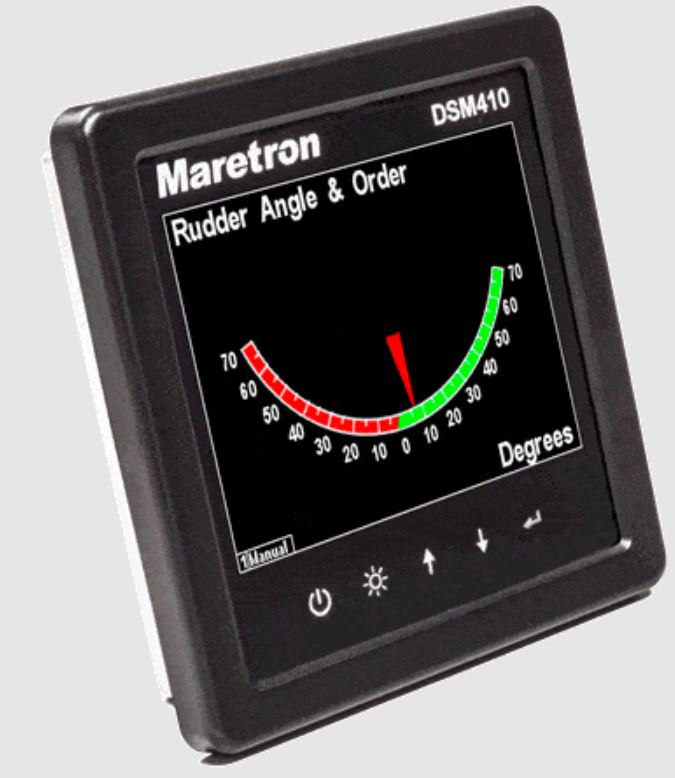

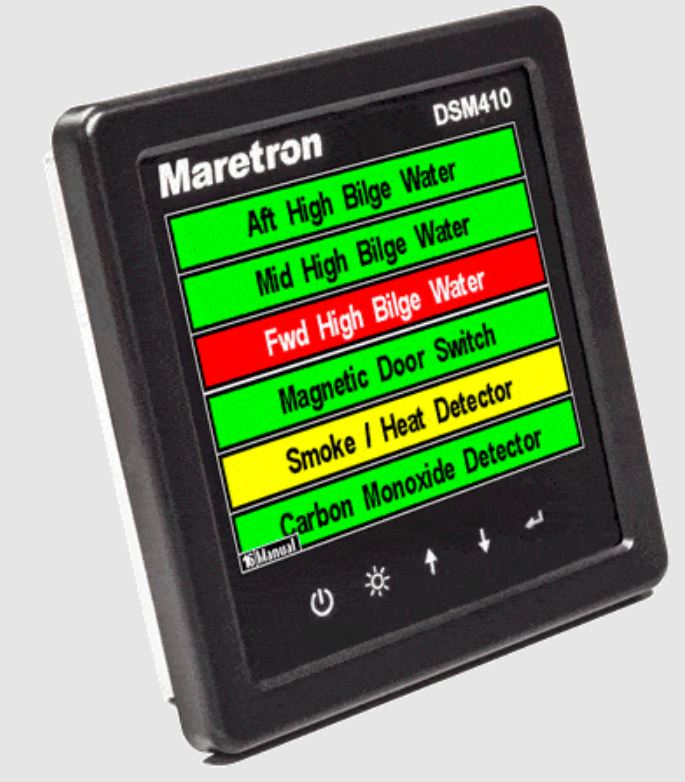

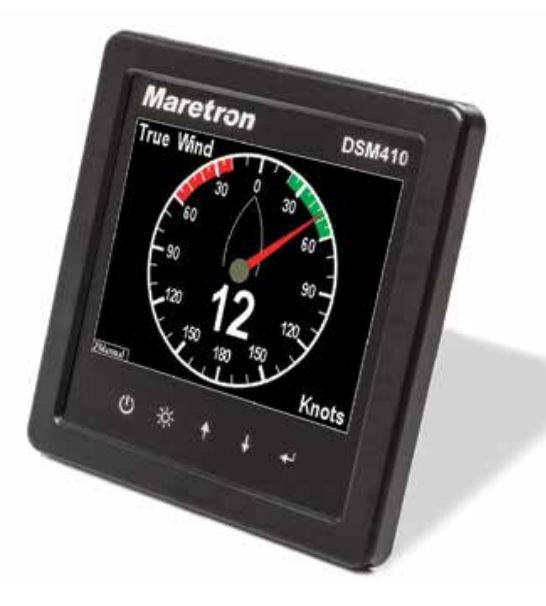

Maretron's multi function display is designed to provide a high-resolution interface for interpreting and displaying NMEA 2000 instrument, navigation, and vessel monitoring data. With a 4.1 inch LCD screen that is sunlight viewable, this display offers customizable screen configurations and an intuitive five-key illuminated keypad for ease of use. The device supports a variety of display formats including numeric, gauge, bar, and graph, allowing users to monitor multiple data points simultaneously while conserving mounting space.
This display is equipped with a robust alert and alarm system, providing both visual and audible notifications for critical vessel information. It connects directly to any NMEA 2000 network, enabling the display of a wide range of data including battery status, engine performance, navigation metrics, and environmental conditions. The Maretron multi function display is housed in a sealed waterproof enclosure, ensuring durability and reliability in marine environments.
Operating within a temperature range of -20 to 70 degrees Celsius, the display is powered directly from the NMEA 2000 network and features a waterproof NMEA 2000 connector. The flush mounting design and backlit capacitive touch keys enhance usability, making it suitable for various marine applications. With the ability to configure up to 16 favorite screens, users can tailor the display to their specific monitoring needs.
Features
- NMEA 2000 Interface
- Waterproof NMEA 2000 Connector
- Sealed Waterproof Enclosure
- Powered Directly From NMEA 2000 Network
- Flush Mounting
- Backlit Capacitive Touch Keys
- Visual And Audible Alarms
- 16 User Configurable Favorite Screens
- Capable Of Viewing Virtually All NMEA 2000 Information Including Batteries, Engines, Generators, Shore Power, Tanks, Navigation, Weather And More
Specifications
- Manufacturer: Maretron
- Manufacturer Part Number: DSM410-01
- Mounting Style: Flush Mount
- Display Type: LCD
- With Transducer: No
- Operational Temperature Range: -20 To 70 Degree Celsius
- Voltage Rating: 9 To 30 Volt DC
- Boat Speed: No
- Coarse Information: No
- Multi Language: Yes
- Race Timer: No
- Time: No
- Water Current: No
- Water Depth: No
- Water Temperature: No
- Wind Direction: No
- Wind Speed: No

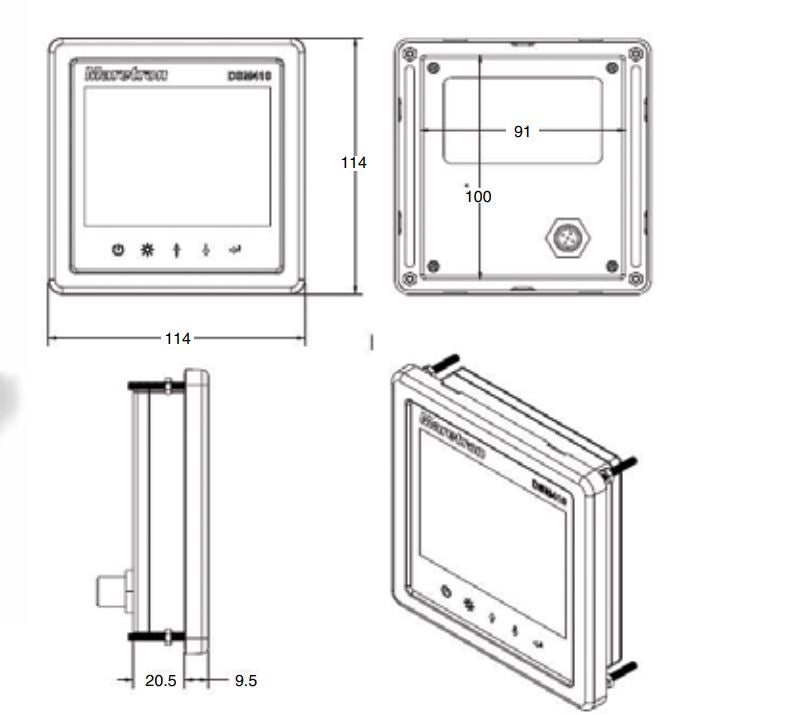

- Wind Instrument Display Size: 4.49 Inch Width X 1.18 Inch Depth X 4.49 Inch Height
- NMEA 2000 Certified: Yes
- Waterproof Rating: Yes
- Includes: With Bezel/ 4 Mounting Screws/ USB Flash Drive/ User Manual
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
