Seamlessly bridge J1939 engines with NMEA 2000 networks.

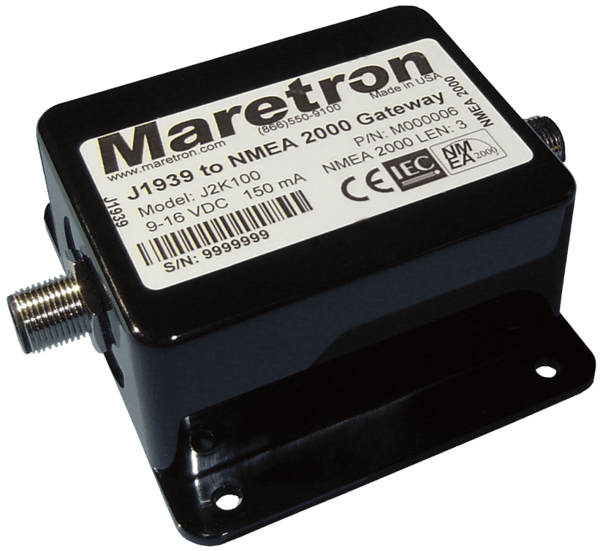

The Maretron Marine Network Gateway serves as a crucial interface for connecting J1939-equipped engines and generators to an NMEA 2000 network. This device automatically converts J1939 messages into NMEA 2000 format, allowing for comprehensive monitoring of engines, transmissions, and generators through compatible displays and software. Designed to withstand the rigors of marine environments, the gateway features a sealed waterproof enclosure and IP67 rating, ensuring reliable operation in harsh conditions.
With a power consumption of only 150 milliamperes and a wide operating voltage range of 9 to 32 volts DC, the Maretron Network Gateway is efficient and versatile. It is equipped with opto-isolation to prevent ground loops, enhancing the safety and reliability of the system. The gateway also supports the transmission of J1939 diagnostic messages and AC generator parameters, making it a valuable tool for marine applications.
Installation and configuration are straightforward, with the device including four mounting screws and a female micro field attachable connector. Comprehensive user instructions are provided to ensure optimal performance. The Maretron Marine Network Gateway is NMEA 2000 approved and certified by FCC and CE, making it a trusted choice for marine electronics.
Features
- NMEA 2000 And J1939 Interfaces
- Waterproof Connectors
- Sealed Waterproof Enclosure
- Translates J1939 Engine And Transmission Messages To Equivalent NMEA 2000 Messages
- Capable Of Passing J1939 Diagnostic Messages
- Passes J1939 AC Generator Parameters Through To The NMEA 2000 Network
- J1939 Interface Is Opto-Isolated From NMEA 2000 Eliminating Potential Ground Loops
- Obtains Power From NMEA 2000 Port
- Interfaces Dometic MarineAir Elite And CruiseAir Q-Logic Air Conditioners To NMEA 2000 Network
Specifications
- Manufacturer: Maretron
- Manufacturer Part Number: J2K100-01
- Used To: J1939 Data To Marine Digital Interface
- Voltage: 9 To 32 Volt
- Ampere Rating: 0.15 Amp
- Dimensions: 3.46 Inch Length x 3.11 Inch Width x 1.38 Inch Height
- Waterproof: IP67 Waterproof
- Certifications: NMEA 2000 Approved/ IEC 61162-3/ IEC 60945/ FCC Certified/ CE Certified
- Includes: With 4 Mounting Screws/ Female Micro Field Attachable Connector/ User Manual
