Connect your devices to NMEA 2000 networks seamlessly.

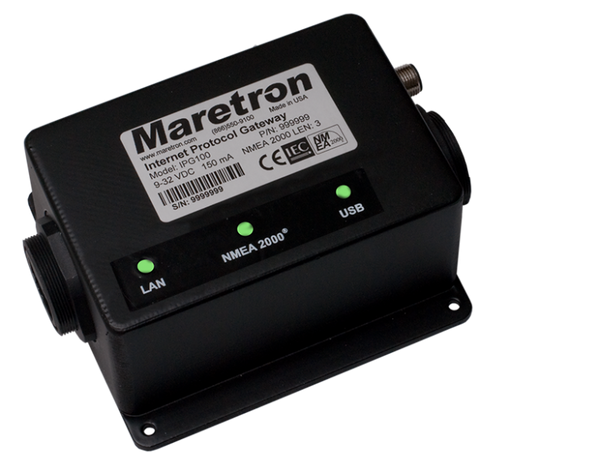

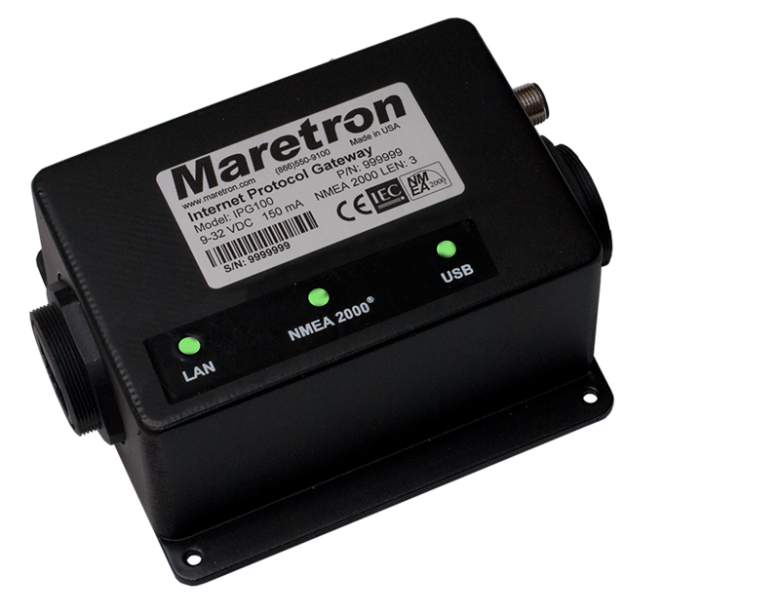

The Maretron Marine Network Gateway is designed to facilitate the connection of PCs, Macs, tablets, and smartphones to an NMEA 2000 network. This device allows users to monitor and control their vessels using Maretron's N2KView software, providing flexibility beyond traditional display methods. With its NMEA 2000 and Ethernet data ports, the gateway enables seamless communication between onboard networks and Internet Protocol enabled devices, utilizing standard networking technology such as routers and wireless modems.
This gateway supports Maretron's Real Time Cloud Service, allowing users to remotely access their vessel from anywhere in the world. The device operates within a voltage range of 9 to 32 volts and features reverse battery protection and load dump protection, ensuring reliable performance in various conditions. Its robust design includes an IP67 waterproof rating, making it suitable for marine environments.
The Maretron Marine Network Gateway measures 5 inches in length, 4.5 inches in width, and 2.375 inches in height, making it compact for installation. It is certified by NMEA 2000, IEC 61162-3, IEC 60945, FCC, and CE, ensuring compliance with industry standards. The package includes four stainless steel mounting screws and a user manual for easy installation.
Features
- NMEA 2000 Interface
- 10/100 Mbps Ethernet LAN Interface
- Runs Embedded Version Of Maretron N2KServer Software
- USB Port For N2KView Hardware License Key
- Dedicated Platform For N2KView Clients
- Supports Maretron Cloud Services, Which Allows You To Easily Connect To Your Boat’s Network From Anywhere With Working Internet Connection
Specifications
- Manufacturer: Maretron
- Manufacturer Part Number: IPG100-01
- Used To: PC/ Mac/ Tablet/ Smartphone To An NMEA 2000 Network
- Voltage: 9 To 32 Volt
- Ampere Rating: 0.15 Amp

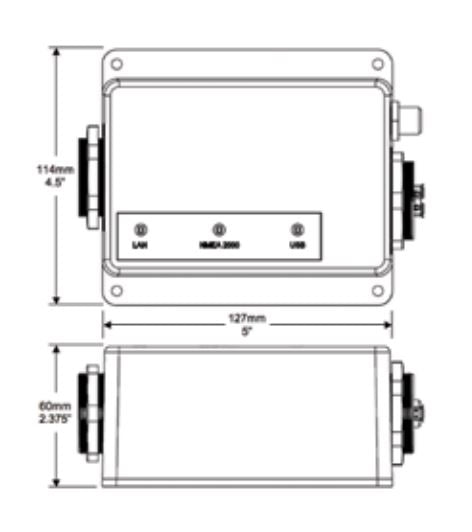

- Dimensions: 5 Inch Length x 4-1/2 Inch Width x 2-3/8 Inch Height
- Waterproof: IP67 Waterproof
- Certifications: NMEA 2000 Approved/ IEC 61162-3/ IEC 60945/ FCC Certified/ CE Certified
- Includes: With 4 Stainless Steel Mounting Screws/ User Manual
Technical Documents
