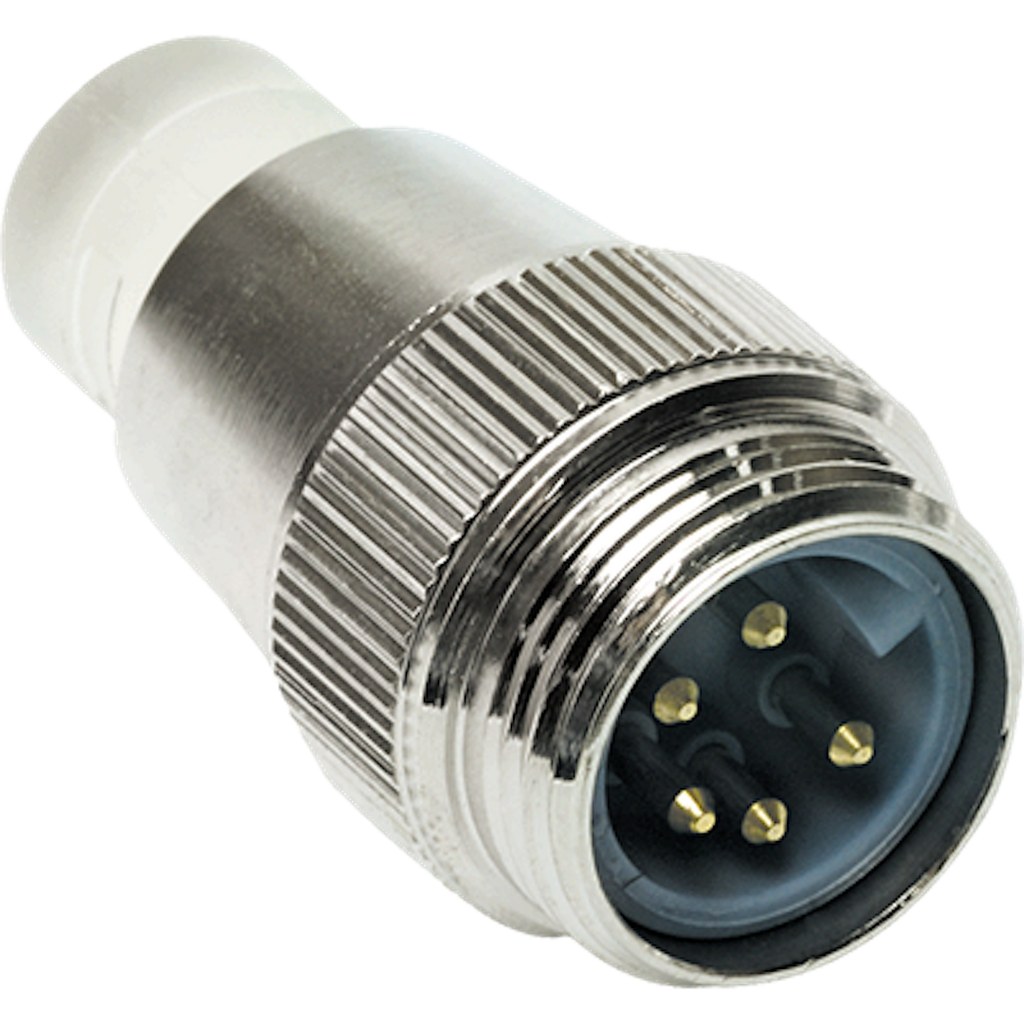

Maretron Marine Network Cable Terminator (MPN: TRL-NM)

Essential component for NMEA 2000 network reliability and performance.

The Maretron Marine Network Cable Terminator is a critical component designed for use on NMEA 2000 networks. It is placed at each end of the network trunk cable to ensure proper termination and functionality. This mini 5-pin male termination resistor is constructed from clear thermoplastic, providing visibility and durability in marine environments. With an IP67 waterproof rating, it is capable of withstanding harsh conditions, including submersion in bilge water.

This termination resistor features a screw terminal for a secure and positive connection, ensuring that power connections are made correctly. Additionally, the diagnostic versions of this product allow for easy monitoring of polarity, providing immediate feedback on the status of power connections. The Maretron Marine Network Cable Terminator operates effectively within a temperature range of -40 to 176 degrees Fahrenheit, making it suitable for various marine applications.

Approved under NMEA 2000 and IEC 61162-3 standards, this termination resistor is essential for maintaining the integrity and performance of your marine network. Its single unit design simplifies installation while ensuring compliance with industry standards.

Features

• Diagnostic Versions Indicate Correct Polarity At A Glance To Ensure Power Connections Have Been Made Properly
• Screw Connector For Positive Connection
• Termination Resistors Are Used To Terminate Both Ends Of The Trunk Line
• Waterproof Rated To IP67

Specifications

• Manufacturer: Maretron
• Manufacturer Part Number: TRL-NM
• Used To: On NMEA 2000 Network And Placed At Each End Of Network Trunk Cable

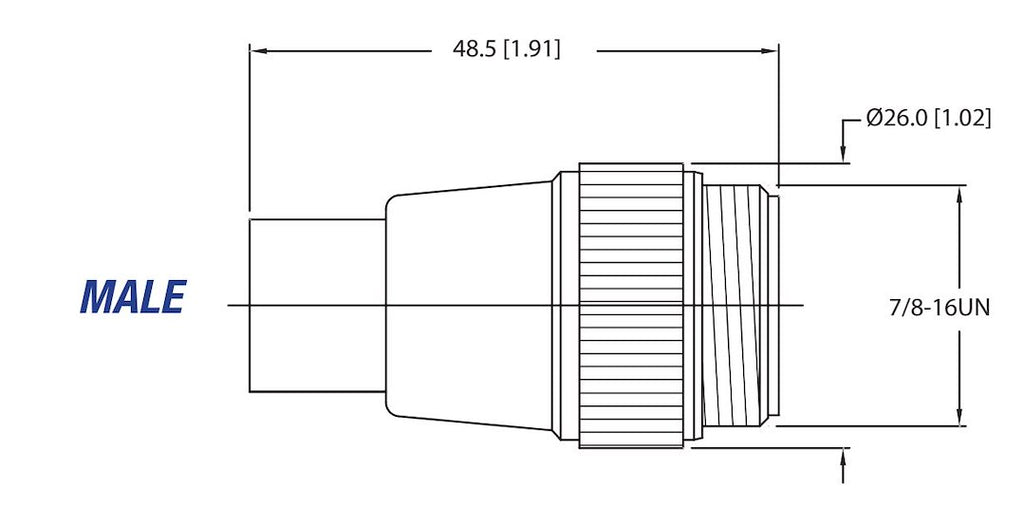

• Type: Mini 5-Pin Male Termination Resistor
• Color: Clear
• Quantity: Single

Technical Documents

• Mini_Terms_90_Reducer_Datasheet.pdf
