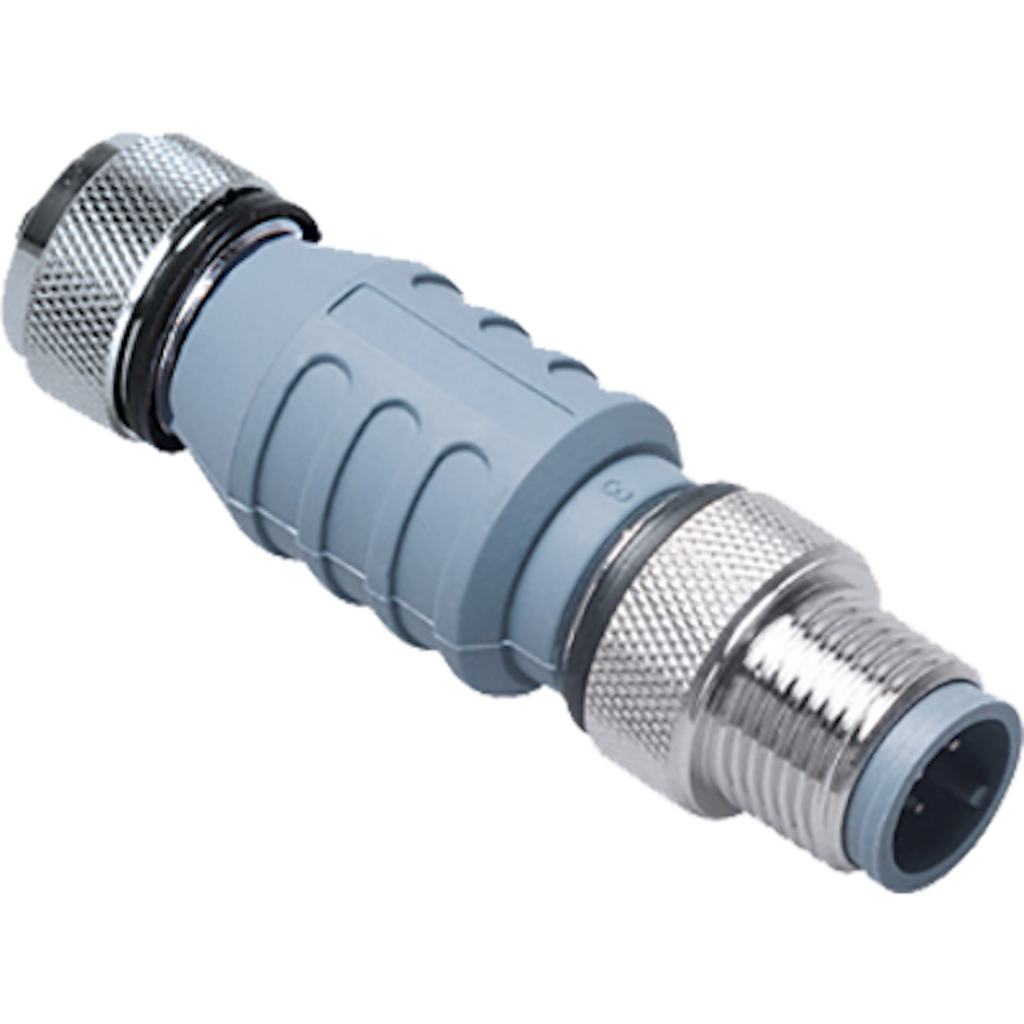

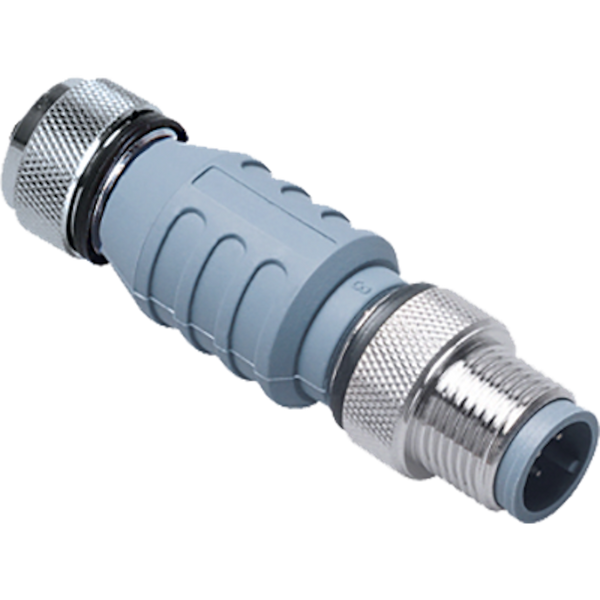

Maretron Marine Network Cable Terminator (MPN: IT-CM-CF)

Essential component for NMEA 2000 network termination at devices.

The Maretron Marine Network Cable Terminator is designed for use in NMEA 2000 networks, specifically where the network is terminated at devices such as GPS or weather stations. This micro inline 5-pin male to 5-pin female terminator ensures proper termination of the trunk line, which is crucial for network integrity and performance. Constructed from durable black thermoplastic, this single terminator is built to withstand harsh marine environments.

Featuring a screw terminal connector, the terminator provides secure and reliable connections, minimizing the risk of signal loss. It is waterproof rated to IP68, ensuring protection against water ingress, making it suitable for use in various marine applications. The Maretron terminator is NMEA 2000 approved and complies with IEC 61162-3 standards, ensuring compatibility and reliability in marine network systems.

In every NMEA 2000 network, two termination resistors are required, one at each end of the trunk line. Typically, a male termination is preferred as it directs signals back to the power source. However, in scenarios where a female terminator is necessary, this product serves that purpose effectively. The Maretron Marine Network Cable Terminator is an essential component for maintaining the functionality and reliability of marine electronic systems.

Features

• Termination Resistors Are Used To Terminate Both Ends Of The Trunk Line
• Screw Terminal Connector For Positive Connections
• Inline Terminator Is Used Where The Network Is Terminated At A Product
• Waterproof Rated To IP67

Specifications

• Manufacturer: Maretron
• Manufacturer Part Number: IT-CM-CF
• Used To: Where The Network Is Terminated At GPS/ Weather Station

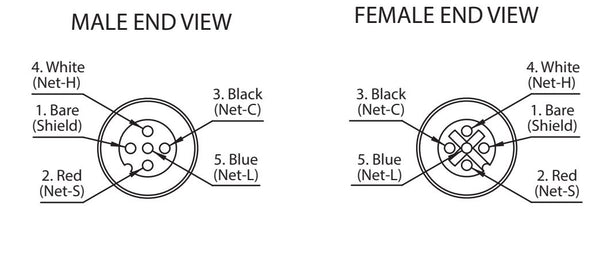

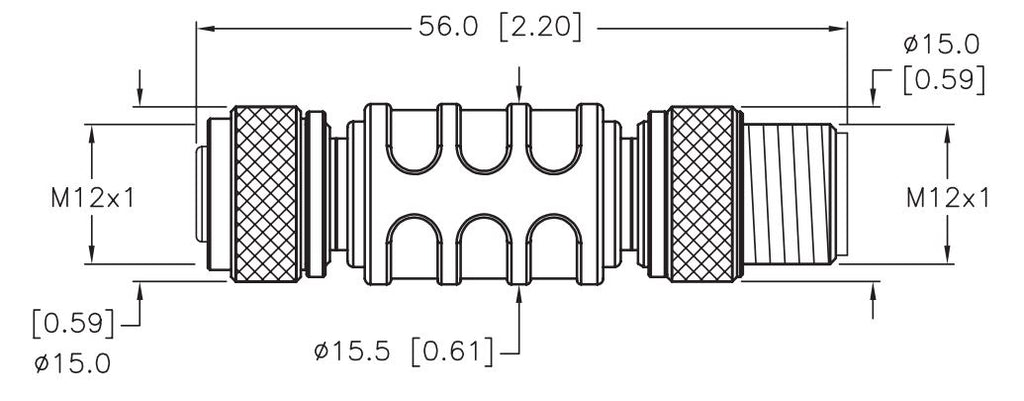

• Type: Micro Inline 5-Pin Male X 5-Pin Female Terminator
• Color: Black
• Quantity: Single

Technical Documents

• Micro_Term_Feed_thru_Multi_Datasheet.pdf
