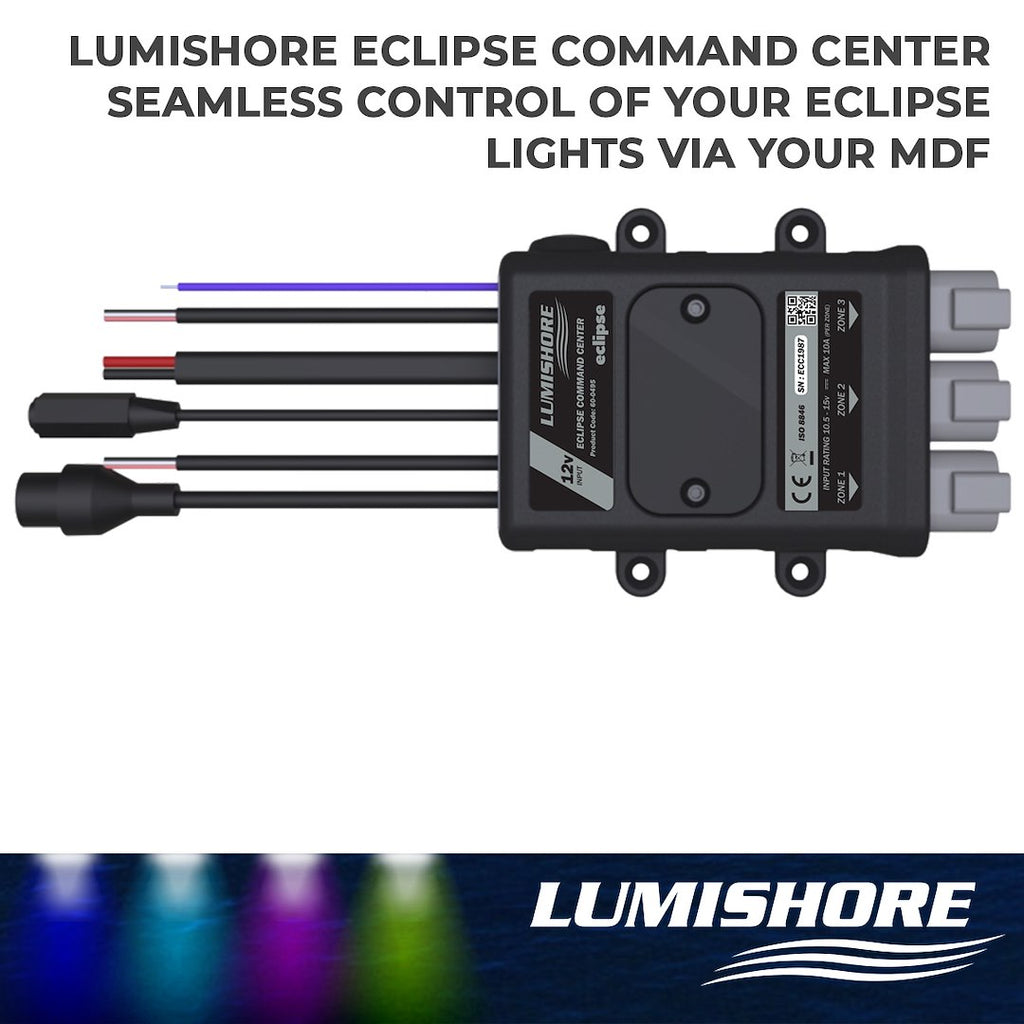

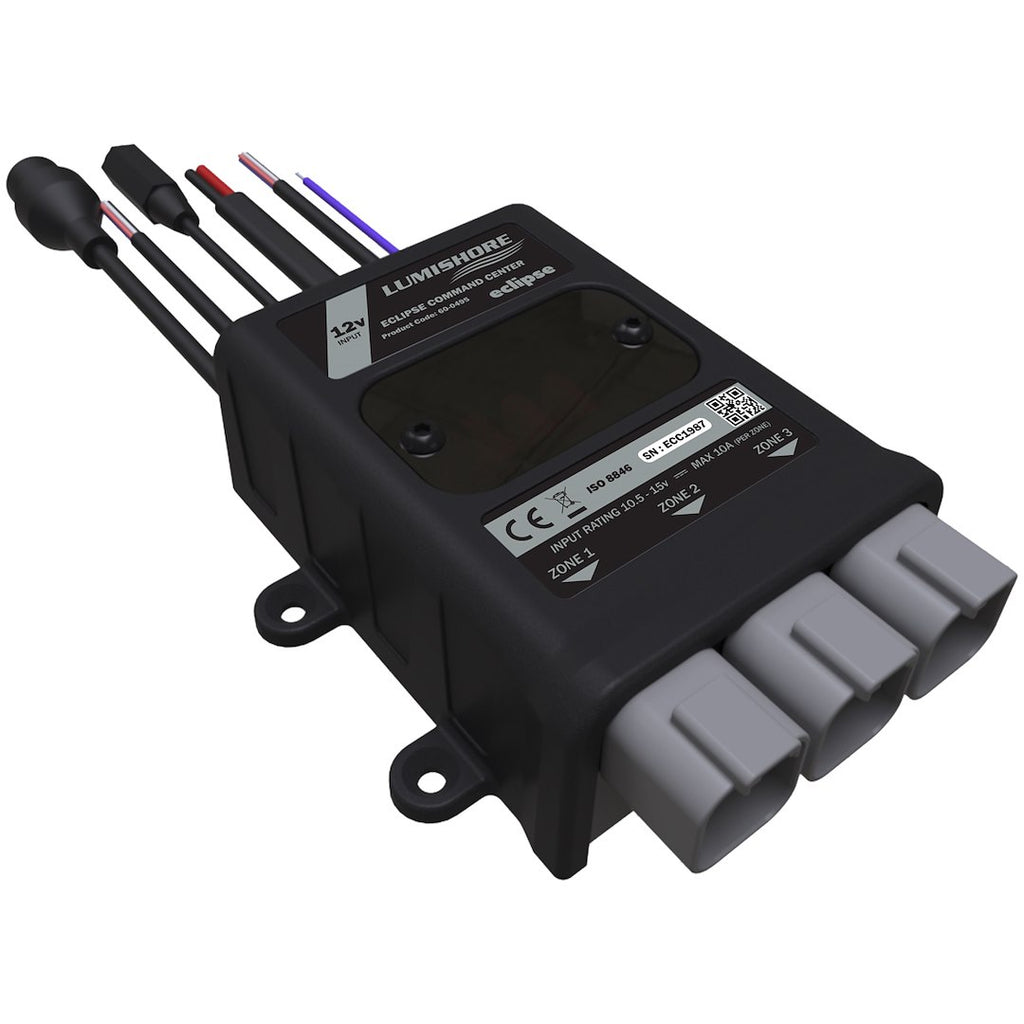

Lumishore Light Control Module (MPN: 010-04486-00)

Advanced control for seamless integration of ECLIPSE lighting systems.

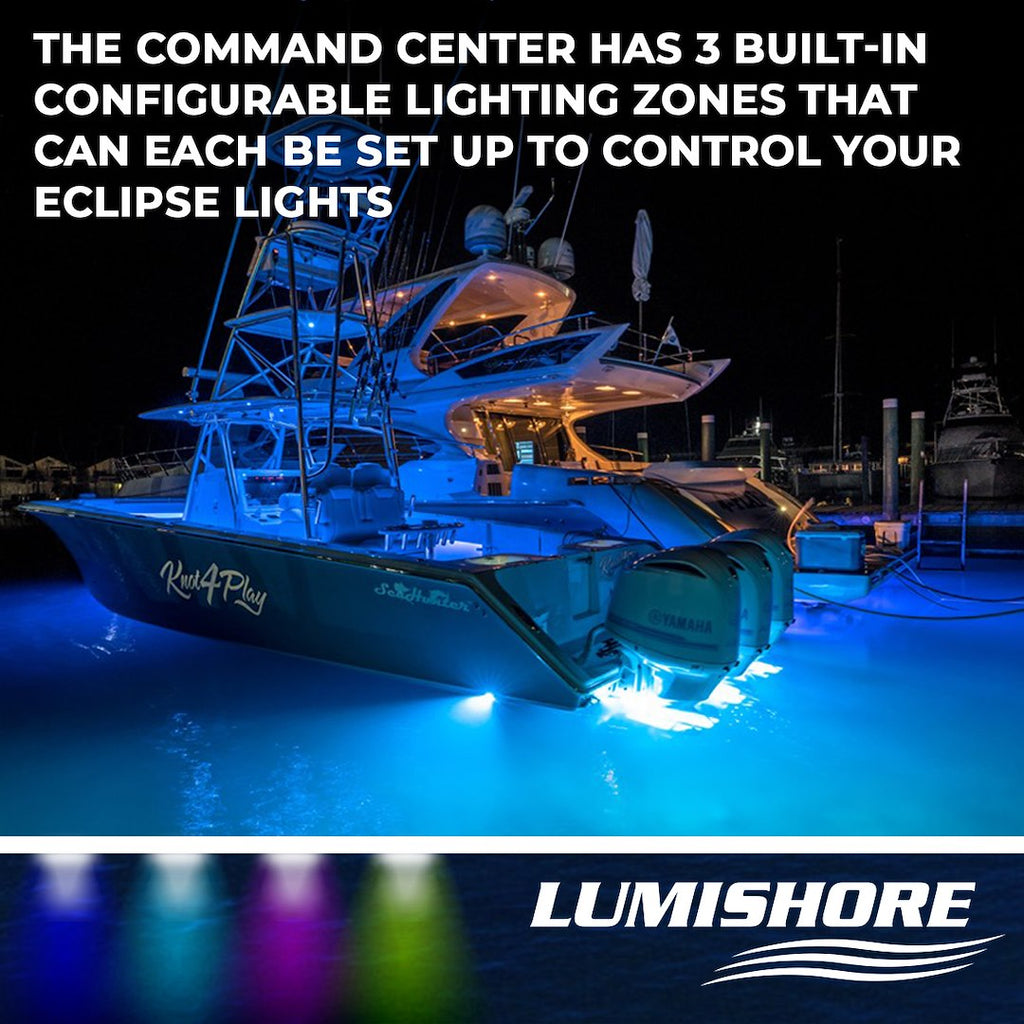

The Lumishore Light Control Module is designed for efficient management of ECLIPSE lighting systems, allowing users to control up to 48 lights across three zones. Each zone can accommodate 16 lights, providing extensive coverage and flexibility in lighting arrangements. This module operates on a 12 Volt DC power supply and supports a maximum of 10 amps per zone, ensuring reliable performance under various conditions.

Constructed from durable ABS plastic, the module is built to withstand marine environments with an IP67 waterproof rating, making it suitable for both underwater and above-water applications. The plug and play installation simplifies setup, allowing for quick integration into existing systems. Additionally, the module features WiFi control capabilities and includes a surge protector for enhanced safety and convenience.

Lumishore's commitment to advanced LED lighting technology is evident in this product, which combines robust construction with sophisticated control features. The multi-function display interface provides intuitive access to lighting settings, ensuring users can easily customize their lighting experience.

Features

• Durable ABS Plastic Construction
• Used To Seamless Integration And Control ECLIPSE Lights Through Multi Function Display
• IP67 Waterproof
• Plug And Play Installation

Specifications

• Manufacturer: Lumishore USA
• Manufacturer Part Number: 010-04486-00
• Number of Zones: 3
• Lights Per Zone: 16
• Power Supply: 12 Volt
• Ampere: 10 Amp
• Connection Type: Plug And Play
• Dimensions: 4.24 Inch Width X 1.63 Inch Height
• Color: Black
• Material: ABS Plastic
• Waterproof Rating: IP67 Rating Waterproof
• Includes: With WiFi Control/ Surge Protector

Technical Documents

• 45-0201-Rev1-ECLIPSE-Command-Center-Installation-Manual_2022-09-13-095444_pdjd.pdf
• 60-0495_ECLIPSE_COMMAND_CENTER_DS_0722-1.pdf
