Lokar Performance Auto Trans Shifter Indicator Sensor (MPN: CINS-17003)

Versatile mounting options for 200-4R transmission applications.

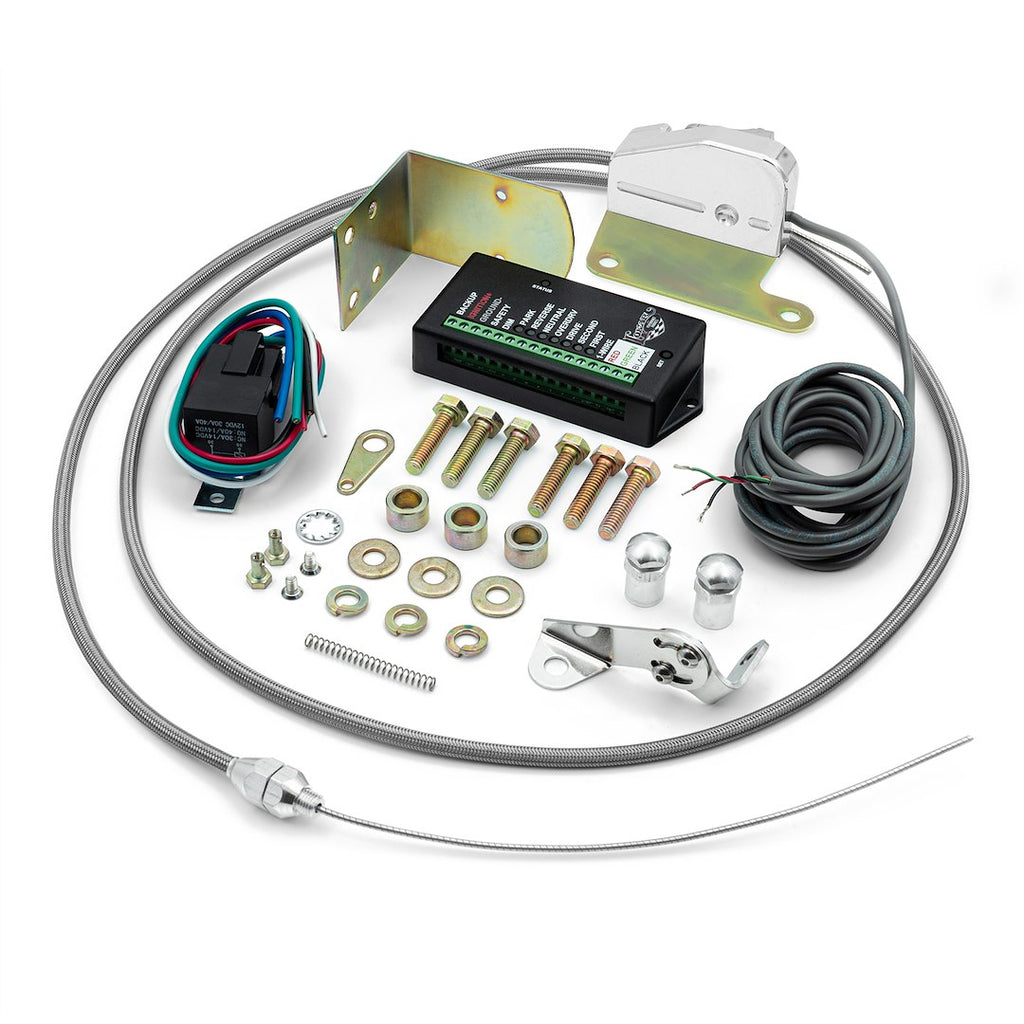

The Lokar Performance Auto Trans Shifter Indicator Sensor is engineered for use with the 200-4R transmission, providing a reliable and flexible solution for shift indication. This system features a cable-operated design that allows for versatile mounting options, including locations on the transmission, frame rail, floor pan, firewall, or inner fender well. For those requiring remote installation, a Remote Mounting Kit is available for placement in less accessible areas such as under the dash or in the trunk.

Constructed from high-quality 6061-T6 billet aluminum, the sensor housing is CNC machined for precision and durability. The included programmable solid-state circuit board within the decoder box ensures long-lasting LED indicators, while the system comes complete with a 5-foot U-Cut-To-Fit stainless steel braided housing and 6-foot inner control wire. Additionally, the package includes all necessary stainless steel and zinc-plated mounting hardware for straightforward installation.

This shifter indicator sensor also integrates essential features such as a built-in back-up light circuit and a neutral safety switch, enhancing the overall functionality and safety of the transmission system. Color-coded wiring instructions are provided to facilitate an easy and efficient installation process.

Features

• Arm And Ball-Milled Sensor Housing CNC Machined From 6061-T6 Billet Aluminum. Zinc Plated Universal Angled Mounting Brackets
• Programmable Solid State Circuit Board Within The Decoder Box. Long Life LED Indicators
• Cable Operated For Flexibility In Mounting
• Includes 5 Foot Of "U-Cut-To-Fit" Stainless Steel Braided Housing And 6 Foot Of Inner Control Wire, Stainless Steel And Zinc Plated Mounting Hardware
• Back-Up Light Circuit Built-In
• Neutral Safety Switch Built-In
• Color-Coded Wiring Instructions For Easy Installation

Specifications

• Manufacturer: Lokar Performance
• Manufacturer Part Number: CINS-17003
• Compatibility: 200-4R Transmission
• Includes Cable: Yes
• Includes Decoder Box: Yes
• Includes Mounting Bracket: Yes

Compatibility / Fit

• 1982-1985 Avanti II
• 1981-1989 Buick Electra
• 1981-1983 Buick Estate Wagon
• 1981-1990 Buick LeSabre
• 1982-1987 Buick Regal
• 1987-1990 Cadillac Brougham
• 1985-1985 Cadillac Commercial Chassis
• 1981-1984 Cadillac DeVille
• 1981-1986 Cadillac Fleetwood
• 1981-1990 Chevrolet Caprice
• 1982-1987 Chevrolet El Camino
• 1981-1985 Chevrolet Impala
• 1982-1983 Chevrolet Malibu
• 1982-1988 Chevrolet Monte Carlo
• 1984-1987 GMC Caballero
• 1981-1984 Oldsmobile 98
• 1981-1990 Oldsmobile Custom Cruiser
• 1982-1984 Oldsmobile Cutlass Calais
• 1982-1983 Oldsmobile Cutlass Cruiser
• 1985-1987 Oldsmobile Cutlass Salon
• 1982-1988 Oldsmobile Cutlass Supreme
• 1981-1985 Oldsmobile Delta 88
• 1982-1985 Oldsmobile Toronado
• 1981-1981 Pontiac Bonneville
• 1983-1986 Pontiac Bonneville
• 1981-1981 Pontiac Catalina
• 1989-1989 Pontiac Firebird
• 1983-1987 Pontiac Grand Prix
• 1983-1986 Pontiac Parisienne
• 1987-1989 Pontiac Safari

Technical Documents

• GM_All_PartNoscableop-sensor-kit-GM-trans.pdf
