Lokar Performance Auto Trans Shifter Indicator Sensor (MPN: CINS-17002)

Versatile mounting options for GM 4L60E and 4L80E transmissions

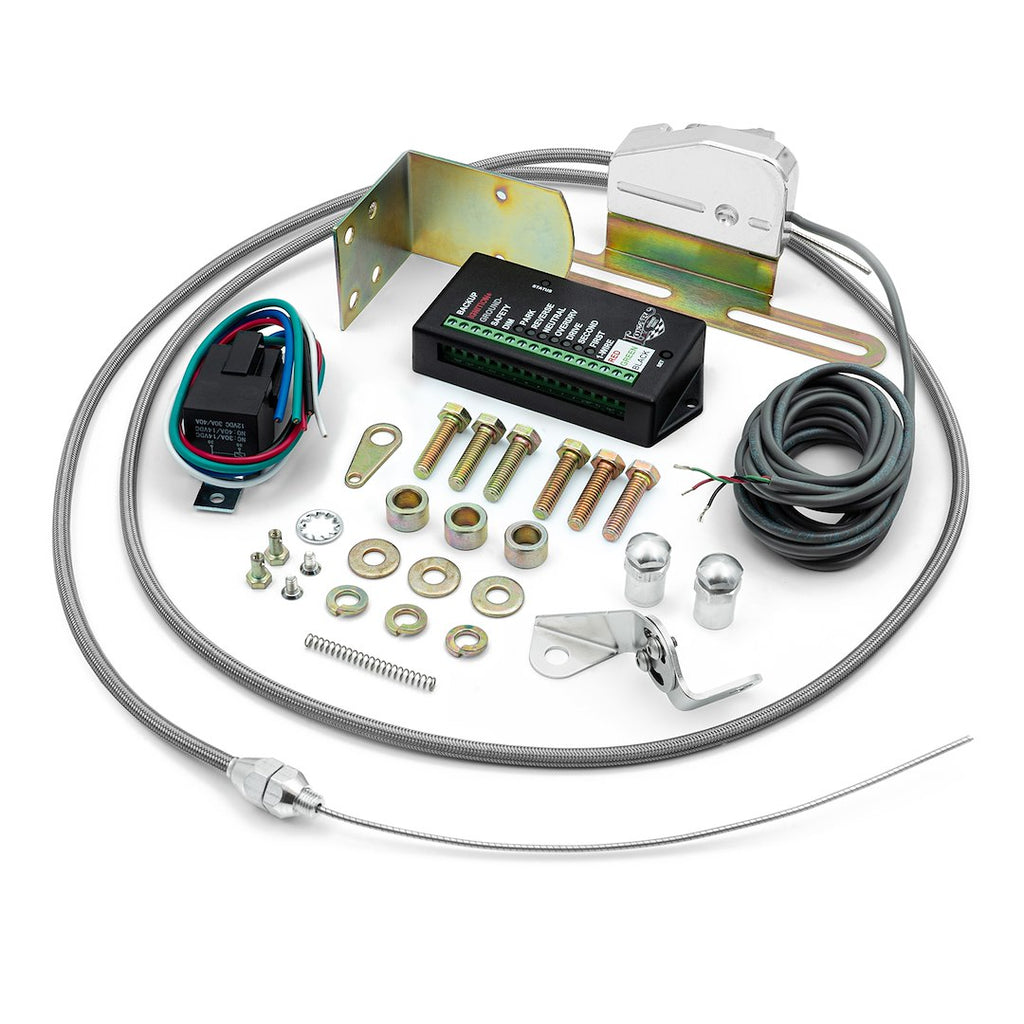

The Lokar Performance Auto Trans Shifter Indicator Sensor is engineered for compatibility with GM 4L60E and 4L80E transmissions. This sensor features a cable-operated design that allows for flexible mounting in various locations, including the transmission, frame rail, floor pan, firewall, or inner fender well. For those requiring remote installation, a Remote Mounting Kit is available for placement under the dash, behind the seat, or in the trunk.

Constructed from high-quality 6061-T6 billet aluminum, the arm and ball-milled sensor housing ensures durability and reliability. The unit includes a programmable solid-state circuit board within the decoder box, providing long-lasting LED indicators for clear visibility. The package comes complete with a 5-foot "U-Cut-To-Fit" stainless steel braided housing and 6-foot inner control wire, along with stainless steel and zinc-plated mounting hardware for easy installation.

Additional features include a built-in back-up light circuit and a neutral safety switch, enhancing the functionality of the shifter indicator. Color-coded wiring instructions simplify the installation process, making it accessible for users with varying levels of technical expertise.

Features

• Arm And Ball-Milled Sensor Housing CNC Machined From 6061-T6 Billet Aluminum. Zinc Plated Universal Angled Mounting Brackets
• Programmable Solid State Circuit Board Within The Decoder Box. Long Life LED Indicators
• Cable Operated For Flexibility In Mounting
• Includes 5 Foot Of "U-Cut-To-Fit" Stainless Steel Braided Housing And 6 Foot Of Inner Control Wire, Stainless Steel And Zinc Plated Mounting Hardware
• Back-Up Light Circuit Built-In
• Neutral Safety Switch Built-In
• Color-Coded Wiring Instructions For Easy Installation

Specifications

• Manufacturer: Lokar Performance
• Manufacturer Part Number: CINS-17002
• Compatibility: GM 4L60E/ 4L80E Transmissions
• Includes Cable: Yes
• Includes Decoder Box: Yes
• Includes Mounting Bracket: Yes

Compatibility / Fit

• 1994-1996 Buick Commercial Chassis
• 2004-2007 Buick Rainier
• 1994-1996 Buick Roadmaster
• 1994-1996 Cadillac Commercial Chassis
• 1999-2000 Cadillac Escalade
• 2002-2005 Cadillac Escalade
• 1994-1996 Cadillac Fleetwood
• 1993-2005 Chevrolet Astro
• 2007-2008 Chevrolet Avalanche
• 2002-2006 Chevrolet Avalanche 1500
• 1991-1991 Chevrolet Blazer
• 1993-2005 Chevrolet Blazer
• 1991-1999 Chevrolet C1500
• 1992-1999 Chevrolet C1500 Suburban
• 1991-2000 Chevrolet C2500
• 1992-1999 Chevrolet C2500 Suburban
• 1991-2000 Chevrolet C3500
• 1991-2002 Chevrolet C3500HD
• 1994-2002 Chevrolet Camaro
• 1994-1996 Chevrolet Caprice
• 2004-2012 Chevrolet Colorado
• 1994-2004 Chevrolet Corvette
• 1996-2014 Chevrolet Express 1500
• 1996-2009 Chevrolet Express 2500
• 2007-2009 Chevrolet Express 3500
• 2009-2009 Chevrolet Express 4500
• 1993-1995 Chevrolet G10
• 1993-1995 Chevrolet G20
• 1991-1996 Chevrolet G30
• 1994-1996 Chevrolet Impala
• 1991-1999 Chevrolet K1500
• 1992-1999 Chevrolet K1500 Suburban
• 1991-2000 Chevrolet K2500
• 1992-1999 Chevrolet K2500 Suburban
• 1991-2000 Chevrolet K3500
• 1991-1999 Chevrolet P30
• 1991-1991 Chevrolet R1500 Suburban
• 1991-1991 Chevrolet R2500 Suburban
• 1991-1991 Chevrolet R3500
• 1993-2004 Chevrolet S10
• 1993-1994 Chevrolet S10 Blazer
• 1999-2013 Chevrolet Silverado 1500
• 2007-2007 Chevrolet Silverado 1500 Classic
• 2001-2003 Chevrolet Silverado 1500 HD
• 2005-2006 Chevrolet Silverado 1500 HD
• 2007-2007 Chevrolet Silverado 1500 HD Classic
• 1999-2004 Chevrolet Silverado 2500
• 2001-2006 Chevrolet Silverado 2500 HD
• 2007-2007 Chevrolet Silverado 2500 HD Classic
• 2001-2006 Chevrolet Silverado 3500
• 2007-2007 Chevrolet Silverado 3500 Classic
• 2003-2004 Chevrolet SSR
• 2000-2008 Chevrolet Suburban 1500
• 2000-2007 Chevrolet Suburban 2500
• 1995-2009 Chevrolet Tahoe
• 2002-2009 Chevrolet Trailblazer
• 2002-2006 Chevrolet Trailblazer EXT
• 1991-1991 Chevrolet V1500 Suburban
• 1991-1991 Chevrolet V2500 Suburban
• 1991-1991 Chevrolet V3500
• 1991-1999 GMC C1500
• 1992-1999 GMC C1500 Suburban
• 1991-2000 GMC C2500
• 1992-1999 GMC C2500 Suburban
• 1991-2000 GMC C3500
• 1991-2002 GMC C3500HD
• 2004-2012 GMC Canyon
• 2002-2009 GMC Envoy
• 2002-2006 GMC Envoy XL
• 2004-2005 GMC Envoy XUV
• 1993-1995 GMC G1500
• 1993-1995 GMC G2500
• 1992-1996 GMC G3500
• 1991-1991 GMC Jimmy
• 1993-2001 GMC Jimmy
• 1991-1999 GMC K1500
• 1992-1999 GMC K1500 Suburban
• 1991-2000 GMC K2500
• 1992-1999 GMC K2500 Suburban
• 1991-2000 GMC K3500
• 1991-1999 GMC P3500
• 1991-1991 GMC R1500 Suburban
• 1991-1991 GMC R2500 Suburban
• 1993-2005 GMC Safari
• 1996-2014 GMC Savana 1500
• 1996-2001 GMC Savana 2500
• 2003-2009 GMC Savana 2500
• 2006-2009 GMC Savana 3500
• 2009-2009 GMC Savana 4500
• 1999-2013 GMC Sierra 1500
• 2007-2007 GMC Sierra 1500 Classic
• 2001-2003 GMC Sierra 1500 HD
• 2005-2006 GMC Sierra 1500 HD
• 2007-2007 GMC Sierra 1500 HD Classic
• 1999-2004 GMC Sierra 2500
• 2001-2006 GMC Sierra 2500 HD
• 2007-2007 GMC Sierra 2500 HD Classic
• 2001-2006 GMC Sierra 3500
• 2007-2007 GMC Sierra 3500 Classic
• 1993-2004 GMC Sonoma
• 1993-1993 GMC Typhoon
• 1991-1991 GMC V1500 Suburban
• 1991-1991 GMC V2500 Suburban
• 1991-1991 GMC V3500
• 1992-2009 GMC Yukon
• 2000-2008 GMC Yukon XL 1500
• 2000-2007 GMC Yukon XL 2500
• 1993-1994 Oldsmobile Bravada
• 1996-2004 Oldsmobile Bravada
• 1994-2002 Pontiac Firebird
• 2004-2004 Pontiac GTO

Technical Documents

• GM_All_PartNoscableop-sensor-kit-GM-trans.pdf
