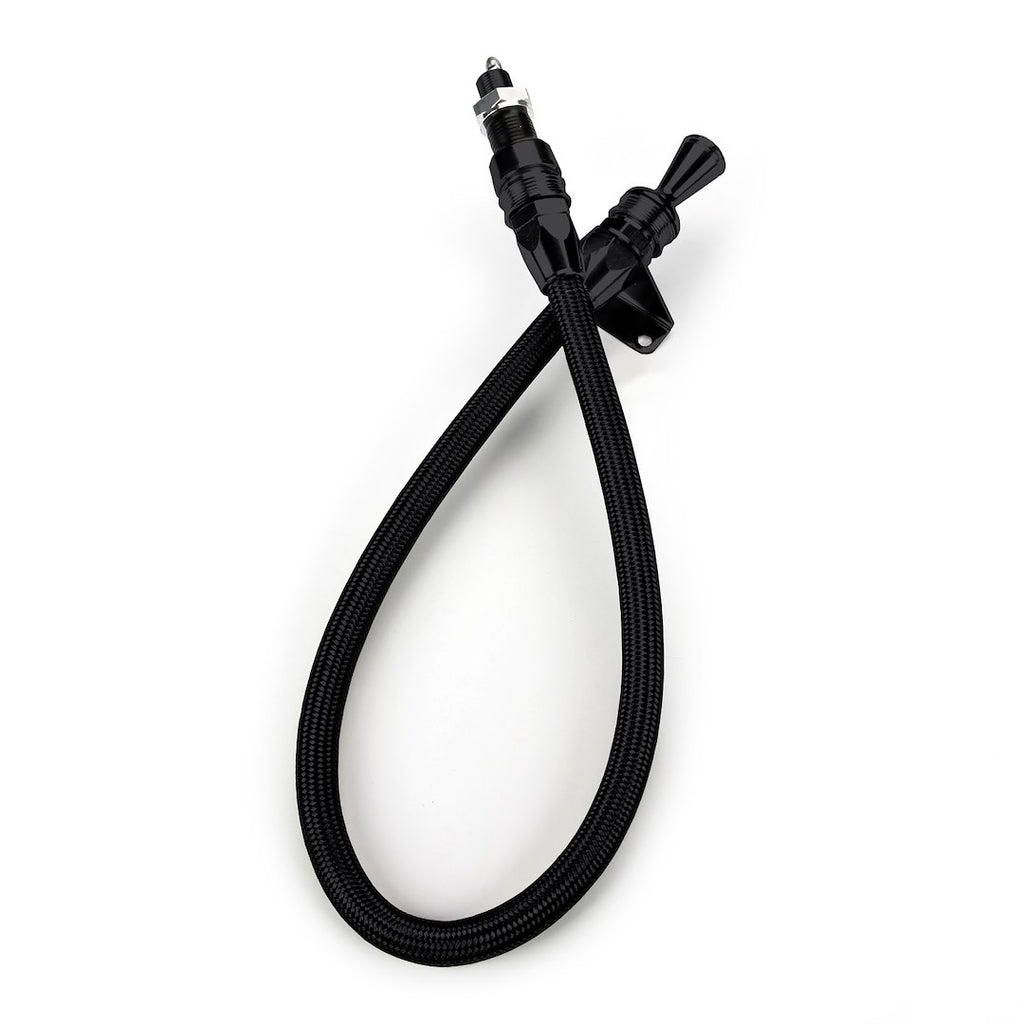

Lokar Performance Auto Trans Dipstick (MPN: X1211247)

Innovative design for 700-R4 transmissions with locking mechanism.

The Lokar Performance Auto Trans Dipstick is engineered specifically for use with 700-R4 transmissions, featuring a robust black stainless steel housing. This dipstick eliminates the need for a filler tube, preventing leaks during storage and ensuring a clean installation. The locking mechanism is designed to prevent the expulsion of the dipstick handle under transmission pressure, enhancing reliability during operation.

This product includes a bolt-in sealed pan fitting and comes with a transmission storage plug for quick changes and easy storage. The large filler tube is compatible with standard transmission funnels, making it user-friendly. Constructed from high-quality 6061-T6 aluminum and featuring a Teflon-lined stainless braided outer housing, this dipstick is built for durability and performance.

The flexible inner dipstick measuring cable allows for accurate fluid level readings, ensuring optimal transmission function. With its firewall mount design, this dipstick is suitable for various applications, making it a versatile addition to any automotive setup.

Features

• No Filler Tube Needed. No Pan Fitting Leaks During Storage
• Locking Mechanism Prevents Expulsion Of Dipstick Handle Under Trans Pressure. Trans And Firewall Mount Styles Supplied With Trans Storage Plug For Quick Change And Storage
• Bolt-In Sealed Pan Fitting. Spare Trans Fittings Available For Quick Transmission Changes
• Large Filler Tube Accepts Standard Transmission Funnels. Available With Firewall Mount Or Transmission Mount Bracket
• Made From 6061-T6 Aluminum
• Teflon-Lined Stainless Braided Outer Housing
• Flexible Inner Dipstick Measuring Cable

Specifications

• Manufacturer: Lokar Performance
• Manufacturer Part Number: X1211247
• Transmission Model: 700R4
• Locking: Yes
• Mounting Location: Firewall Mount
• Handle Color: Black
• Handle Material: Aluminum
• Includes Tube: Yes
• Tube Color: Black
• Tube Material: Stainless Steel

Compatibility / Fit

• 1991-1993 Buick Commercial Chassis
• 1988-1989 Buick Electra
• 1988-1988 Buick LeSabre
• 1984-1984 Buick Regal
• 1991-1993 Buick Roadmaster
• 1990-1992 Cadillac Brougham
• 1992-1993 Cadillac Commercial Chassis
• 1993-1993 Cadillac Fleetwood
• 1985-1992 Chevrolet Astro
• 1987-1993 Chevrolet Blazer
• 1982-1986 Chevrolet C10
• 1982-1986 Chevrolet C10 Suburban
• 1988-1992 Chevrolet C1500
• 1992-1992 Chevrolet C1500 Suburban
• 1982-1986 Chevrolet C20
• 1982-1986 Chevrolet C20 Suburban
• 1988-1992 Chevrolet C2500
• 1992-1992 Chevrolet C2500 Suburban
• 1982-1986 Chevrolet C30
• 1988-1990 Chevrolet C3500
• 1983-1993 Chevrolet Camaro
• 1982-1993 Chevrolet Caprice
• 1991-1994 Chevrolet Commercial Chassis
• 1982-1982 Chevrolet Corvette
• 1984-1993 Chevrolet Corvette
• 1982-1987 Chevrolet El Camino
• 1983-1992 Chevrolet G10
• 1983-1992 Chevrolet G20
• 1983-1992 Chevrolet G30
• 1982-1985 Chevrolet Impala
• 1982-1986 Chevrolet K10
• 1982-1986 Chevrolet K10 Suburban
• 1988-1992 Chevrolet K1500
• 1992-1992 Chevrolet K1500 Suburban
• 1982-1986 Chevrolet K20
• 1982-1986 Chevrolet K20 Suburban
• 1988-1992 Chevrolet K2500
• 1992-1992 Chevrolet K2500 Suburban
• 1982-1986 Chevrolet K30
• 1988-1989 Chevrolet K3500
• 1982-1986 Chevrolet K5 Blazer
• 1982-1983 Chevrolet Malibu
• 1982-1988 Chevrolet Monte Carlo
• 1980-1981 Chevrolet P20
• 1980-1981 Chevrolet P30
• 1987-1987 Chevrolet R10
• 1987-1988 Chevrolet R10 Suburban
• 1989-1991 Chevrolet R1500 Suburban
• 1987-1988 Chevrolet R20
• 1987-1988 Chevrolet R20 Suburban
• 1989-1989 Chevrolet R2500
• 1989-1991 Chevrolet R2500 Suburban
• 1987-1988 Chevrolet R30
• 1989-1991 Chevrolet R3500
• 1983-1993 Chevrolet S10
• 1983-1992 Chevrolet S10 Blazer
• 1987-1987 Chevrolet V10
• 1988-1988 Chevrolet V10 Suburban
• 1989-1991 Chevrolet V1500 Suburban
• 1987-1987 Chevrolet V20
• 1987-1988 Chevrolet V20 Suburban
• 1989-1991 Chevrolet V2500 Suburban
• 1987-1988 Chevrolet V30
• 1989-1991 Chevrolet V3500
• 1982-1986 GMC C1500
• 1988-1992 GMC C1500
• 1982-1986 GMC C1500 Suburban
• 1992-1992 GMC C1500 Suburban
• 1982-1986 GMC C2500
• 1988-1992 GMC C2500
• 1982-1986 GMC C2500 Suburban
• 1992-1992 GMC C2500 Suburban
• 1982-1986 GMC C3500
• 1988-1991 GMC C3500
• 1984-1987 GMC Caballero
• 1983-1992 GMC G1500
• 1983-1992 GMC G2500
• 1983-1992 GMC G3500
• 1982-1992 GMC Jimmy
• 1982-1986 GMC K1500
• 1988-1992 GMC K1500
• 1982-1986 GMC K1500 Suburban
• 1992-1992 GMC K1500 Suburban
• 1982-1986 GMC K2500
• 1988-1992 GMC K2500
• 1982-1986 GMC K2500 Suburban
• 1992-1992 GMC K2500 Suburban
• 1982-1986 GMC K3500
• 1988-1991 GMC K3500
• 1980-1981 GMC P2500
• 1980-1981 GMC P3500
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 1987-1989 GMC R2500
• 1987-1991 GMC R2500 Suburban
• 1987-1991 GMC R3500
• 1983-1990 GMC S15
• 1983-1991 GMC S15 Jimmy
• 1985-1992 GMC Safari
• 1991-1993 GMC Sonoma
• 1991-1991 GMC Syclone
• 1992-1992 GMC Typhoon
• 1987-1987 GMC V1500
• 1987-1991 GMC V1500 Suburban
• 1987-1987 GMC V2500
• 1987-1991 GMC V2500 Suburban
• 1987-1991 GMC V3500
• 1992-1992 GMC Yukon
• 1991-1992 Oldsmobile Bravada
• 1988-1988 Oldsmobile Custom Cruiser
• 1991-1992 Oldsmobile Custom Cruiser
• 1984-1984 Oldsmobile Cutlass Calais
• 1984-1984 Oldsmobile Cutlass Supreme
• 1988-1988 Oldsmobile Cutlass Supreme
• 1983-1986 Pontiac Bonneville
• 1983-1993 Pontiac Firebird
• 1983-1986 Pontiac Grand Prix
• 1983-1986 Pontiac Parisienne
• 1988-1988 Pontiac Safari

Technical Documents

• INS0075-AnchorTightLockTransDS.pdf
