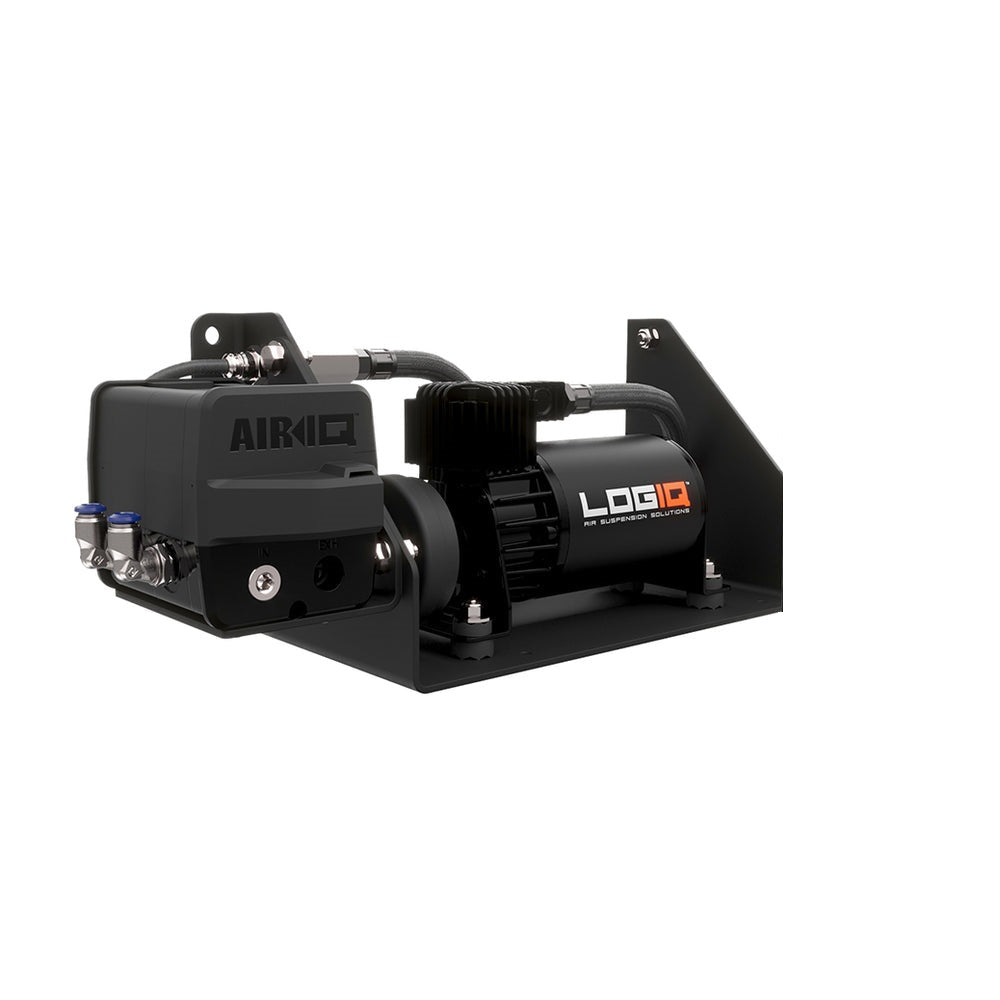

LOGIQ Air Ride Management System (MPN: 50-41200)

Advanced air suspension control with Bluetooth connectivity and smartphone app.

The LOGIQ Air Ride Management System offers precise control for load leveling air suspension and helper bags. This comprehensive air management package is factory assembled and rigorously tested to ensure reliable performance. The system features independent corner control with dual channel valving, allowing for effective management of offset loads.

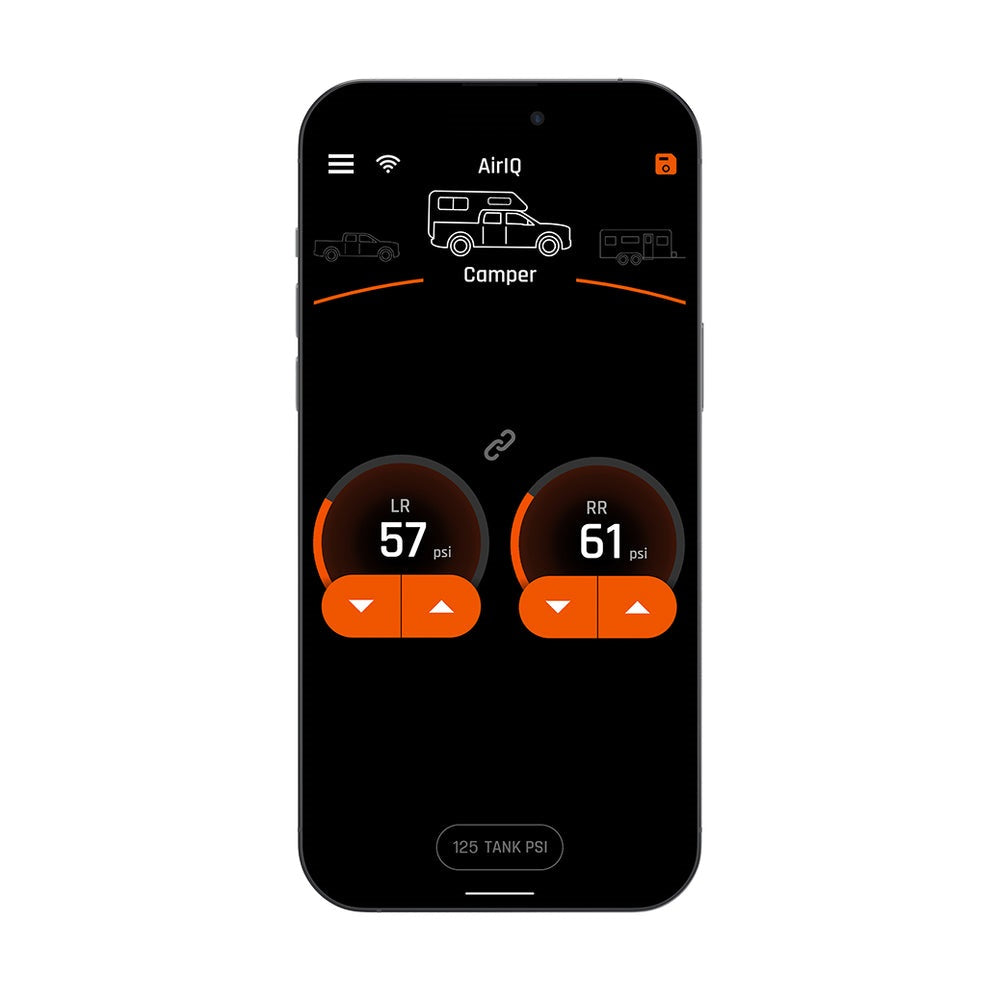

Equipped with a 150 PSI compressor and a 2-channel Bluetooth management system, users can control two air springs individually through the AirIQ app. The system is designed for universal compatibility and includes easy frame mounting brackets for straightforward installation.

With a 30 ampere current draw and IP54 rated components for the compressor, this system is built to withstand various environmental conditions. The included 20-foot wiring harness and 1/4 inch air line facilitate quick setup, making it a practical choice for enhancing vehicle suspension performance.

Features

• 2-Channel AirIQ Bluetooth Management System For Individual Control Of Two Air Springs From The AirIQ App
• LOGIQ 25 Percent Duty Cycle, 150 Pounds Per Square Inch Compressor With 2.03 CFM At 0 Pounds Per Square Inch
• App Controlled And Big Air Compressor
• Universally Compatible
• Easy Frame Mounting Brackets
• Each LOGIQ System Is Factory Tested To Ensure That Every Feature Is Fully Operational Out Of The Box
• Factory Tested
• Weather Sealed Relay And Harness
• Quick And Easy Installation

Specifications

• Manufacturer: LOGIQ
• Manufacturer Part Number: 50-41200
• Type: Smartphone Control Via Bluetooth
• Includes Digital Control Panel: No
• Includes Digital ECU: No
• Includes Pressure Sensors: No
• Includes Solenoid Harness: No
• Includes Ethernet Cable: No
• Includes Compressor: Yes
• Includes Fuse Holder: No
• Includes Fittings: Yes

Technical Documents

• AirIQ.pdf
• LOGIQ_Warranty_and_Return_Policy.pdf

Product Videos
