Powerful and reliable anchoring solution for serious boaters.

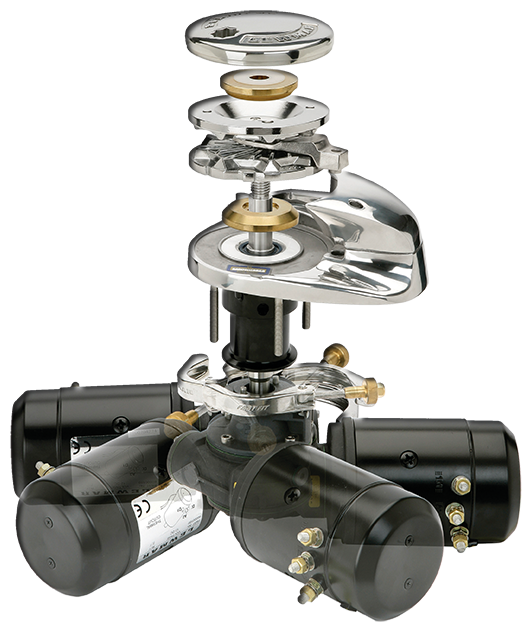

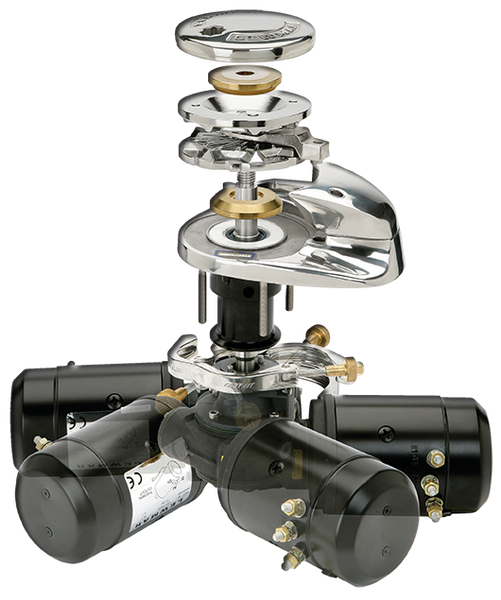

The Lewmar V Series Windlass is engineered for durability and performance, making it a top choice for boaters who demand reliability in challenging conditions. Constructed from robust stainless steel, this windlass features a vertical mount design that allows for efficient space utilization on the deck. With a maximum pull capacity of 1653 pounds and a working load limit of 414 pounds, it is capable of handling a variety of anchoring tasks with ease.
This windlass boasts a maximum line speed of 105 feet per minute, ensuring quick and efficient operation. The integrated rope-chain gypsy and cone clutch provide smooth control, while the optional manual override motor gearbox offers added versatility. The W.A.R.P drum and fall safe anchor lock enhance safety and functionality, making this windlass a dependable choice for any boating enthusiast.
With an ampere rating of 80 amps and a voltage rating of 12 volts, the Lewmar V Series Windlass is designed to deliver consistent power. Its compact dimensions of 8-3/4 inches in width and 6-5/8 inches in height make it suitable for various boat sizes. This windlass is compatible with a range of chain and rope sizes, including 002 to 10 millimeter DIN 766 and Campbell 3/8 inch S4/5/16 inch G40 chain, ensuring versatility in anchoring options.
Features
- Rope-Chain Gypsy
- Cone Clutch For Smooth, Easy Control
- Optional Manual Override Motor Gearbox
- W.A.R.P Drum
- Fall Safe Anchor Lock
- Worm Gearbox
Specifications
- Manufacturer: Lewmar
- Manufacturer Part Number: 6671011108-138
- Mount Type: Vertical
- Maximum Pull: 1653 Pound
- Working Load Limit: 414 Pound
- Maximum Line Speed: 105 Feet Per Minute
- Size: 8-3/4 Inch Width X 6-5/8 Inch Height
- Chain/ Rope Size: 002 To 10 Millimeter DIN 766/ Campbell 3/8 Inch S4/ 5/16 Inch G40 Chain
- Material: Stainless Steel
- Ampere Rating: 80 Amp
- Voltage Rating: 12 Volt
- Motor Power: 700 Watt
