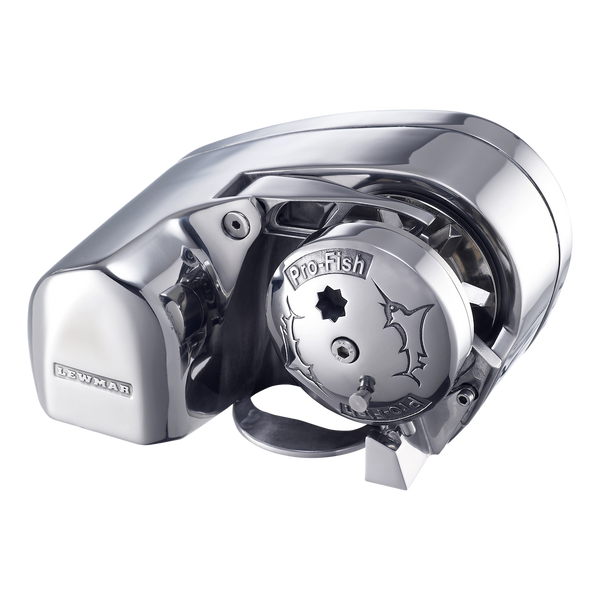

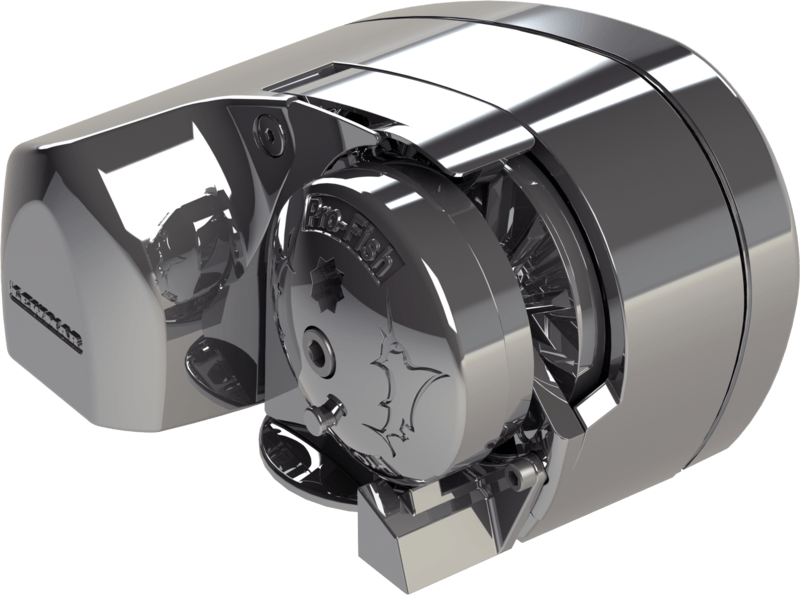

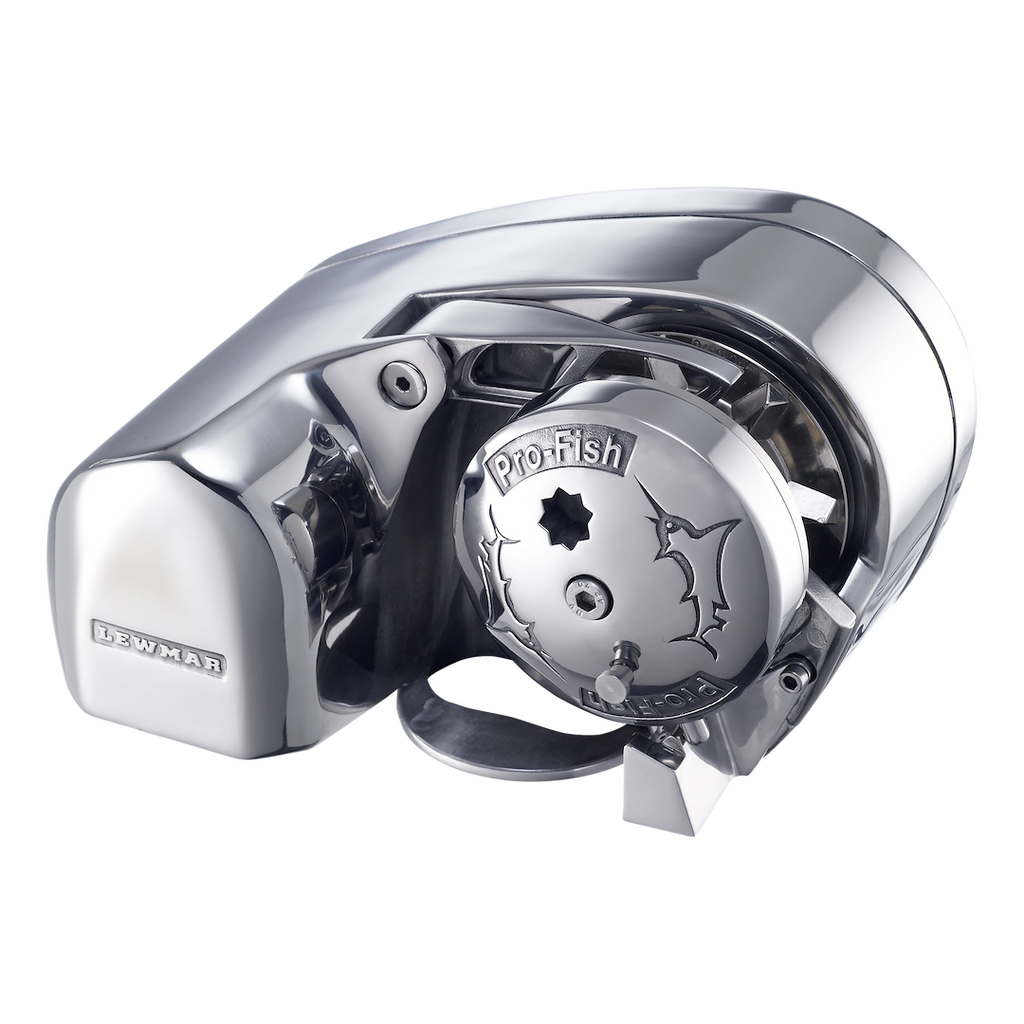

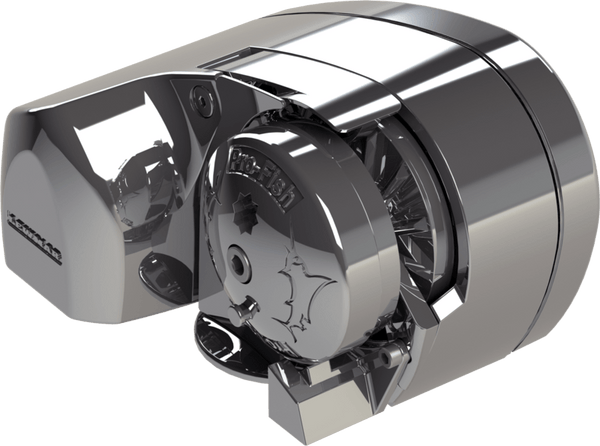

Lewmar Pro-Fish Horizontal Mount Windlass (MPN: 6656211967-310)
Lewmar Pro-Fish Horizontal Mount Windlass (MPN: 6656211967-310)
Lewmar Pro-Fish Horizontal Mount Windlass (MPN: 6656211967-310)

Lewmar Pro-Fish Horizontal Mount Windlass (MPN: 6656211967-310)

  • Sale
  • $1,672.74
Accepted Credit Cards

Efficient anchoring with advanced features for marine applications.

The Lewmar Pro-Fish Horizontal Mount Windlass is engineered for reliable performance in marine environments. With a maximum pull capacity of 700 pounds and a working load limit of 175 pounds, this windlass is designed to handle demanding anchoring tasks. It features a maximum line speed of 105 feet per minute, ensuring quick and efficient operation when deploying or retrieving anchors.

Constructed from durable stainless steel, the windlass is built to withstand harsh marine conditions. The redesigned control arm enhances performance with higher spring tension, while the closed cell neoprene gasket protects internal components from water intrusion. The unique Pro-Guard feature prevents rope jumps and snags, ensuring smooth operation.

The automatic freefall mechanism allows for easy anchor deployment without needing to access the windlass directly. This model is compatible with various chain and rope sizes, including 6 millimeter DIN 766 and 1/4 inch ISO G4 chain. The windlass comes complete with a base gasket seal, fast-mounting studs, an installation wrench, and a circuit breaker dual-direction solenoid with a rocker switch for user-friendly control.

Features

  • Redesigned Control Arm Features Higher Spring Tension And Modified Profile To Improve Performance
  • Closed Cell Neoprene Gasket Protects Internals
  • Unique Pro-Guard Feature Prevents Rope Jump And Snags
  • New Gypsy Designed Specifically For Up To 16mm Leaded Anchor Rodes
  • Automatic Freefall Mechanism

Specifications

  • Manufacturer: Lewmar
  • Manufacturer Part Number: 6656211967-310
  • Mount Type: Horizontal
  • Maximum Pull: 700 Pound
  • Working Load Limit: 175 Pound
  • Maximum Line Speed: 105 Feet Per Minute
  • Size: 9-5/8 Inch Width X 5-3/4 inch Height
  • Chain/ Rope Size: 6 Millimeter DIN 766/ 7 Millimeter DIN 766/ 1/4 Inch ISO G4/ 1/4 Inch BBB Chain
  • Material: Stainless Steel
  • Ampere Rating: 35 Amp
  • Voltage Rating: 12 Volt

Technical Documents

Product Videos

Shipping & Returns

  • This product ships within the continental USA only.
  • This product typically ships within 1 to 3 business days.
  • Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
