Enhance boat performance with durable electro-polished stainless steel trim tabs.

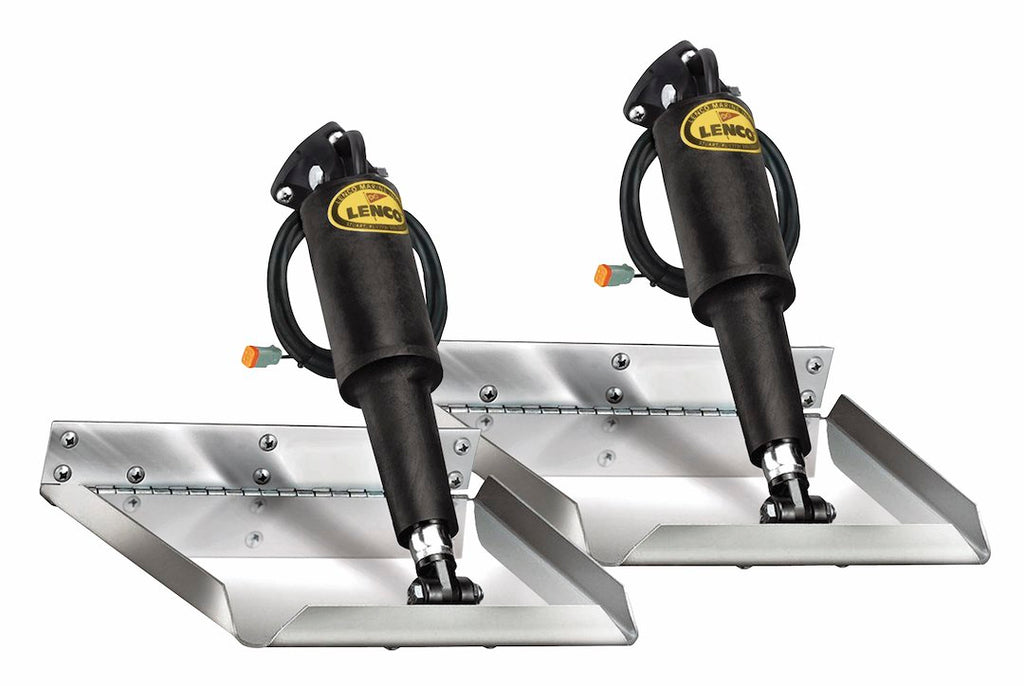

The Lenco Boat Trim Tab 100 Series is designed for boats ranging from 14 to 18 feet in length, featuring an 11 inch transom height. This trim tab system includes edge mount actuators and is equipped with 12 inch length by 9 inch width tabs, providing effective control over boat performance and stability. The blades are constructed from 12 gauge electro-polished 304 stainless steel, ensuring a mirror finish and superior corrosion resistance, which is essential for marine environments.
The installation of the trim tab system is straightforward, as it comes with all necessary components including two actuators with 6 feet leads, actuator extension wiring harnesses, and high impact corrosion proof mounting brackets. The design incorporates a 1 inch turned up edge and a 5 degree taper on both sides to enhance water flow and efficiency. The system operates on a 12 volt power supply, making it compatible with a wide range of boats.
With the addition of electro-polished blades, the Lenco Boat Trim Tab 100 Series not only improves the aesthetic appeal of your boat but also enhances its functionality. The mechanical cable gland seal in the mounting brackets ensures durability and protection against the elements. This trim tab system is an essential upgrade for those looking to improve their boating experience.
Features
- Stainless Steel Mounting Hardware
- Upper And Lower High Impact Corrosion Proof Mounting Brackets With Mechanical Cable Gland Seal
- Features Of The Edge Mount Series With The Addition Of Electro-Polished Blades
- Electro-Polish Adds A Mirror Finish And The Ultimate Corrosion Protection
Specifications
- Manufacturer: Lenco
- Manufacturer Part Number: 15115-101
- Compatibility: 14 To 18 Feet Length Boat

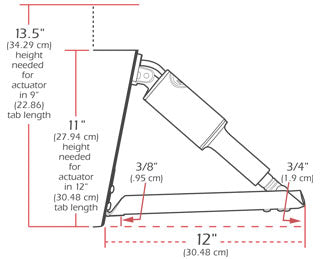

- Transom Height: 11 Inch
- Actuator Mounting Location: Edge Mount Actuator
- Tab Size: 12 Inch Length X 9 Inch Width
- Hinge Height: 2 Inch
- Voltage Rating: 12 Volt
- Material: Stainless Steel
- Includes: With Blades/ Actuators/ Actuator Extension Wiring Harnesses/ Mounting Brackets/ Mounting Hardware
