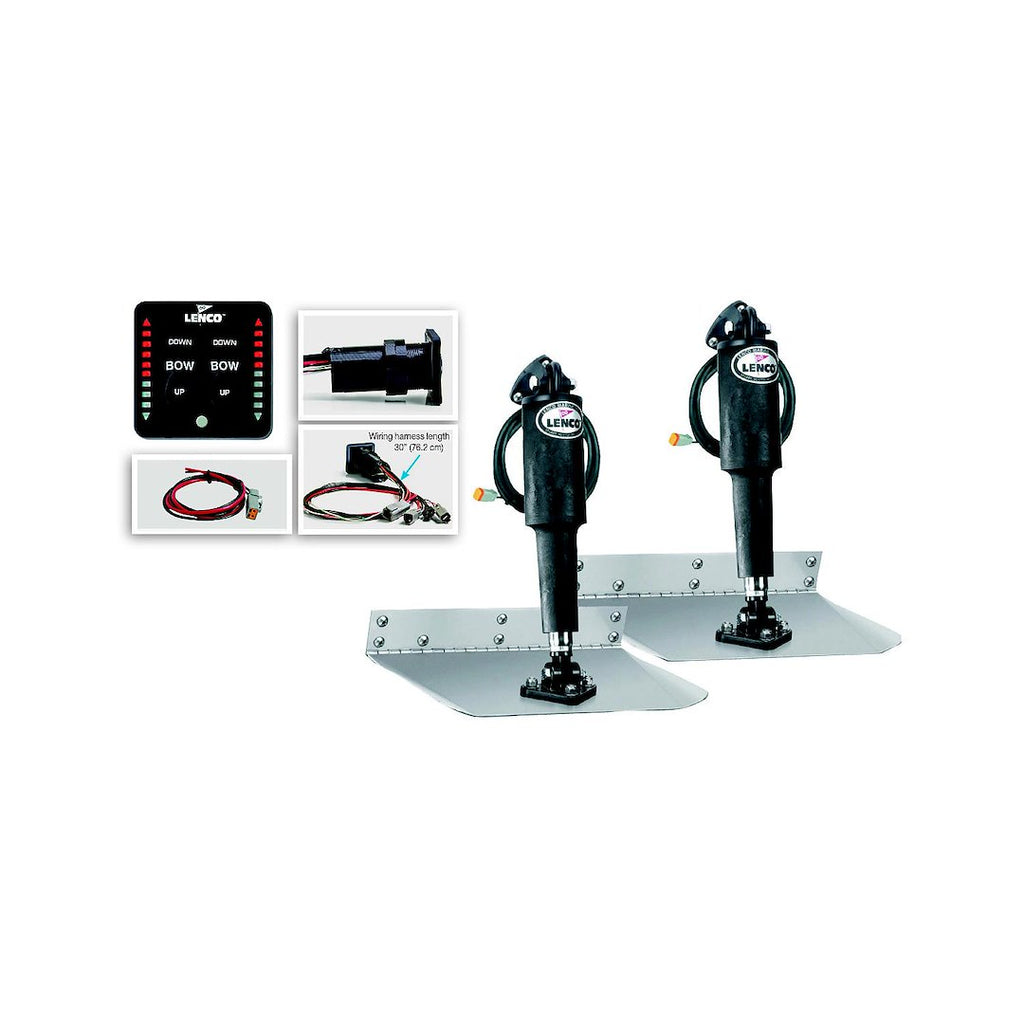

Lenco Boat Trim Tab 100 Series (MPN: 15108-103)

Enhance boat performance with durable stainless steel trim tabs.

The Lenco Boat Trim Tab 100 Series is designed for boats ranging from 14 to 69 feet in length, providing essential performance enhancements. This kit features 12-gauge stainless steel blades that are laser cut for precision, ensuring durability and resistance to corrosion. The blades are complemented by upper and lower high impact mounting brackets that include a mechanical cable gland seal, enhancing the longevity of the installation.

This trim tab kit includes an integrated switch choice and power connector, streamlining the installation process. The standard mount actuator is designed for a transom height of 14 inches, making it suitable for a variety of boat configurations. The tab size measures 9 inches in length and 12 inches in width, providing effective control over the boat's trim and stability.

With a voltage rating of 12 volts, this system is equipped with two actuators, each featuring 6-foot leads and Deutsch connectors, along with two 20-foot actuator extension wiring harnesses. The inclusion of these components ensures a comprehensive solution for enhancing boat handling and performance.

Features

• 12-Gauge Stainless Steel Standard Finish Blades
• Upper And Lower High Impact Corrosion Proof Mounting Brackets With Mechanical Cable Gland Seal
• Standard Trim Tab Kit With The Added Benefit Of Having The NEW Integrated Switch Choice And Power Connector
• Easy To Install

Specifications

• Manufacturer: Lenco
• Manufacturer Part Number: 15108-103
• Compatibility: 14 To 69 Feet Length Boat
• Transom Height: 14 Inch
• Actuator Mounting Location: Standard Mount Actuator
• Tab Size: 9 Inch Length X 12 Inch Width
• Voltage Rating: 12 Volt
• Material: Stainless Steel
• Includes: With Blades/ LED Integrated Switch/ Actuators/ Actuator Extension Wiring Harnesses
