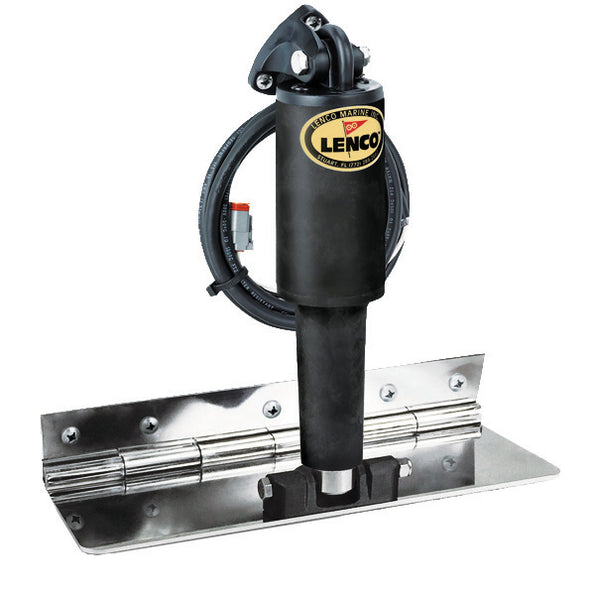

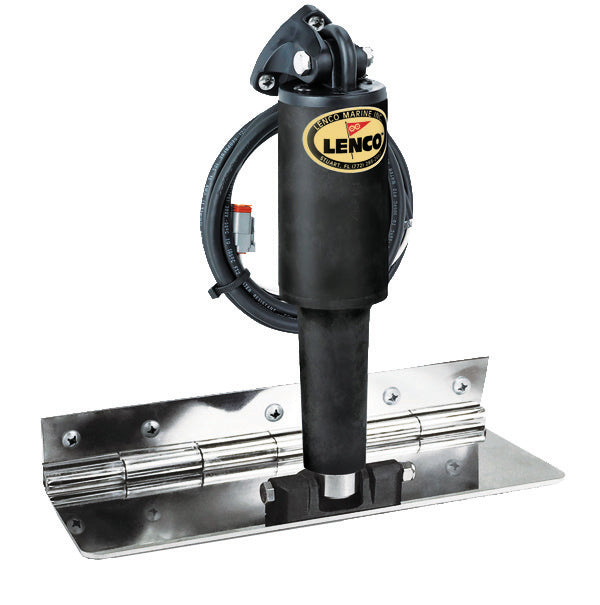

Lenco Boat Trim Tab 100 Series (MPN: 15088-101)

Compact and durable trim tab system for boats 14 to 25 feet long.

The Lenco Boat Trim Tab 100 Series is designed for boats ranging from 14 to 25 feet in length, featuring a transom height of 13 inches. This trim tab system utilizes 11-gauge electro polished 304 stainless steel blades, ensuring durability and resistance to corrosion. The compact design allows for installation behind ladders, providing all the benefits of a standard trim tab while saving space.

This system includes two 15057-001 XDS actuators with 6 feet leads and Deutsch connectors, along with two 30133-103 actuator extension wiring harnesses measuring 20 feet in length. The upper and lower mounting brackets are constructed from high-impact materials and feature a mechanical cable gland seal, enhancing the system's longevity and reliability. The 4 inch by 12 inch tab size and 2 inch hinge height are optimized for effective performance on various boat types.

Installation is straightforward with the included manual and stainless steel mounting hardware, making it accessible for both professionals and DIY enthusiasts. The Lenco Boat Trim Tab 100 Series is a robust solution for improving boat handling and performance on the water.

Features

• 11-Gauge Stainless Steel Blades
• Upper And Lower High Impact Corrosion Proof Mounting Brackets With Mechanical Cable Gland Seal
• Engineered To Fit Behind Ladders
• Unique Design Gives You All The Benefits Of A Standard Tab In An Ultra Compact Design

Specifications

• Manufacturer: Lenco
• Manufacturer Part Number: 15088-101
• Compatibility: 14 To 25 Feet Length Boat
• Transom Height: 13 Inch
• Tab Size: 4 Inch Length X 12 Inch Width
• Hinge Height: 2 Inch
• Voltage Rating: 12 Volt
• Material: Stainless Steel
• Includes: With Blades/ Actuators/ Actuator Extension Wiring Harnesses/ Mounting Brackets/ Mounting Hardware

Technical Documents

• Trim_Tab_Manual_TCHDAT.pdf
• size_diagram_limited_space_TCHDAT.pdf
• Trim_Tab_Manual_TCHDAT.pdf
