Engineered for precise vehicle control and handling performance.

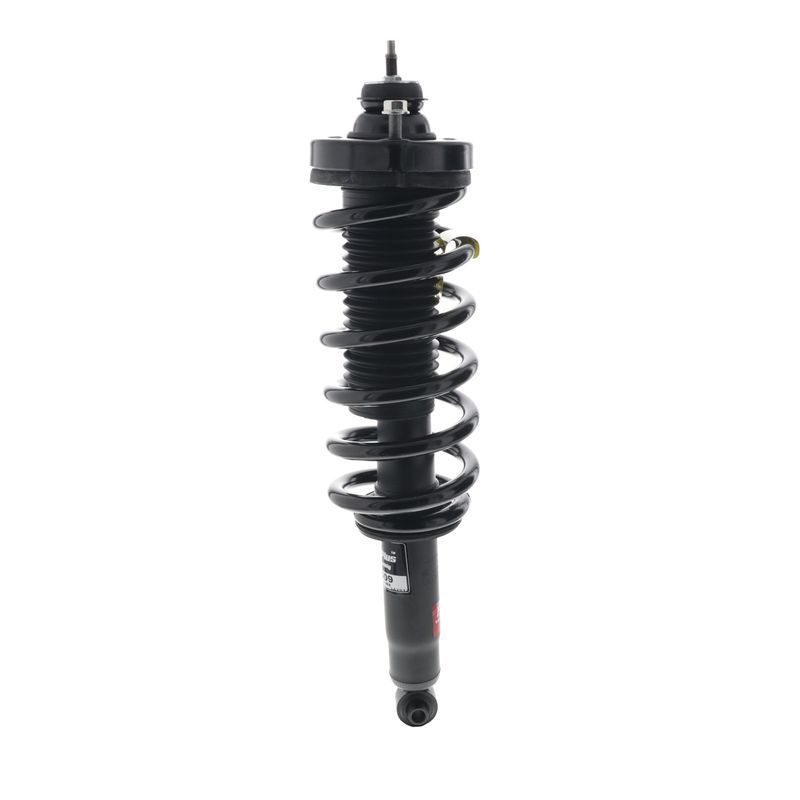

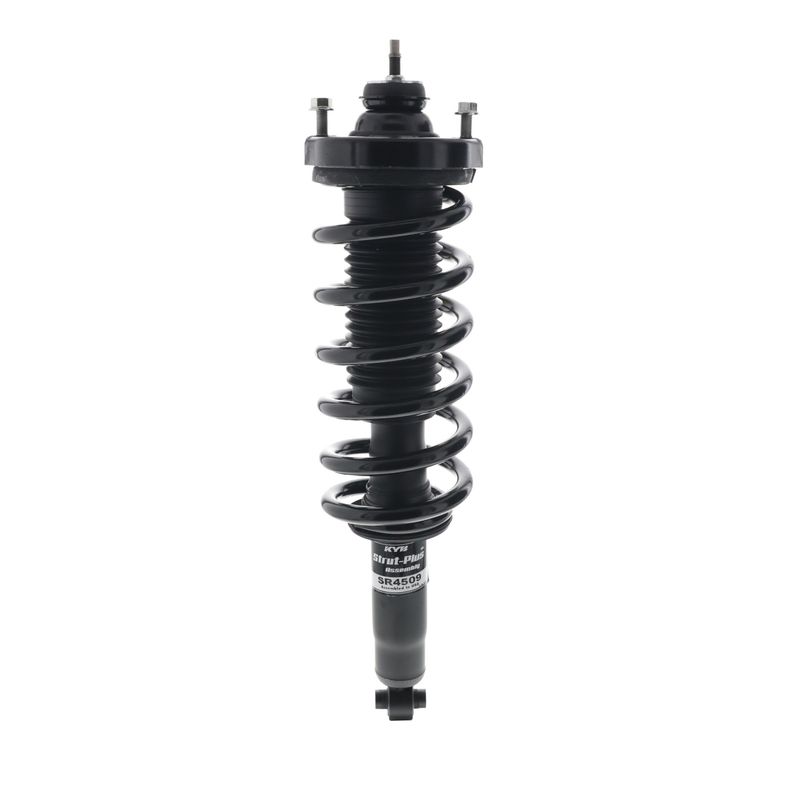

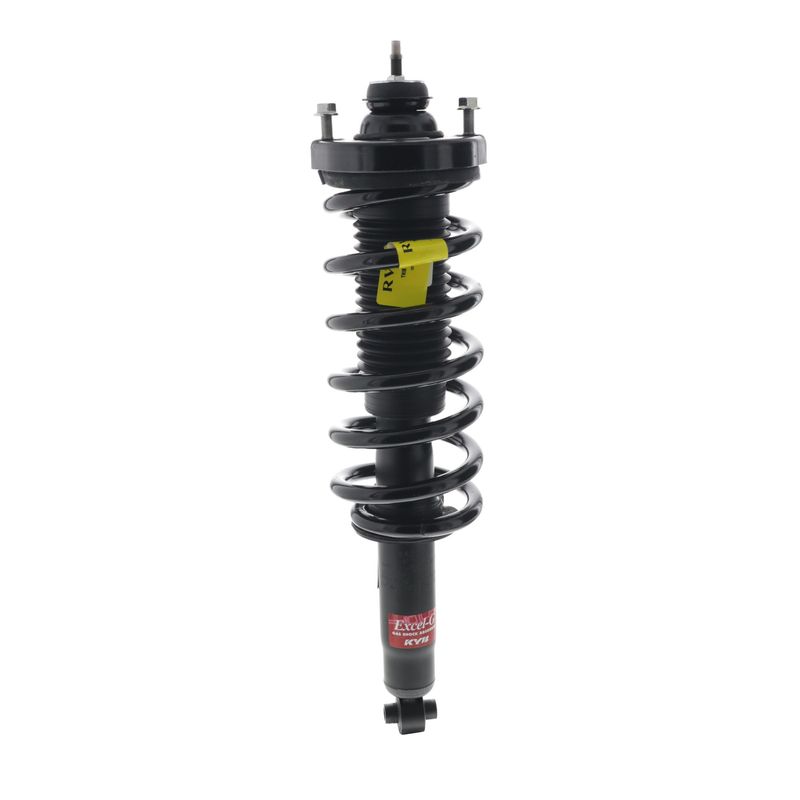

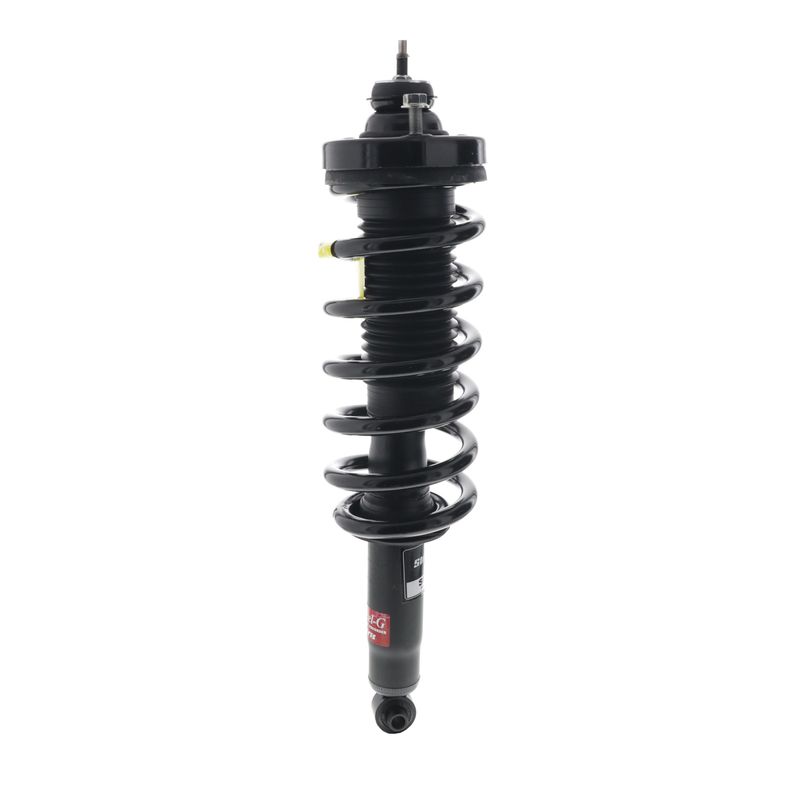

The KYB Strut-Plus Strut Assembly is designed to provide vehicle-specific replacement solutions that restore original equipment control and handling. This assembly features a nitrogen gas charge and non-adjustable valving, ensuring consistent performance tailored to your vehicle's specifications. The lightweight hard anodized aluminum alloy reservoirs dissipate heat efficiently and resist rust, enhancing durability and longevity.
Constructed with a heat-treated aluminum alloy piston, the Strut-Plus incorporates advanced port configurations that contribute to superior damping performance and ride quality. High-quality fittings and high-pressure hoses are utilized to resist abrasion and kinking, ensuring reliable operation under various conditions. The internally threaded top cap design maximizes piston travel, while the hard chromed and micro-polished finish extends seal life for improved reliability.
This strut assembly is engineered with a focus on strength and functionality, featuring a steel Teflon lined spherical bearing for smooth articulation and longevity. The unique truncated thread design on coil over shocks allows for easy spring preload and height adjustments, while the pinch bolt coil adjuster nut provides superior clamping force to maintain adjustments without damaging threads. The KYB Strut-Plus is a robust solution for restoring your vehicle's handling and performance.
Features
- Lightweight Hard Anodized 6063 Aluminum Alloy Reservoirs Dissipate Heat Quickly And Will Not Rust Due To Gas Charging Contamination
- The Heat Treated 6061 Aluminum Alloy Piston Has Our Highly Developed Port Configurations That Contribute To The Unique Damping Performance And Famous King Ride Quality
- High Quality Fittings Are Mated To Aeroquip High Pressure Hoses Which Resist Abrasion And Kinking
- Wear Bands Are Made From A Rulon Composite That Offers Incredible Wear Resistance, Low Deformation Under Load And High Compressive Strength
- Internally Threaded Top Cap Design Threads Over The Shock Body To Enable Maximum Piston Travel Inside The Shock Body
- They Are Hard Chromed And Micro-Polished To A 6 RA Finish For Extended Seal Life
- High Strength Rod End Designed For Proper Clearance On Your Application: Steel Teflon Lined Spherical Bearings For Smooth Articulation And Long Life With No Metal To Metal Contact
- Coil Over Shocks Are Machined With Our Own Truncated Thread Design For Ultimate Strength And Trouble Free Spring Preload And Height Adjustments
- Pinch Bolt Coil Adjuster Nut Offers Superior Clamping Force To Retain Your Coil Preload Adjustments Without Crushing The Threads Like Set Screw Style Collars Do
Specifications
- Manufacturer: KYB Shocks
- Manufacturer Part Number: SR4509
- Type: Nitrogen Gas Charged
- With Coil Spring: Yes
- Upper Mounting Style: Stud
- Lower Mounting Style: Cross Pin
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Twin Tube
- Body Color: Black
- Valving Type: Non Adjustable Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: Yes
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2011-2020 Dodge Journey
