Enhanced handling and control for light trucks and SUVs

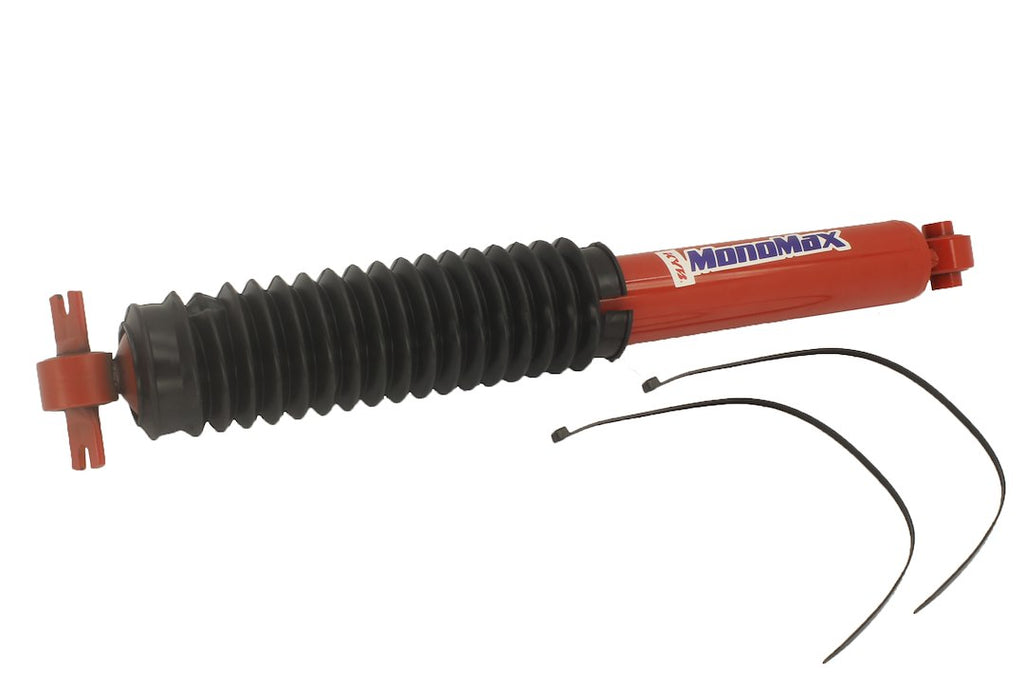

The KYB Shock Absorber MonoMax is designed to provide superior handling and control compared to traditional twin tube shock absorbers. This nitrogen gas charged shock features a monotube design that enhances durability and performance, making it suitable for various applications including hauling, towing, and plowing. With an extended height of 20.47 inches and a compressed height of 13.15 inches, it is engineered to accommodate both lifted and lowered vehicles.
The shock absorber incorporates advanced features such as a larger bore cylinder and heavy gauge wall construction, ensuring longevity and reliability under demanding conditions. The high nitrogen gas pressure and velocity sensitive piston contribute to improved responsiveness and stability, while the dual damping control allows for better adaptation to varying road conditions. This product is a single unit and includes shock boots for added protection.
Constructed from heavy duty zinc coated steel, the KYB MonoMax is built to withstand the rigors of off-road and on-road driving. Its application specific valving ensures optimal performance tailored to the specific needs of light trucks, vans, and SUVs. This shock absorber is a practical choice for those seeking enhanced performance and control in their vehicles.
Features
- Larger Bore Cylinder. Heavy Gauge Wall
- 100 Percent Fluid Valuing
- Additional (Floating) Piston
- High (Nitrogen) Gas Pressure
- Heavy Duty Zinc Coated Steel (MonoMax) Or Phenolic (Gas-A-Just) Piston Ring
- Velocity Sensitive Piston Or Gas Response
- Dual Damping Control
Specifications
- Manufacturer: KYB Shocks
- Manufacturer Part Number: 565064
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 20.47 Inch
- Compressed Length (IN): 13.15 Inch
- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Red
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: Yes
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1995-2003 Chevrolet Blazer
- 1982-2003 Chevrolet S10
- 1983-1994 Chevrolet S10 Blazer
- 1992-2001 GMC Jimmy
- 1982-1990 GMC S15
- 1983-1991 GMC S15 Jimmy
- 1991-2003 GMC Sonoma
- 1996-2000 Isuzu Hombre
