Enhanced handling and control for light trucks and SUVs.

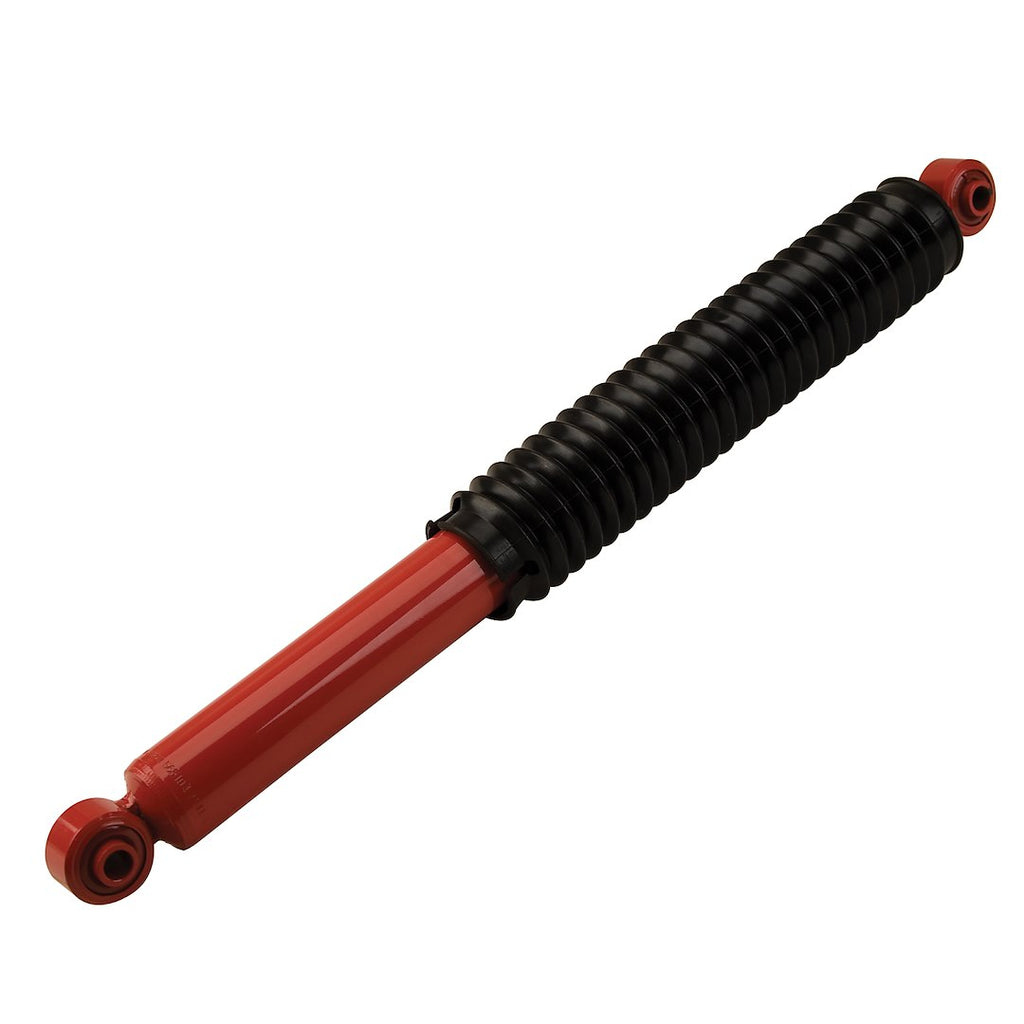

The KYB Shock Absorber MonoMax is designed to provide superior handling and control compared to traditional twin tube shock absorbers. This nitrogen gas charged shock features a monotube design that enhances durability and performance, making it suitable for various applications including hauling, towing, and plowing. It is particularly effective for diesel trucks and can accommodate lifted or lowered vehicles, ensuring optimal performance across a range of driving conditions.
With a larger bore cylinder and heavy gauge wall construction, the MonoMax shock absorber is built to withstand demanding environments. The shock incorporates 100 percent fluid valving and a floating piston, which work together to deliver consistent performance under varying loads. The high nitrogen gas pressure and velocity sensitive piston contribute to improved responsiveness, while the dual damping control allows for better handling and stability.
This shock absorber is vehicle specific and features an eyelet mounting style for both the upper and lower ends. It is designed for easy installation and comes with a dust boot to protect against debris. The robust steel construction ensures longevity, making the KYB Shock Absorber MonoMax a reliable choice for enhancing the ride quality of light trucks, vans, and SUVs.
Features
- Larger Bore Cylinder. Heavy Gauge Wall
- 100 Percent Fluid Valuing
- Additional (Floating) Piston
- High (Nitrogen) Gas Pressure
- Heavy Duty Zinc Coated Steel (MonoMax) Or Phenolic (Gas-A-Just) Piston Ring
- Velocity Sensitive Piston Or Gas Response
- Dual Damping Control
Specifications
- Manufacturer: KYB Shocks
- Manufacturer Part Number: 565039
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 20.39 Inch
- Compressed Length (IN): 13.31 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Red
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: Yes
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1987-1991 Chevrolet Blazer
- 1978-1995 Chevrolet G10
- 1978-1995 Chevrolet G20
- 1978-1995 Chevrolet G30
- 1980-1986 Chevrolet K10
- 1980-1986 Chevrolet K10 Suburban
- 1988-1991 Chevrolet K1500
- 1980-1986 Chevrolet K20
- 1980-1986 Chevrolet K20 Suburban
- 1988-1991 Chevrolet K2500
- 1980-1986 Chevrolet K5 Blazer
- 1987-1987 Chevrolet V10
- 1987-1988 Chevrolet V10 Suburban
- 1989-1991 Chevrolet V1500 Suburban
- 1987-1987 Chevrolet V20
- 1987-1988 Chevrolet V20 Suburban
- 1989-1991 Chevrolet V2500 Suburban
- 1978-1978 GMC G15
- 1979-1995 GMC G1500
- 1978-1978 GMC G25
- 1979-1995 GMC G2500
- 1978-1978 GMC G35
- 1979-1995 GMC G3500
- 1980-1991 GMC Jimmy
- 1980-1986 GMC K1500
- 1980-1986 GMC K1500 Suburban
- 1980-1986 GMC K2500
- 1980-1986 GMC K2500 Suburban
- 1987-1987 GMC V1500
- 1987-1991 GMC V1500 Suburban
- 1987-1987 GMC V2500
- 1987-1991 GMC V2500 Suburban
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
