KYB Shock Absorber MonoMax (MPN: 565037)

Enhanced handling and control for light trucks and SUVs

The KYB Shock Absorber MonoMax is designed to provide superior handling and control compared to traditional twin tube shock absorbers. This nitrogen gas charged shock features a monotube design that enhances durability and performance, making it suitable for various applications including hauling, towing, and plowing. It is particularly effective for diesel trucks and can accommodate lifted or lowered vehicles, ensuring a stable ride under diverse conditions.

With a larger bore cylinder and heavy gauge wall construction, the MonoMax shock absorber is built to withstand demanding environments. The high nitrogen gas pressure and velocity sensitive piston contribute to improved responsiveness and control, while the dual damping control system allows for better adaptation to changing road conditions. This shock absorber is equipped with a heavy duty zinc coated steel piston ring, ensuring longevity and reliability.

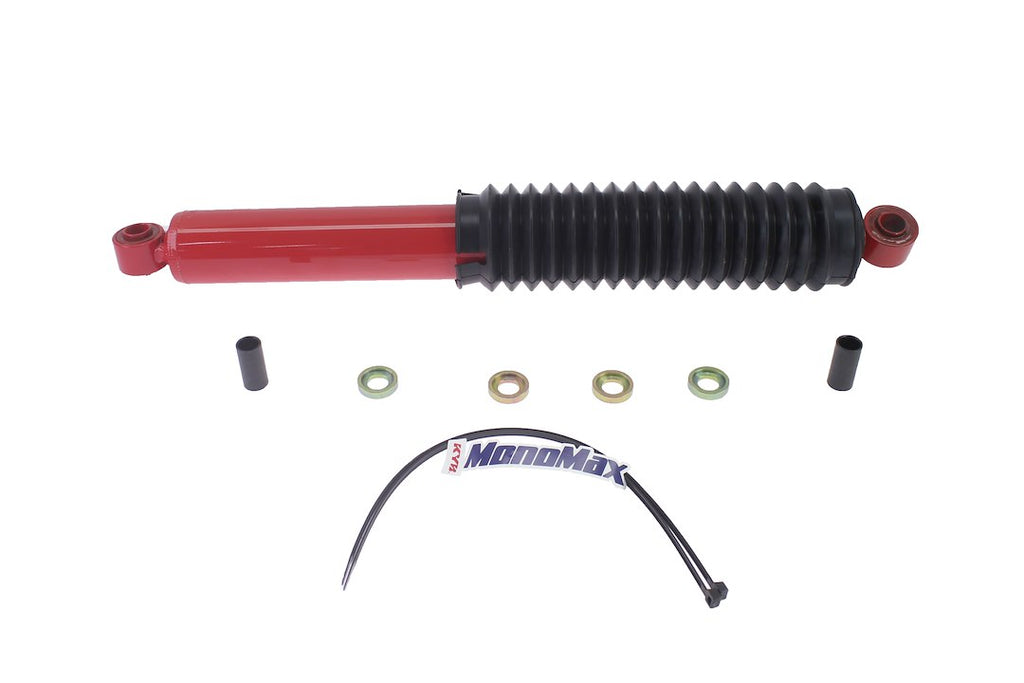

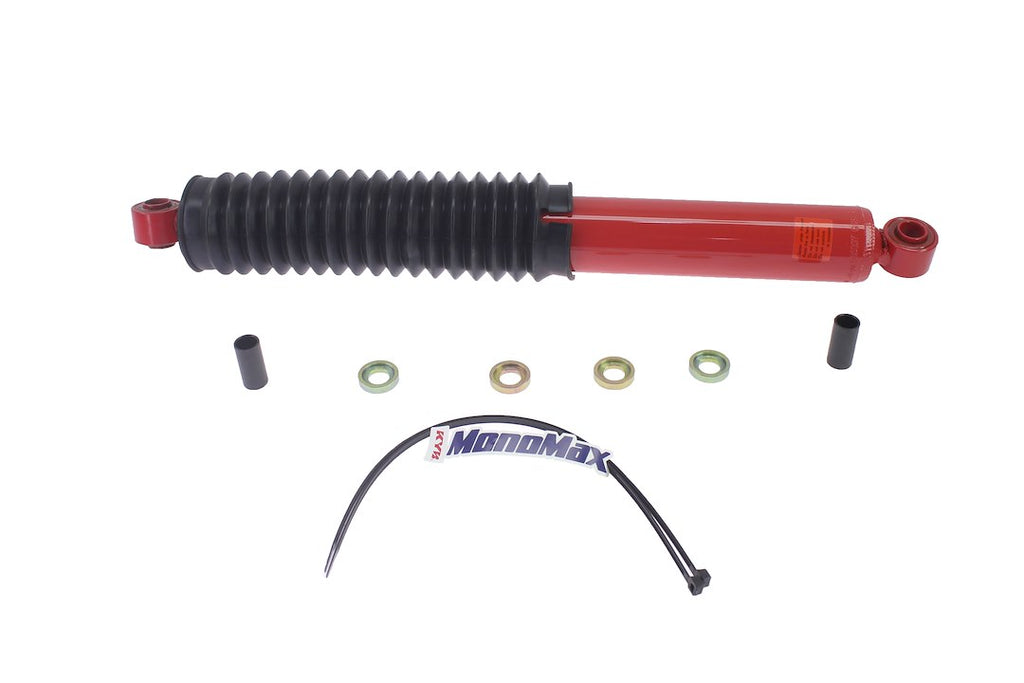

Installation is straightforward, as the shock comes with necessary hardware and a protective boot. The eyelet mounting style at both the upper and lower ends facilitates compatibility with a range of vehicles. The KYB Shock Absorber MonoMax is a robust solution for those seeking enhanced performance and stability in their light trucks, vans, and SUVs.

Features

• Larger Bore Cylinder. Heavy Gauge Wall
• 100 Percent Fluid Valuing
• Additional (Floating) Piston
• High (Nitrogen) Gas Pressure
• Heavy Duty Zinc Coated Steel (MonoMax) Or Phenolic (Gas-A-Just) Piston Ring
• Velocity Sensitive Piston Or Gas Response
• Dual Damping Control

Specifications

• Manufacturer: KYB Shocks
• Manufacturer Part Number: 565037
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 19-1/4 Inch
• Compressed Length (IN): 12.76 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Red
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: Yes
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1969-1974 AM General DJ5
• 1985-2005 Chevrolet Astro
• 1969-1972 Chevrolet Blazer
• 1963-1967 Chevrolet C10 Panel
• 1963-1972 Chevrolet C10 Pickup
• 1963-1972 Chevrolet C20 Pickup
• 1967-1972 Chevrolet C30 Pickup
• 1967-1970 Chevrolet G10 Van
• 1967-1970 Chevrolet G20 Van
• 1963-1966 Chevrolet P10 Series
• 1968-1972 Chevrolet P20 Van
• 1968-1972 Chevrolet P30 Van
• 1963-1966 Chevrolet Suburban
• 1966-1977 Ford Bronco
• 1969-1974 Ford E-100 Econoline
• 1969-1974 Ford E-200 Econoline
• 1969-1974 Ford E-300 Econoline
• 1965-1969 Ford F-100
• 1965-1969 Ford F-250
• 1973-1979 Ford F-250
• 1967-1979 Ford F-350
• 1966-1966 GMC 1000
• 1963-1965 GMC 1000 Series
• 1966-1966 GMC 1500
• 1963-1965 GMC 1500 Series
• 1967-1972 GMC C15/C1500 Pickup
• 1967-1972 GMC C25/C2500 Pickup
• 1967-1972 GMC C35/C3500 Pickup
• 1967-1970 GMC G15/G1500 Van
• 1967-1970 GMC G25/G2500 Van
• 1966-1966 GMC I1000
• 1966-1966 GMC I1500
• 1970-1972 GMC Jimmy
• 1966-1966 GMC P1000
• 1968-1972 GMC P25/P2500 Van
• 1968-1972 GMC P35/P3500 Van
• 1963-1966 GMC PB1000 Series
• 1966-1966 GMC PB15 Series
• 1963-1965 GMC PB1500 Series
• 1985-2005 GMC Safari
• 1963-1966 GMC Suburban
• 1976-1983 Jeep Cherokee
• 1959-1983 Jeep CJ5
• 1966-1968 Jeep CJ5A
• 1959-1975 Jeep CJ6
• 1966-1968 Jeep CJ6A
• 1976-1986 Jeep CJ7
• 1965-1969 Jeep Dispatcher
• 1965-1974 Jeep DJ5
• 1965-1968 Jeep DJ6
• 1984-1991 Jeep Grand Wagoneer
• 1974-1988 Jeep J10
• 1974-1988 Jeep J20
• 1981-1985 Jeep Scrambler
• 1961-1967 Jeep Universal
• 1961-1969 Jeep Universal Truck
• 1976-1983 Jeep Wagoneer
• 1955-1958 Jeep Willys
