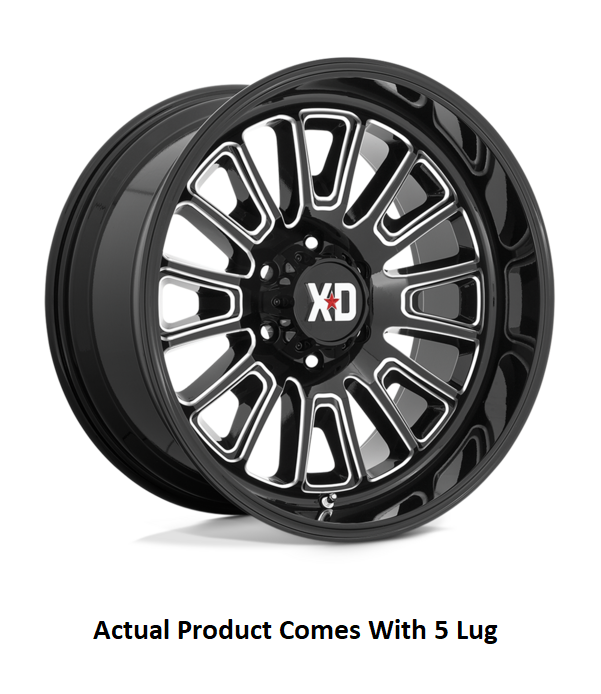

KMC Wheels XD864 Rover (MPN: XD86429050300)

Durable 20 Inch Wheel with Gloss Black Finish and Milled Accents

The KMC Wheels XD864 Rover is a robust 20 inch wheel designed for trucks and SUVs, featuring a sleek gloss black finish with milled accents. Constructed from a single piece of cast aluminum, this wheel offers a load capacity of 2500 pounds, ensuring durability and strength for various driving conditions. The 8 split spoke design not only enhances the aesthetic appeal but also contributes to the overall performance of the vehicle.

With a bolt pattern of 5 x 127 millimeters and a backspacing of 5.00 inches, the XD864 Rover is engineered for compatibility with a wide range of vehicles. The wheel includes a 60 degree conical seat lug nut design and a center bore of 71.50 millimeters, making installation straightforward. Additionally, it is compatible with Tire Pressure Monitoring Systems (TPMS), providing added convenience for monitoring tire health.

The XD864 Rover is designed to accommodate a maximum tire diameter of 40 inches, making it suitable for various tire sizes. The inclusion of the XD Series logo center cap adds a touch of branding, while the lifetime structural warranty underscores the manufacturer's commitment to quality. This wheel is an excellent choice for those seeking a blend of style and functionality in their vehicle's wheel design.

Features

• Gloss Black With Milled Accents
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD86429050300
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Painted Gloss With Milled Accents
• Color: Black With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1978 Buick Electra
• 1965-1970 Buick Wildcat
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1970-1972 Chevrolet Brookwood
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
