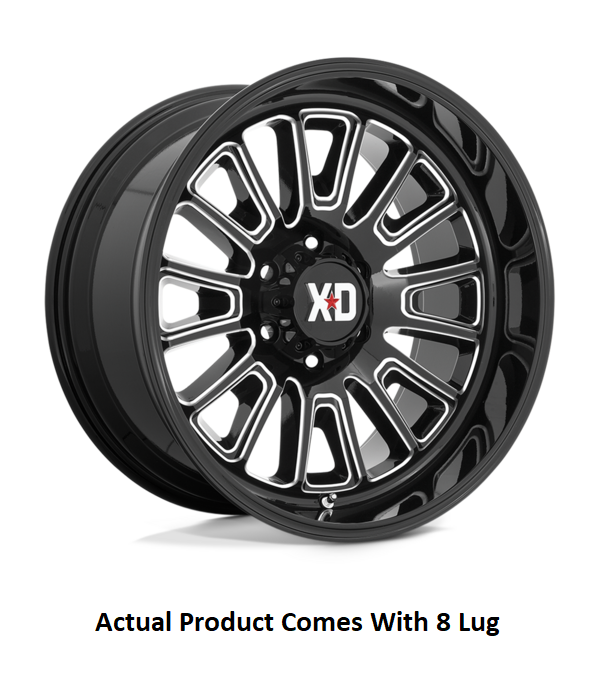

KMC Wheels XD864 Rover (MPN: XD86421087318N)

Durable 20 Inch Wheel with Gloss Black Finish and Milled Accents

The KMC Wheels XD864 Rover is a robust 20 inch wheel designed for trucks and SUVs, featuring a 10 inch width and an 8 x 170 millimeter bolt pattern. Constructed from a single piece of cast aluminum, this wheel offers a load capacity of 3700 pounds, ensuring reliability under heavy loads. The gloss black finish with milled accents not only enhances its aesthetic appeal but also provides durability against the elements.

This wheel is engineered with a -18 millimeter offset and 4.79 inch backspacing, making it suitable for a variety of vehicle applications. It includes a 60 degree conical seat lug nut design and a center bore of 125.10 millimeters, ensuring a secure fit. Additionally, the XD864 Rover is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for easy monitoring of tire pressure.

With a maximum tire diameter of 42 inches, this wheel accommodates larger tires, enhancing off-road capabilities. The 8 split spoke design adds a modern touch, while the included XD Series logo center cap signifies quality and style. The KMC Wheels XD864 Rover is a reliable choice for those seeking performance and aesthetics in their wheel selection.

Features

• Gloss Black With Milled Accents
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD86421087318N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Painted Gloss With Milled Accents
• Color: Black With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 8x6.69
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 8x170
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 125.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Split Spoke
• With Inserts: No
• Load Capacity: 3700
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1999-2026 Ford F-250 Super Duty
