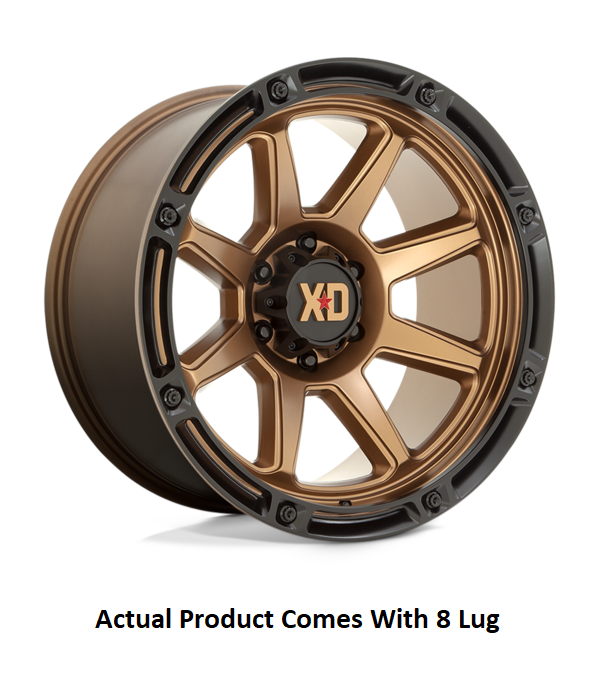

KMC Wheels XD863 Titan (MPN: XD86329087600)

High-performance 20-inch wheel designed for trucks and SUVs.

The KMC Wheels XD863 Titan is a robust 20-inch wheel designed specifically for trucks and SUVs, featuring a width of 9 inches and a load capacity of 3700 pounds. Constructed from a single piece of cast aluminum, this wheel offers durability and strength, making it suitable for various driving conditions. The matte bronze finish with a black lip provides a distinctive aesthetic, while the 8-spoke design enhances its visual appeal.

This wheel is engineered with a bolt pattern of 8 x 170 millimeters and a 0 millimeter offset, ensuring compatibility with a wide range of vehicles. The 5.00 inch backspacing and 125.10 millimeter center bore facilitate a secure fit. Additionally, the KMC XD863 Titan is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for easy monitoring of tire pressure.

With a maximum tire diameter of 40 inches, this wheel accommodates larger tires, enhancing off-road capabilities. The included XD Series logo center cap adds a touch of branding, while the 60-degree conical seat lug nut design ensures a secure attachment. The KMC XD863 Titan is a reliable choice for those seeking performance and style in their wheel selection.

Features

• Matte Bronze With Black Lip
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD86329087600
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Painted Matte
• Color: Bronze With Black Lip
• Material: Aluminum
• Bolt Pattern Inch: 8x6.69
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 8x170
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 125.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 3700
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2000-2005 Ford Excursion
• 1999-2026 Ford F-250 Super Duty
• 2000-2004 Ford F-350 Super Duty
