Durable and stylish wheel designed for trucks and SUVs.

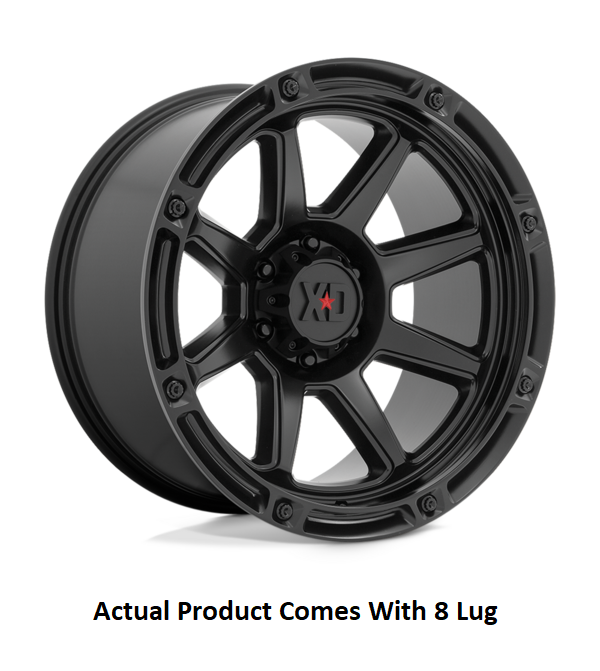

The KMC Wheels XD863 Titan is a robust 20 inch wheel designed specifically for trucks and SUVs. With a width of 9 inches and a load capacity of 3700 pounds, this wheel is engineered to handle demanding conditions while providing a sleek appearance. The satin black finish and 8 spoke design enhance the aesthetic appeal, making it a suitable choice for various vehicle styles.
Constructed from a single piece of cast aluminum, the XD863 Titan ensures durability and strength. It features a 0 millimeter offset and 5.00 inch backspacing, which contribute to its compatibility with a wide range of vehicles. Additionally, the wheel is designed to accommodate a maximum tire diameter of 40 inches, making it versatile for different tire setups.
The KMC XD863 Titan is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that drivers can maintain optimal tire pressure for safety and performance. The 60 degree conical seat lug nut design and 125.10 millimeter center bore further enhance its functionality. With the XD Series logo center cap included, this wheel combines performance with style.
Features
- Satin Black Finish
- 1 Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With XD Series Logo Center Cap
Specifications
- Manufacturer: KMC Wheels
- Manufacturer Part Number: XD86329087700
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 20
- Width: 9
- Offset: 0
- Backspacing: 5.00
- Finish: Satin
- Color: Black
- Material: Aluminum
- Bolt Pattern Inch: 8x6.69
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 8x170
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 125.10
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 8 Spoke
- With Inserts: No
- Load Capacity: 3700
- Size: 20x9
- Max Tire Diameter: 40
- Center Cap Design: XD Series Logo
- Finish Warranty: 1 Year
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2000-2005 Ford Excursion
- 1999-2026 Ford F-250 Super Duty
- 2000-2004 Ford F-350 Super Duty
