Durable satin black aluminum wheel designed for performance and style.

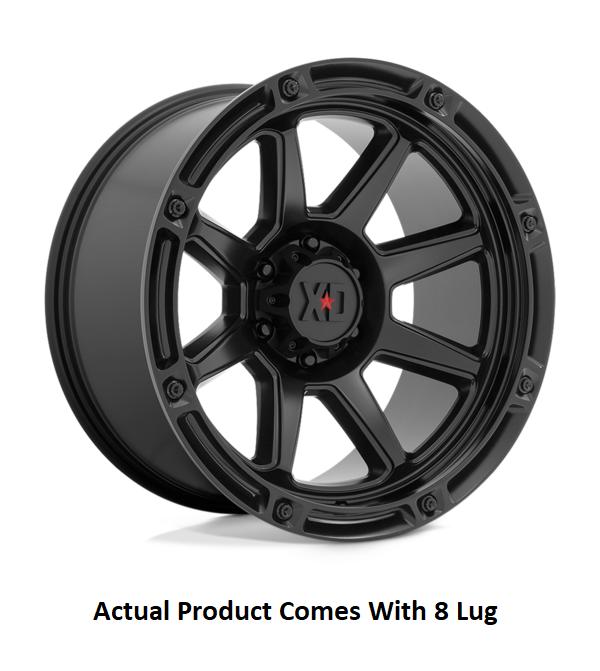

The KMC Wheels XD863 Titan is a robust 20 inch wheel designed for trucks and SUVs, featuring a satin black finish that enhances its aesthetic appeal. Constructed from a single piece of cast aluminum, this wheel offers a load capacity of 3700 pounds, ensuring durability and reliability under various driving conditions. The wheel's design includes an 8 spoke configuration and a 60 degree conical seat lug nut design, providing both strength and a secure fit.
With a bolt pattern of 8 x 165.1 millimeters and a backspacing of 5.00 inches, the XD863 Titan is compatible with a wide range of vehicles. It also accommodates a maximum tire diameter of 40 inches, making it suitable for larger tires. The center bore measures 125.10 millimeters, and the wheel comes with an XD Series logo center cap, adding a touch of branding to its design.
Additionally, the KMC XD863 Titan is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for easy monitoring of tire pressure. This feature enhances safety and performance, making it a practical choice for vehicle owners looking to maintain optimal tire conditions.
Features
- Satin Black Finish
- 1 Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With XD Series Logo Center Cap
Specifications
- Manufacturer: KMC Wheels
- Manufacturer Part Number: XD86329080700
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 20
- Width: 9
- Offset: 0
- Backspacing: 5.00
- Finish: Satin
- Color: Black
- Material: Aluminum
- Bolt Pattern Inch: 8x6.50
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 8x165.1
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 125.10
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 8 Spoke
- With Inserts: No
- Load Capacity: 3700
- Size: 20x9
- Max Tire Diameter: 40
- Center Cap Design: XD Series Logo
- Finish Warranty: 1 Year
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
