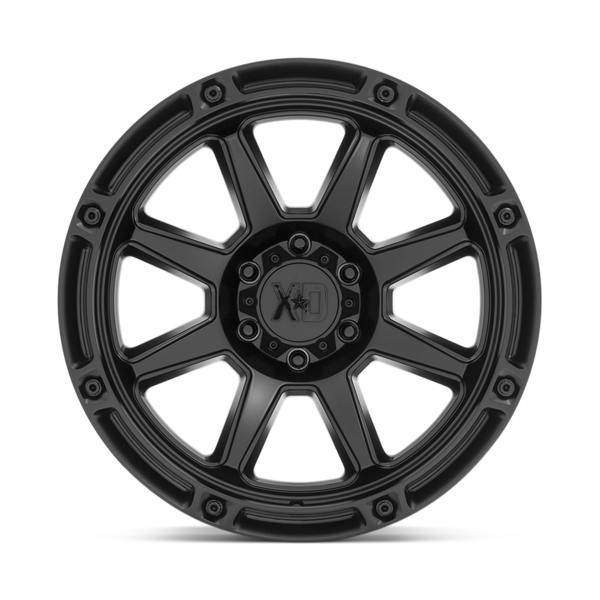

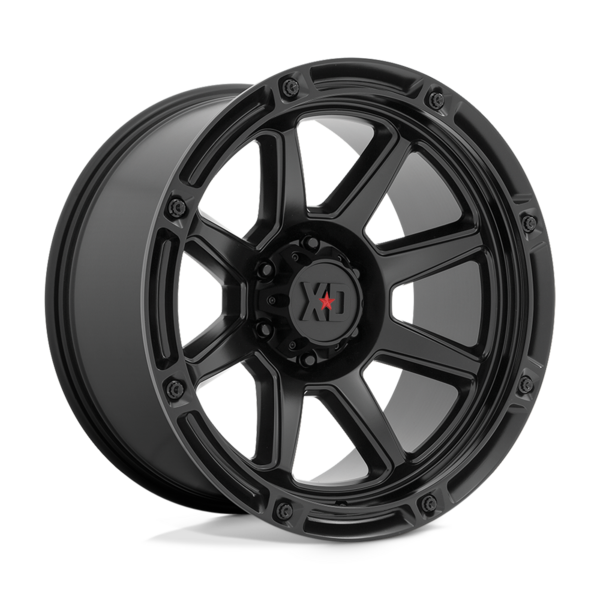

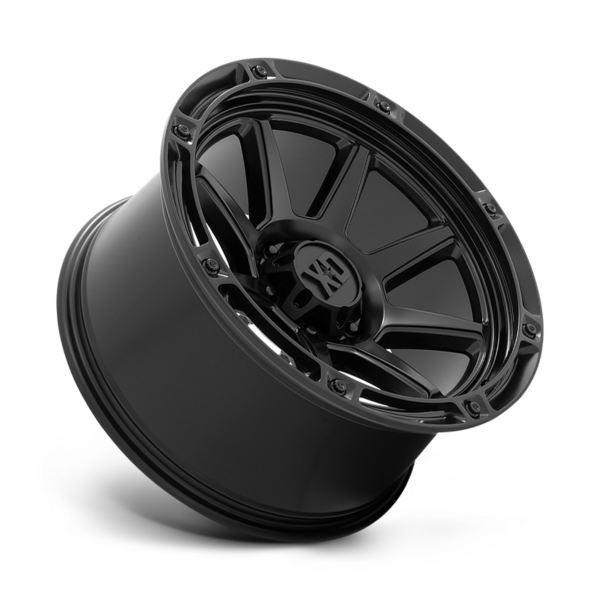

KMC Wheels XD863 Titan 20 Inch Wheel (MPN: XD86329063700)

Durable satin black aluminum wheel designed for performance and style.

The KMC Wheels XD863 Titan is a robust 20 inch wheel designed for trucks and SUVs, featuring a satin black finish that enhances its aesthetic appeal. Constructed from a single piece of cast aluminum, this wheel offers a load capacity of 2500 pounds, ensuring durability and reliability under various driving conditions. The 8 spoke design not only adds to its visual impact but also contributes to its structural integrity.

With a bolt pattern of 6 x 135 millimeters and a backspacing of 5.00 inches, the XD863 Titan is engineered for compatibility with a wide range of vehicles. It features a 60 degree conical seat lug nut design and an 87.10 millimeter center bore, making installation straightforward. Additionally, this wheel is compatible with Tire Pressure Monitoring Systems (TPMS), providing enhanced safety and performance monitoring.

The KMC XD863 Titan is designed to accommodate tires with a maximum diameter of 40 inches, making it suitable for various tire sizes. The included XD Series logo center cap adds a touch of branding while maintaining the wheel's sleek appearance. With a lifetime structural warranty and a one-year finish warranty, this wheel is built to last, making it a practical choice for those seeking both style and functionality.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD86329063700
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 6x5.31
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x135
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2022-2025 Ford Bronco
• 2016-2019 Ford Expedition
• 2021-2026 Ford Expedition
• 2004-2026 Ford F-150
• 2022-2025 Ford F-150 Lightning
