Durable and stylish wheel designed for trucks and SUVs.

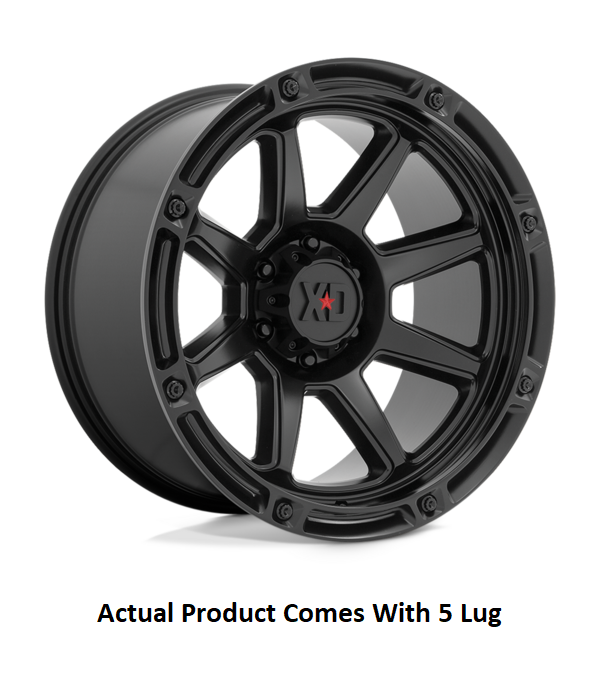

The KMC Wheels XD863 Titan is a robust 20 inch wheel designed for enhanced performance and aesthetic appeal on trucks and SUVs. Constructed from a single piece of cast aluminum, this wheel features a satin black finish that provides a sleek look while ensuring durability. With an 8 spoke design, it combines style with functionality, making it a suitable choice for various vehicle types.
This wheel has a load capacity of 2500 pounds, making it capable of handling heavy loads while maintaining structural integrity. It is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for easy monitoring of tire pressure for improved safety and performance. The wheel's specifications include a 5 x 150 millimeter bolt pattern, 18 millimeter offset, and 5.71 inch backspacing, ensuring a precise fit for compatible vehicles.
Additionally, the KMC XD863 Titan features a 110.10 millimeter center bore and comes with an XD Series logo center cap, adding to its distinctive appearance. With a maximum tire diameter of 40 inches, this wheel is designed to accommodate larger tires, enhancing the overall look and performance of your vehicle. The KMC XD863 Titan is a reliable choice for those seeking a combination of style, strength, and functionality.
Features
- Satin Black Finish
- 1 Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With XD Series Logo Center Cap
Specifications
- Manufacturer: KMC Wheels
- Manufacturer Part Number: XD86329058718
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 20
- Width: 9
- Offset: 18
- Backspacing: 5.71
- Finish: Satin
- Color: Black
- Material: Aluminum
- Bolt Pattern Inch: 5x5.90
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 5x150
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 110.10
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 8 Spoke
- With Inserts: No
- Load Capacity: 2500
- Size: 20x9
- Max Tire Diameter: 40
- Center Cap Design: XD Series Logo
- Finish Warranty: 1 Year
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
