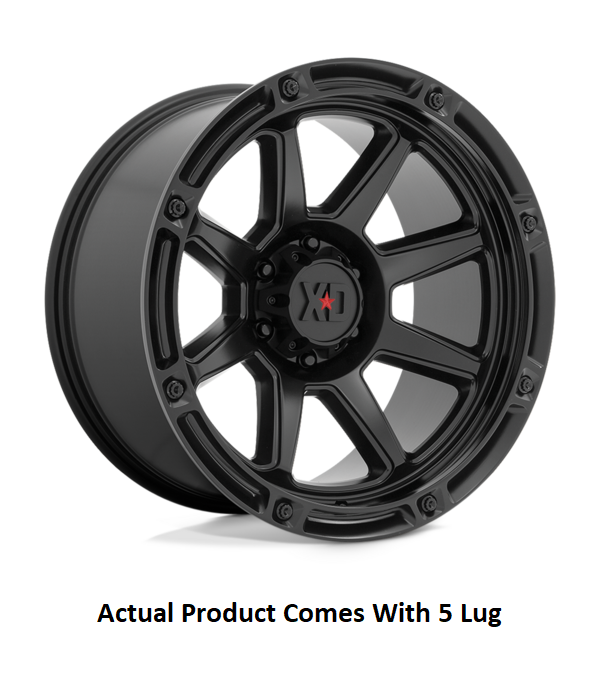

KMC Wheels XD863 Titan 20 Inch Wheel (MPN: XD86329050718)

Durable satin black aluminum wheel designed for performance and style.

The KMC Wheels XD863 Titan is a robust 20 inch wheel designed for trucks and SUVs, featuring a satin black finish that enhances its aesthetic appeal. Constructed from a single piece of cast aluminum, this wheel offers a load capacity of 2500 pounds, ensuring durability and reliability under various driving conditions. The 8 spoke design not only contributes to its striking appearance but also aids in performance by reducing weight without compromising strength.

With a bolt pattern of 5 x 127 millimeters and an 18 millimeter offset, the XD863 Titan is engineered for compatibility with a wide range of vehicles. It includes a 60 degree conical seat lug nut design and a center bore of 71.50 millimeters, making installation straightforward. Additionally, this wheel is compatible with Tire Pressure Monitoring Systems (TPMS), providing added convenience for monitoring tire health.

The KMC XD863 Titan is designed to accommodate a maximum tire diameter of 40 inches, making it suitable for various tire options. The included XD Series logo center cap adds a touch of branding while maintaining the wheel's sleek look. With a lifetime structural warranty and a one-year finish warranty, this wheel is built to last, making it a practical choice for those seeking both style and functionality.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD86329050718
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 18
• Backspacing: 5.71
• Finish: Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 2016-2016 Chrysler Town & Country
• 2020-2026 Chrysler Voyager
• 2024-2025 Dodge Charger Daytona
• 2018-2020 Dodge Grand Caravan
• 2018-2020 Dodge Journey
• 1987-1987 GMC R1500
• 2006-2010 Jeep Commander
• 2020-2025 Jeep Gladiator JT
• 1999-1999 Jeep Grand Cherokee
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
