Durable satin black aluminum wheel designed for performance and style.

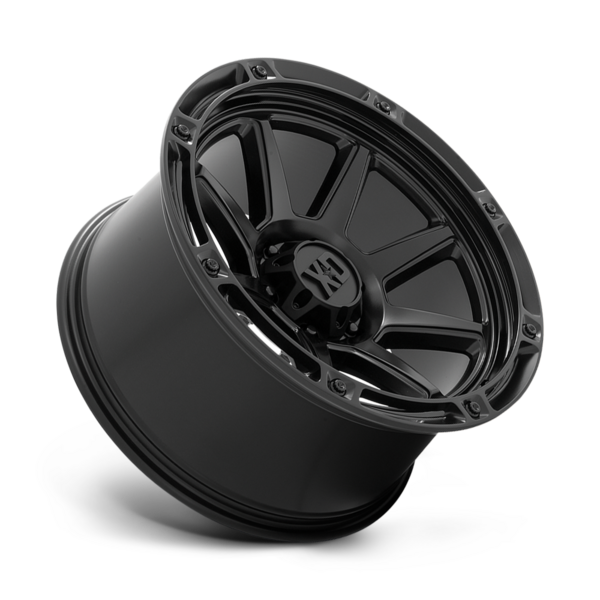

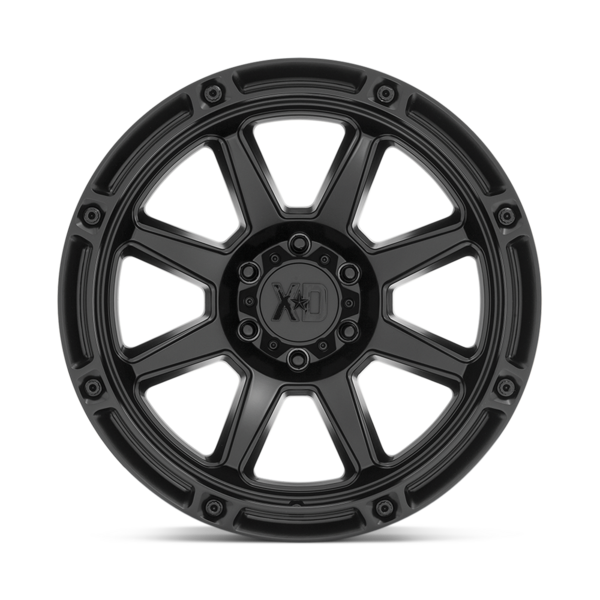

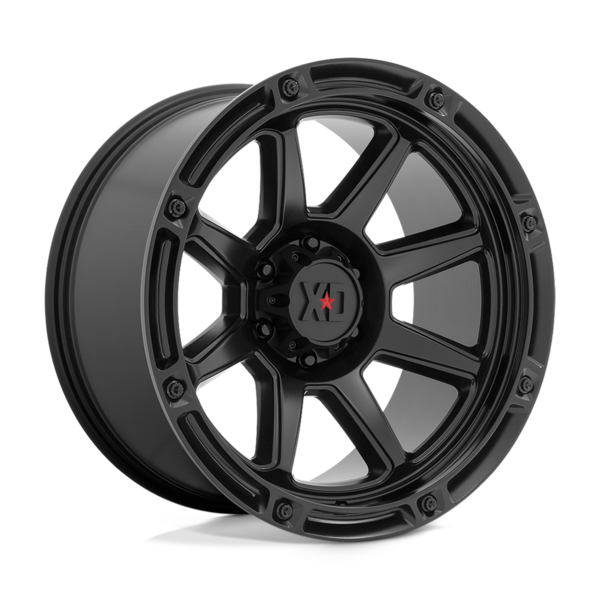

The KMC Wheels XD863 Titan is a robust 20 inch wheel designed for trucks and SUVs, featuring a 12 inch width and a -44 millimeter offset. Constructed from a single piece of cast aluminum, this wheel offers a satin black finish that enhances its aesthetic appeal while ensuring durability. With a load capacity of 2500 pounds, it is engineered to support heavy-duty applications without compromising performance.
This wheel is compatible with Tire Pressure Monitoring Systems (TPMS), providing added convenience for monitoring tire health. The 8 spoke design not only contributes to its striking appearance but also aids in weight reduction and improved handling. The XD Series logo center cap adds a touch of branding, making it a stylish choice for vehicle customization.
With a backspacing of 4.77 inches and a center bore of 106.10 millimeters, the XD863 Titan is designed for optimal fitment on a variety of vehicles. It accommodates a maximum tire diameter of 42 inches, making it suitable for off-road and performance tires. The 60 degree conical seat lug nut design ensures secure installation, enhancing safety and reliability on the road.
Features
- Satin Black Finish
- 1 Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With XD Series Logo Center Cap
Specifications
- Manufacturer: KMC Wheels
- Manufacturer Part Number: XD86321268744N
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 20
- Width: 12
- Offset: -44
- Backspacing: 4.77
- Finish: Satin
- Color: Black
- Material: Aluminum
- Bolt Pattern Inch: 6x5.50
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 6x139.7
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 106.10
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 8 Spoke
- With Inserts: No
- Load Capacity: 2500
- Size: 20x12
- Max Tire Diameter: 42
- Center Cap Design: XD Series Logo
- Finish Warranty: 1 Year
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
