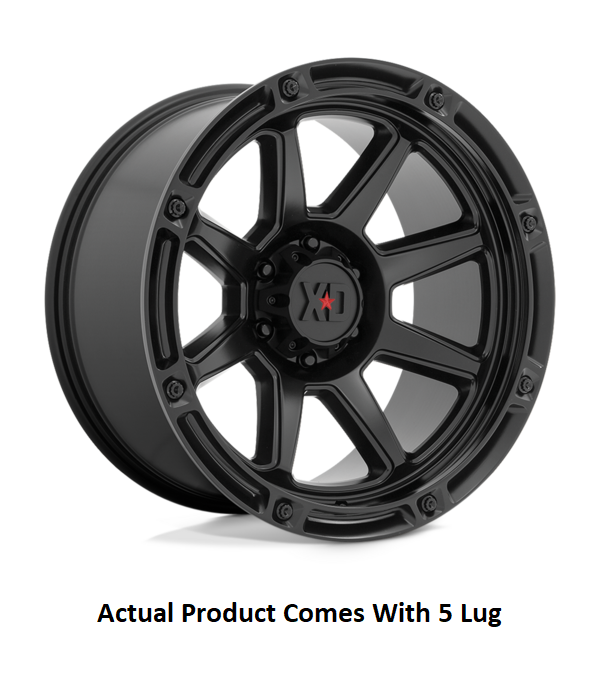

KMC Wheels XD863 Titan 20 Inch Wheel (MPN: XD86321250744N)

Durable satin black aluminum wheel designed for performance and style.

The KMC Wheels XD863 Titan is a robust 20 inch wheel designed for trucks and SUVs, featuring a 12 inch width and a striking satin black finish. Constructed from a single piece of cast aluminum, this wheel offers a load capacity of 2500 pounds, ensuring durability and reliability under various driving conditions. The wheel is designed with an 8 spoke pattern and a 60 degree conical seat lug, providing both aesthetic appeal and functional performance. Additionally, it is compatible with Tire Pressure Monitoring Systems (TPMS), enhancing safety and convenience for the driver.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD86321250744N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 12
• Offset: -44
• Backspacing: 4.77
• Finish: Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x12
• Max Tire Diameter: 42
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
