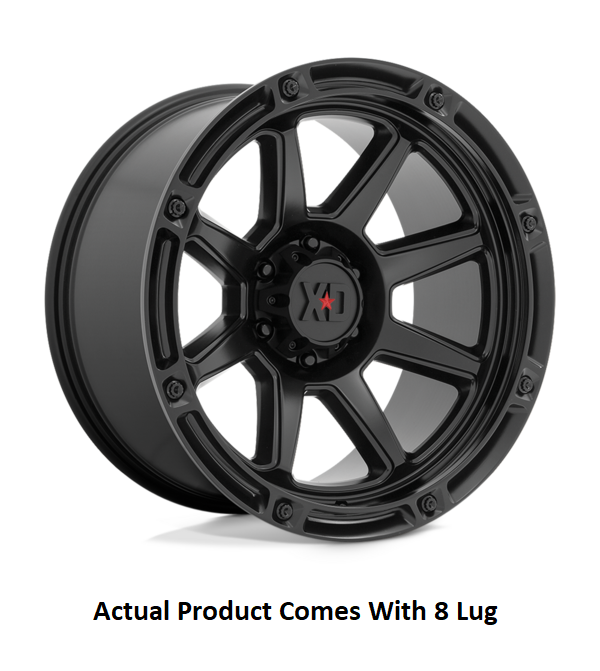

KMC Wheels XD863 Titan 20 Inch Wheel (MPN: XD86321087718N)

Durable and stylish wheel designed for trucks and SUVs.

The KMC Wheels XD863 Titan is a robust 20 inch wheel designed for enhanced performance and aesthetic appeal on trucks and SUVs. Constructed from a single piece of cast aluminum, this wheel features a satin black finish that provides a sleek look while ensuring durability. With an 8 x 170 millimeter bolt pattern and a load capacity of 3700 pounds, it is engineered to support heavy-duty applications while maintaining structural integrity.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for easy monitoring of tire pressure for improved safety and performance. The 60 degree conical seat lug nut design ensures a secure fit, while the 125.10 millimeter center bore accommodates a variety of vehicles. The XD Series logo center cap adds a distinctive touch, making this wheel not only functional but also visually appealing.

With a maximum tire diameter of 42 inches, the XD863 Titan is suitable for a range of tire sizes, making it a versatile choice for vehicle customization. The wheel's offset of -18 millimeters and backspacing of 4.79 inches contribute to its aggressive stance, enhancing the overall look of lifted vehicles. KMC Wheels stands behind their products with a lifetime structural warranty, ensuring long-lasting performance.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD86321087718N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 8x6.69
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 8x170
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 125.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 3700
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1999-2026 Ford F-250 Super Duty
