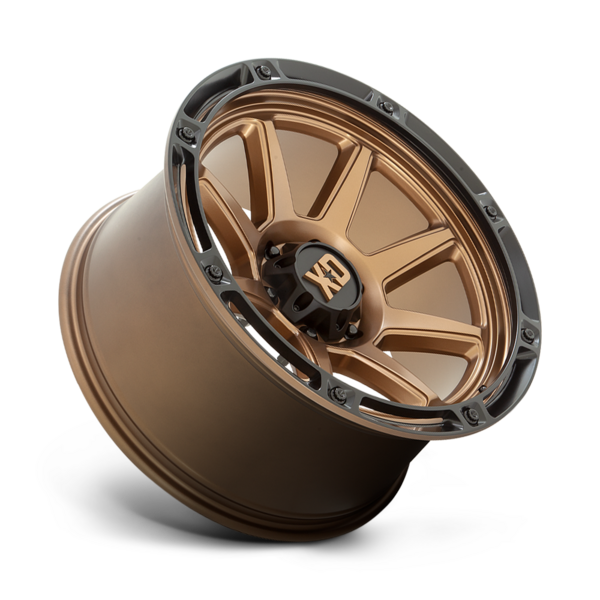

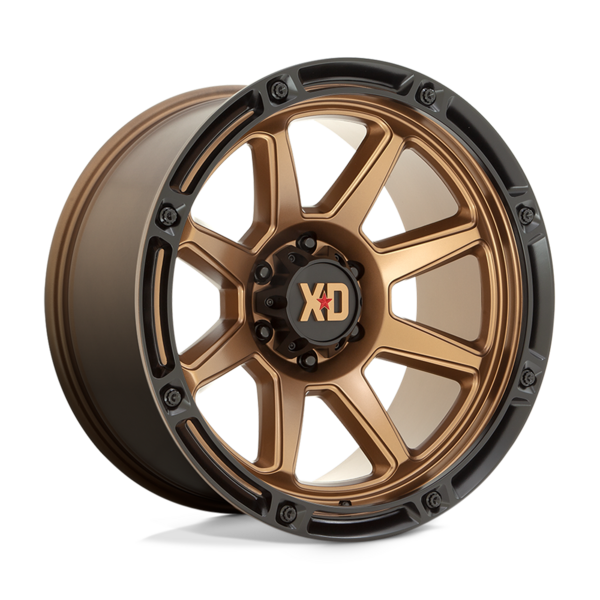

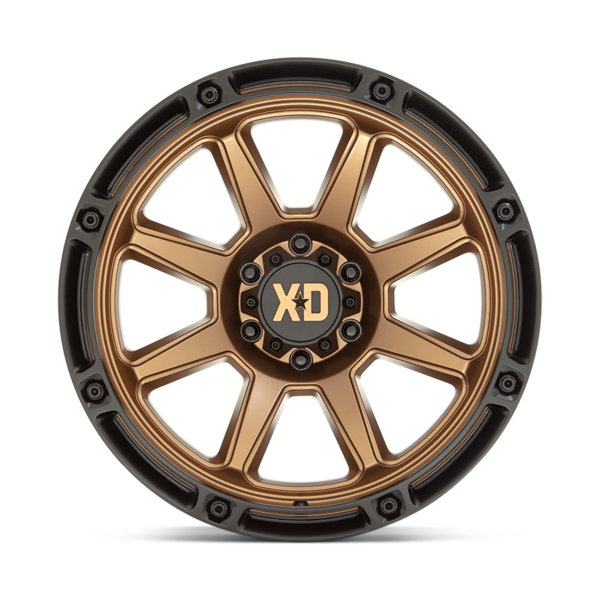

KMC Wheels XD863 Titan 20 Inch Wheel (MPN: XD86321063618N)

Durable cast aluminum wheel with a striking matte bronze finish.

The KMC Wheels XD863 Titan is a robust 20 inch wheel designed for trucks and SUVs, featuring a 10 inch width and a 6 x 135 millimeter bolt pattern. Constructed from a single piece of cast aluminum, this wheel offers a load capacity of 2500 pounds, ensuring reliability under heavy loads. The matte bronze finish with a black lip provides a distinctive aesthetic, while the 60 degree conical seat lug design enhances compatibility with various tire types.

This wheel is engineered to accommodate a maximum tire diameter of 42 inches, making it suitable for a range of off-road and on-road applications. The XD863 Titan is also compatible with Tire Pressure Monitoring Systems (TPMS), allowing for easy monitoring of tire pressure. With an 87.10 millimeter center bore and a backspacing of 4.79 inches, this wheel is designed for optimal fitment and performance.

The 8 spoke design not only adds to the visual appeal but also contributes to the overall strength and durability of the wheel. Each wheel comes with an XD Series logo center cap, further enhancing its stylish look. Backed by a lifetime structural warranty and a one year finish warranty, the KMC Wheels XD863 Titan is a reliable choice for those seeking quality and performance in their wheel selection.

Features

• Matte Bronze With Black Lip
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD86321063618N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Painted Matte
• Color: Bronze With Black Lip
• Material: Aluminum
• Bolt Pattern Inch: 6x5.31
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x135
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2004-2026 Ford F-150
