KMC Wheels XD862 Raid 20 Inch Wheel (MPN: XD86221068418N)

Durable 20 inch wheel designed for performance and style.

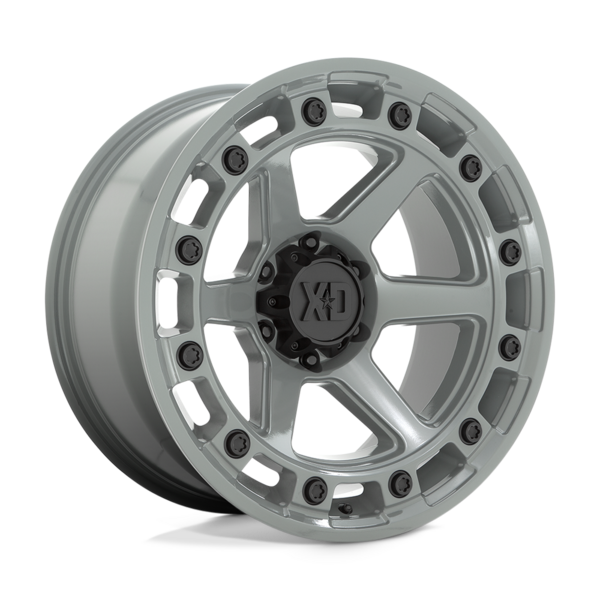

The KMC Wheels XD862 Raid is a robust 20 inch wheel designed for trucks and SUVs, featuring a 10 inch width and a 6 x 139.7 millimeter bolt pattern. Constructed from a single piece of cast aluminum, this wheel offers a gray finish that enhances its aesthetic appeal while ensuring durability. With a load capacity of 2500 pounds, it is engineered to support heavy-duty applications without compromising performance.

This wheel includes a 60 degree conical seat lug design and a center bore of 106.10 millimeters, making it compatible with various tire pressure monitoring systems (TPMS). The XD862 Raid accommodates a maximum tire diameter of 42 inches, providing versatility for different tire sizes. The 6 spoke design not only adds to its visual impact but also contributes to its structural integrity, making it a reliable choice for off-road and on-road driving conditions.

KMC Wheels has a reputation for producing innovative designs that cater to both lifted and lowered vehicles. The XD862 Raid is no exception, combining functionality with style, and is equipped with an XD Series logo center cap for added branding. This wheel is backed by a lifetime structural warranty, ensuring long-lasting performance and peace of mind for users.

Features

• Gray Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD86221068418N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Painted
• Color: Gray
• Material: Aluminum
• Bolt Pattern Inch: 6x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 106.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2004-2012 Chevrolet Colorado
• 2000-2018 Chevrolet Silverado 1500
• 2020-2021 Chevrolet Silverado 1500
• 2023-2026 Chevrolet Silverado 1500
• 2019-2019 Chevrolet Silverado 1500 LD- Old Model
• 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
• 2019-2019 Chevrolet Silverado 1500- New Model
• 2022-2022 Chevrolet Silverado 1500- New Model
• 2000-2006 Chevrolet Suburban 1500
• 2000-2006 Chevrolet Tahoe
• 2004-2012 GMC Canyon
• 1985-1991 GMC Jimmy
• 1975-1978 GMC K15
• 1975-1978 GMC K15 Suburban
• 1970-1974 GMC K15/K1500 Pickup
• 1979-1986 GMC K1500
• 1980-1986 GMC K1500 Suburban
• 2007-2018 GMC Sierra 1500
• 2020-2021 GMC Sierra 1500
• 2023-2026 GMC Sierra 1500
• 2007-2007 GMC Sierra 1500 Classic
• 2019-2019 GMC Sierra 1500 Limited- Old Model
• 2022-2022 GMC Sierra 1500 Limited- Old Model
• 2019-2019 GMC Sierra 1500- New Model
• 2022-2022 GMC Sierra 1500- New Model
• 1987-1987 GMC V1500
• 1987-1991 GMC V1500 Suburban
• 2000-2015 GMC Yukon
• 2015-2015 GMC Yukon XL
• 2005-2014 GMC Yukon XL 1500
• 2007-2014 Toyota FJ Cruiser
• 2001-2006 Toyota Sequoia
• 2001-2023 Toyota Tacoma
• 2000-2006 Toyota Tundra
• 2024-2026 Toyota Tundra
