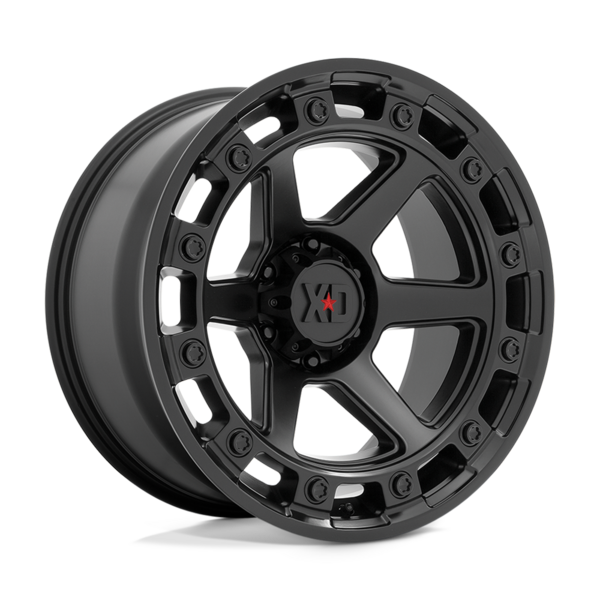

KMC Wheels XD862 Raid 20 Inch Wheel (MPN: XD86221063718N)

Durable satin black aluminum wheel designed for performance and style.

The KMC Wheels XD862 Raid is a robust 20 inch wheel designed for trucks and SUVs, featuring a 10 inch width and a -18 millimeter offset. Constructed from a single piece of cast aluminum, this wheel offers a satin black finish that enhances its aesthetic appeal while ensuring durability. With a load capacity of 2500 pounds, it is engineered to support heavy-duty applications and is compatible with Tire Pressure Monitoring Systems (TPMS). The wheel's design includes a 6 spoke configuration and a center bore of 87.10 millimeters, making it a versatile choice for various vehicle setups.

This wheel is designed with a 6 x 135 millimeter bolt pattern, providing a secure fit for a range of vehicles. The 60 degree conical seat lug nut design ensures proper installation and stability during operation. Additionally, the XD Series logo center cap adds a distinctive touch to the overall look of the wheel. With a maximum tire diameter of 42 inches, the XD862 Raid accommodates larger tires, enhancing off-road capabilities and performance.

KMC Wheels has a reputation for producing innovative designs that cater to both lifted and lowered vehicles. The XD862 Raid exemplifies this commitment to quality and style, making it a reliable choice for those seeking to enhance their vehicle's performance and appearance.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With XD Series Logo Center Cap

Specifications

• Manufacturer: KMC Wheels
• Manufacturer Part Number: XD86221063718N
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 6x5.31
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x135
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: XD Series Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2004-2026 Ford F-150
